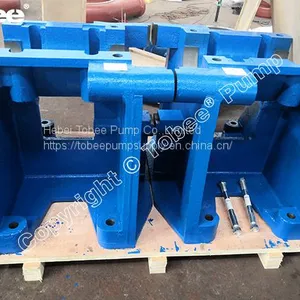

Base: U-steel
Bearing: ZWZ, SKF, NSK, TIMKEN
Shaft: 40CrMo, SS316L
Mechanical seal: Burgmann
Packing seal: Asbestos fibers+mica, PTFE
Expeller seal: High chrome
Casing: HT250, QT500, Stanless Steel, Chrome alloy etc
Wetted parts: High chrome, Rubber, Polyurethane, Ceramic etc
Slurry Pump Spare and Wearing Parts are an unavoidable cost associated with operating centrifugal slurry pumps, the primary slurry pump parts included impeller, volute, frame plate liner insert, throatbush and bearing assembly etc., TOBEE® provides replacement parts for Warman pump spare parts and stock a range of slurry pump wetted end parts which have been developed for abrasive applications in mines, quarries, sand and gravel etc.
The Main Parts for Slurry Pump Spare and Wearing Parts:
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Tobee® Metal Slurry Pump Parts are manufactured to the highest degree of mechanical integrity through the use of accurate 3-D modeling. Tobee uses the latest SolidWorks and FaroArm technology to design precise slurry pump parts at the beginning of our manufacturing process, and inspect and verify those parts before shipping. Tobee cast slurry pump parts can handle the toughest abrasive applications, and adhere to all relevant ASTM standards. Our most popular 27-28% high chrome metallurgy has a guaranteed 650+ Brinell hardness. A variety of alternative metallurgies are available for more corrosive applications.
Slurry Pump Parts Range:
• Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
• Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66
• Synthetic rubber materials code: S01, S02, S10, S12, S21, S31, S42, S44, S50
• Polyurethane materials code: U01, U38
• Shaft material: 45#, 40CrMo, SS304, SS316
• Shaft sleeve material: SS410, SS420 SS304, SS316, Ceramic
• Lantern ring material: SS304, SS316, PTFE
• Bearing housing/ end cover material: G01, D21
• Expeller, Expeller ring: HT250, A05
• Packing: Q05, Q21, Q22, X06
• 100% interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel pumps, AF/AHF froth slurry pumps, MCR mill circuit pumps etc
Slurry Pump Parts List:
| Basic Part Number | Description | Basic Part Number | Description |
| 001 | Adjusting Screw | 080 | Stepped Washer |
| 003 | Base | 081 | Keeper Plate |
| 004 | Bearing Housing | 083 | Throatbush |
| 005 | Bearing Assembly | 085 | Throatbush Cotter |
| 008 | Bearing Sleeve | 089 | Bearing Seal |
| 009 | Bearing | 090 | Shaft Seal |
| 011 | Clamp Washer | 092 | Sump Pump Casing |
| 012 | Clamp Bolt | 102 | Sump Pump Column |
| 013 | Cover Plate | 108 | Piston Ring |
| 015 | Cover Plate Bolt | 109 | Shaft Sleeve O-Ring |
| 017 | Cover Plate Liner | 110 | Volute Liner |
| 018 | Cover Plate Liner – Throatbush |
111 | Packing Ring |
| 019 | Sump Pump Mounting Plate | 112 | Throatbush |
| 021 | Impeller – Two Vanes Open | 114 | Impeller – Six Vanes Open |
| 023 | Cover Plate Liner Stud | 116 | Sump Pump Strainer |
| 024 | End Cover | 117 | Shaft Spacer |
| 025 | End Cover Shim | 118 | Lantern Restrictor |
| 026 | Frame Plate Liner Stud | 122 | Seal Ring |
| 027 | End Cover Set Screw | 124 | Volute Cover Seal |
| 028 | Expeller | 125 | Volute Frame Seal |
| 029 | Expeller Ring | 126 | Gland Clamp Bolt |
| 032 | Frame Plate | 127 | Impeller – Five Vanes Open |
| 034 | Frame Plate Bolt | 130 | Flange |
| 036 | Frame Plate Liner | 131 | Gravel Pump Bowl |
| 039 | Frame Plate Liner Stud | 132 | Discharge Joint Ring |
| 040 | Frame Plate Liner Insert Bolt | 134 | Clamp Ring |
| 041 | Frame Plate Liner Insert | 135 | Clamp Ring |
| 043 | Frame Plate Liner | 137 | Impeller – Three Vanes Closed |
| 044 | Gland | 138 | Grease Cup Adaptor |
| 045 | Gland Bolt | 143 | Volute Seal Holder |
| 046 | Grease Retainer | 144 | Volute Seal Holder Stud |
| 049 | Impeller – Eight Vanes Closed | 145 | Impeller – Four Vanes Closed |
| 051 | Impeller – Two Vanes Open | 147 | Impeller – Five Vanes Closed |
| 052 | Impeller – Three Vanes Open | 154 | Sump Pump Discharge Pipe |
| 053 | Impeller – Eight Vanes Open | 179 | Shaft Sleeve Spacer |
| 056 | Impeller – Four Vanes Open | 184 | Sump Pump Flinger |
| 058 | Impeller – Six Vanes Closed | 190 | Suction Cover |
| 060 | Intake Joint Ring | 191 | Impeller – Eight Vanes Open |
| 061 | Labyrinth Locknut | 204 | Discharge Joint |
| 062 | Labyrinth | 206 | Sump Pump Impeller |
| 063 | Lantern Ring | 217 | Impeller O-Ring |
| 064 | Impeller Sealing O-Ring | 221 | Flange |
| 066 | Motor Support Bolt | 239 | Release Collar |
| 067 | Neck Ring | 241 | Lip Seal Gland |
| 070 | Shaft Key | 290 | Sump Pump Spacer |
| 073 | Shaft | 292 | Door Clamp Plate |
| 075 | Shaft Sleeve | 322 | Sump Pump Suction Pipe |
| 076 | Shaft Sleeve – Long Type | 360 | Mechanical Seal Adaptor |
| 078 | Stuffing Box | 424 | Mechanical Seal Shaft sleeve |
| 079 | Expeller Ring Stud |
When it comes to slurry pumping, it is not a question of whether or not you will need slurry pump parts, it is a question of when. Slurry pump parts from Tobee provided to their customers are just more than slurry pump parts for severe duty applications, Tobee provides adding value by meeting the changing needs of our customers. We are willing to work with you to fix your pump problems. Tobee proudly manufactures thousands of slurry pump parts which are fully fit for Warman, Metso, Goulds, GIW, and other OEM pumps. The maintenance of slurry pumps can be categorized into three main areas: slurry pump wet end maintenance, drive end maintenance and shaft seal maintenance, so our slurry pump parts are categorized according to this thinking.
