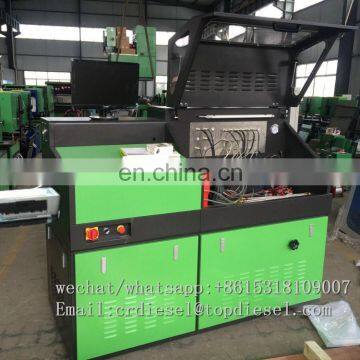

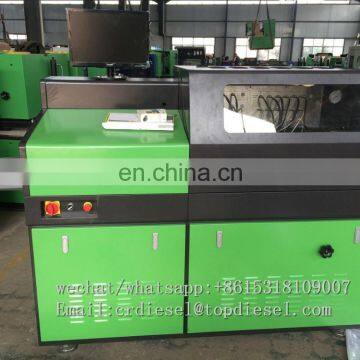

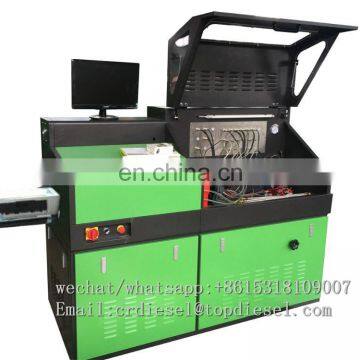

CRS708 Common Rail Injector and Pump HEUI EUI EUP TEST BENCH
US$ 5,000 - 5,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
CRS708
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR816 10 Bar-6000 Bar High Pressure Diesel Fuel Common Rail Injector and Pump Injection Test Bench CR816US$ 6,500 - 6,500MOQ: 1 Set -
High Quality CR819 Common Rail Injector and Pump Test Bench With HEUI CAT320D HEUI PumpUS$ 8,000 - 8,000MOQ: 1 Set
-
High Pressure CR738 Common Rail Injector and Pump Test Bench Common Rail Injector Repair Machine With EUI EUP HEUI CR738US$ 11,000 - 11,000MOQ: 1 Set
-
Automobile CR825 All In One Line Multifunctional Common Rail Diesel Fuel Injector Pump Testing EquipmentUS$ 18,000 - 18,000MOQ: 1 Set
-
Taian Dongtai Common Rail Pump and Injector Test Bench CR815US$ 6,400 - 8,300MOQ: 1 Set
Brand Name
DONGTAI
Place of Origin
Shandong, China
Model Number
CRS708
Power
Electronic
Product Description
CRS708 common rail injector and pump HEUI EUI EUP TEST BENCH
CRS708 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, It can test common rail pump,common rail injector at same time.
Function:
1,Pump testing: pump delivery, pressure,PVC working status, leakage of itself,
2,Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)
3,it can test pressure sensor,and DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
Technical parameters:
Motor power |
7.5KW, 11KW, 15KW, 18.5KW (optional) |
Electronic power |
3 PHASE 380V or 3 PHASE 220V |
Motor speed |
0-4000RPM |
Pressure adjustment |
0-2000bar |
Flow testing range |
0-600ml/1000times |
Flow measurement accuracy |
0.1ml |
Temperature range |
40+-2 |
Cooling system |
Fan or forced cooling(optional) |
Characteristic:
1.Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 19" LCD
3. Data can be searched, printed and made into database.
4. It can provide 0~2000 bar of rail pressure.
5. Oil temperatue is controlled by computer
6. Drive signal can be controlled.
7. Protection function of short-circuit.
8. Rail pressure can be tested in real time, it contains the high-pressure protection function.
9. Pulse and frequency of the injector drive signal can be adjusted.
10.Injection time can be setted.
11.Precise measurement, easy operation, low noise.
12. fulfill the remote assistance by internet and make the maintenance easy to operate.
System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors.
Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
It also can test 6 common rail injectors at same time.
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors.
Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
It also can test 6 common rail injectors at same time.
CRS708 has all common rail pump, injector data inside.
CRS708 COMMON RAIL TEST BENCH is mainly test for common rail pump and injector. Also it is continuous
fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The
electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a
high level of reproductivity of the measured valuse.
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail
system, can finish the high-pressure common rail system functional testing.
Details Images
Delivery
Company Profile
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
