Help CenterPlate Bearing Tester
Related Products
-
NF P94 Static Plate Load Tester Ev2 TesterUS$ 5000 - 7000MOQ: 1 Set -
Ev2 Static Plate Load TesterUS$ 5000 - 7000MOQ: 1 Set
-
Skid Resistance and Friction Coefficient Tester BS StandardUS$ 600 - 800MOQ: 1 Set
-
Los Angeles Abrasion Testing Machine AASHTO ASTMUS$ 1400 - 2000MOQ: 1 Set
-
Accelerated Polishing Machine EN 1097-8 ASTMUS$ 1800 - 2500MOQ: 1 Set
Description

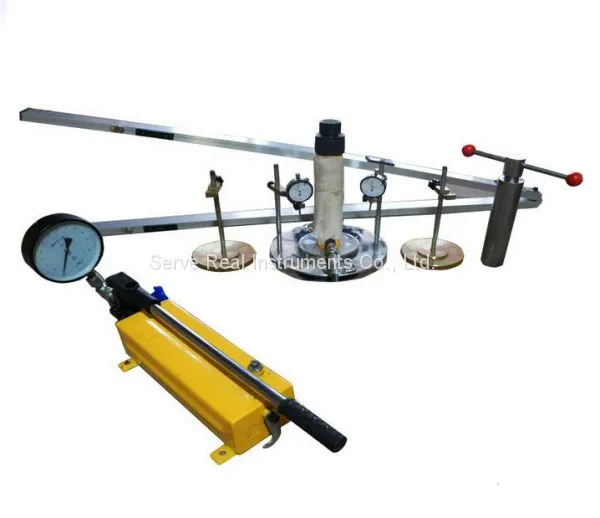

This Plate bearing Tester is used to test the bedding value of compacted pavement which constructed of coarse aggregate, fine aggregate, also can test the deformation modulus of uniform foundation soil. It's comprised of loading platen, hydraulic jack, manual oil pump, measuring beam, dial gauge.
Technical Specifications
Loading plate diameter |
300mm |
Jack loading range |
0-100KN |
Jack stroke |
160mm |
Test bridge span |
3000mm |
Manual oil pump rated pressure |
60MPa |
Pressure testing range |
0-25MPa |
Displacement testing range |
0-10mm |
#15 machine oil, ambient temperature 5℃- 45℃ | |
Standard configuration
1 |
Manual hydraulic pump+jack+hose |
1each |
3 |
Bearing plate 300mm(others optional 300~1000mm) |
1pc |
4 |
Displacement dial gauge |
2pcs,10mm/0.01mm |
5 |
Oil pressure gauge |
1pc |
6 |
Test bridge assembly |
1set |
8 |
Extension rod for jack( 1*40mm，1*90mm, 1*120mm,1*160mm,2*60mm ) |
1 each |
9 |
Aluminum carrying case |
2pcs |
