Home > Instruments & Meters > Test Instrument > Test Machine > Trailor-mounted Falling Weight Deflectometer

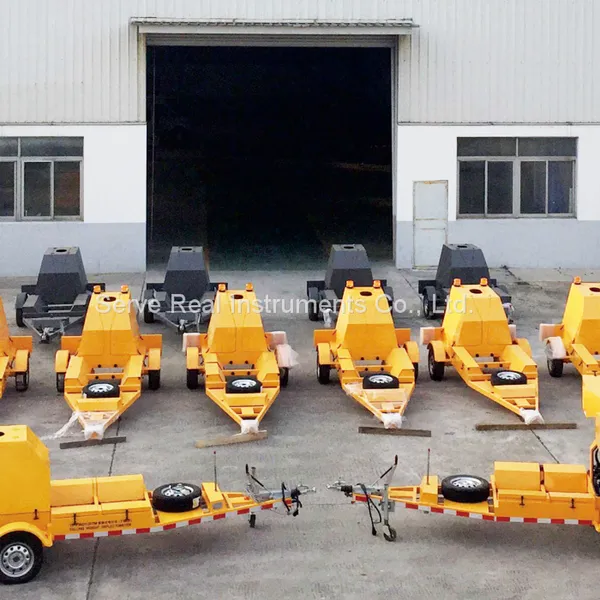

Trailor-mounted Falling Weight Deflectometer

US$ 35000 - 40000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SRI

Place of Origin:

China

Model Number:

JT-FWD-01

Contact Supplier Request Quote Chat Now

Wuxi Serve Real Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

2020 days

Product Details
Company Profile
Contact Us

Brand Name SRI

Place of Origin China

Model Number JT-FWD-01

Specifications

Braking device	Equipped with inertia brake
Traction device	Standard trailer coupler with 50mm trailer ball
Signaling device	With steering, braking, reversing, width display combination lamps
GPS function	With GPS module (can detect positioning)
Safety warning coating	Equipped with eye-catching safety warning reflective signs
Engineering lights	Equipped with engineering lights
Hammer lifting method	Hydraulic lifting hammer
Power supply	Tractor charging system provided
Deflection sensor range	-3500um~+3500um
Number of deflection sensors	Standard 9, 1-23 optional
Deflection test accuracy	better than 2%
Deflection resolution	0.1um
Deflection repeatability	The standard deviation of 40 test data at the same point is not more than 3μm
Maximum load	120/150kN (upgradeable to 300kN)
Load range	0~120/150kN
Load accuracy	1%
Load resolution	0.1kN or 1kPa
Temperature range	-50~100℃
The temperature measurement accuracy should be	0.5%
Emergency lifting device	Equipped with manual hydraulic lifting device
Temperature resolution	0.1℃
DMI measurement accuracy	1%
DMI resolution	0.1m
Front distance display	Real-time display of measuring point spacing
Test time per point	15~20s
Loading disk format	300mm diameter 4-point sector disc
Laptop	Windows7/XP operating system
Software function	Calculation with Beckman Beam Data Conversion System Automatically find the best conversion data Single point deflection distribution statistics Calculation and data export representing deflection data normalization Evaluation of load transfer ability of joints Evaluation of plate voids and analysis of stiffness composition Automatically record the position station of each test point Temperature correction possible
Walking speed	1~140Km/h
Safety locking mechanism	Equipped with safety locking mechanism
Bearing method	Carrier plate automatic locking mechanism

Product Tags: Trailor-mounted falling weight deflectometer , Road test equipment , Highway equipments , geotechnical instrument , Soil test instruments
