Soil Non-nuclear Density Gauge, Soil Test Equipment

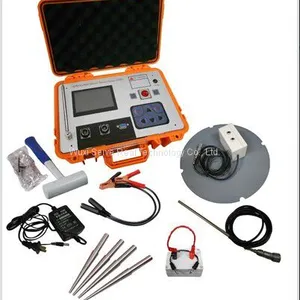

Soil Non-nuclear Density Gauge, Soil Test Equipment thumbnail-1
Soil Non-nuclear Density Gauge, Soil Test Equipment photo-1
US$ 6000 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SRI
Place of Origin:
China
Model Number:
SDG-200
Contact Supplier Request Quote Chat Now
Wuxi Serve Real Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI, SHENZHEN,NINGBO, QINGDAO
Delivery Detail:
2020 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SRI
Place of Origin China
Model Number SDG-200

Description


The Non-Nuclear Soil Density Gauge is used to test the density and Moisture content of roadbase and foundation compacted soil, it can be operated in anywhere of the world without any safety problem. It can test and indicate dry/wet density, moisture content, compaction percentage. It uses high RF between the electrodes to test the soil dielectricity and density, then compare with the dielectricity with the “ soil module”, which is a specific module including different soil type.

It adopts point-point wireless frequency to guarantee accuracy. The test result won’t be effected by the soil uniformity. It features easy in operation, rapid test, bigger test interval distance, more accuracy test results.


Features


Can replace sand replacement, drying method, no nuclear source

GPS function, accuracy to 5m, reach ISO standard.

No special training need for operation

No special requirements for storage

Friendly HMI, easy in operation, cost-efficiency

Fast, reliable, light, stable, high accuracy, good repeatability

Point-point RF technology

2-3 mins indicate test results

English operation menu

USB interface for rapid & easy data transmission

4.3 inch 480X272 high resolution display


Technical specification


1. Moisture test range: standard compacted soil field range

2. Dry density accuracy: ±3% Of standard value

3. Moisture accuracy: ±2% of standard test value

4. Max test depth: 30cm

5. Operation ambient temperature: 0-50 degree C

6. Operation ambient humidity: 5-90%RH

7. Battery: 12V/4.0Ah rechargeable battery

8. Battery standby time: 24hrs

9. Display: 4.3 inch, 480X272 resolution, 16K true color

10. Main machine overall size: 343x305x152(mm)

11. Net weight: main machine 5kg, accessories: 1.8kg


Product Tags: Soil Non-nuclear Density Gauge , Pavement test equipment , Highway test equipments
