Pillow type safety chuck STO/W28

Pillow type safety chuck STO/W28

Safety chuck is a kind of holding shaft roller device, it can be divided into flange type safety chuck, pillow type safety chuck, VT type safety chuck, sliding safety chuck and pneumatic safety chuck. This safety chuck can be mounted in horizontal and vertical.

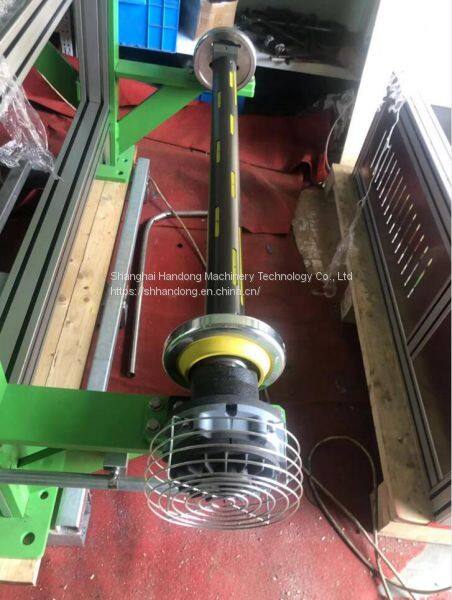

This pillow type safety chuck is also called pedestal safety chuck. Reeling safety chuck is used to unwind and rewind roll materials. If needed, it can be connect with motor for driving rotating or driven rotating. It also can be match with air shaft, pneumatic brake to adjust material's tension.

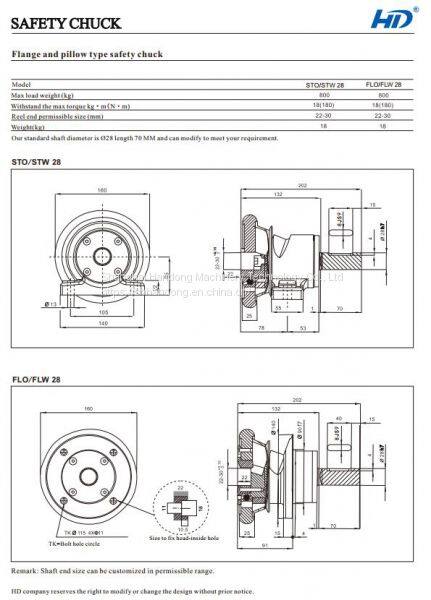

Following is the drawing and technical data of this winding and unwinding safety chuck:
