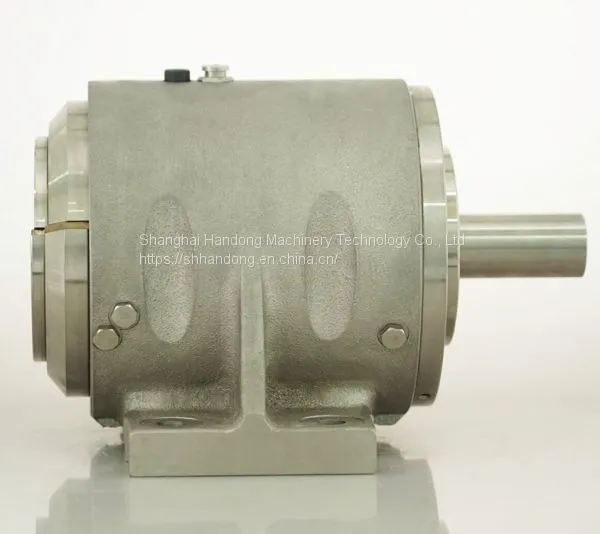

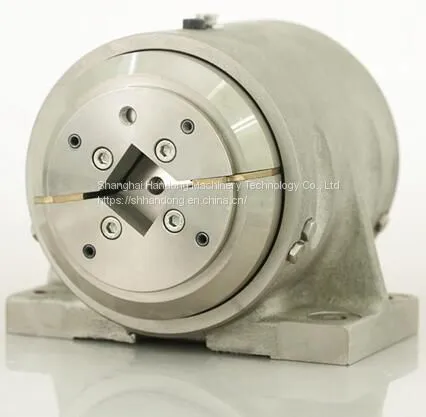

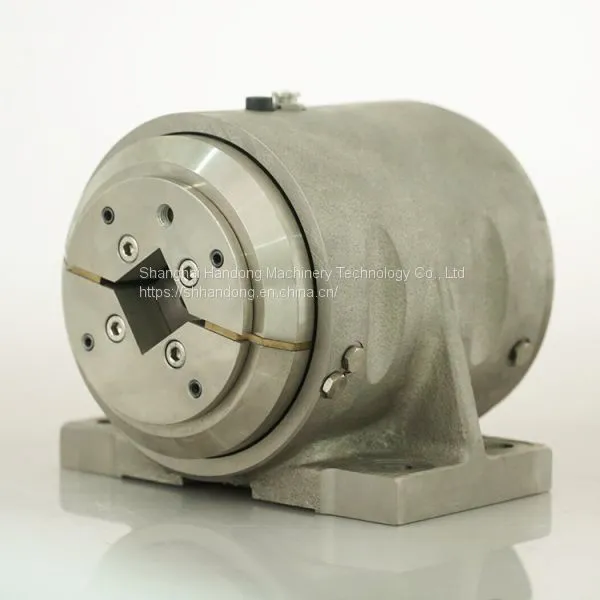

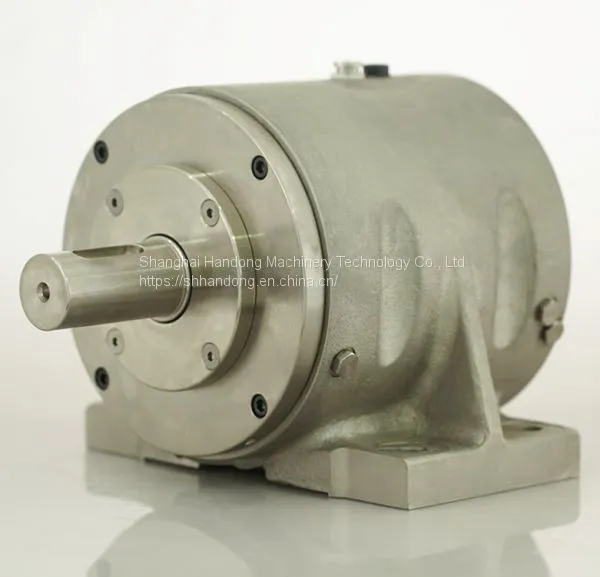

Automatic pneumatic safety chuck
Automatic pneumatic safety chuck is driven by air pressure, it can be move left and right automatically. After input air pressure, this safety chuck reel mouth will be open automatically, then the shaft roller can be putted into it, when exhausting air pressure, this safety chuck will be closed, so as to make sure the shaft roll will not slippage and rotating in safe.

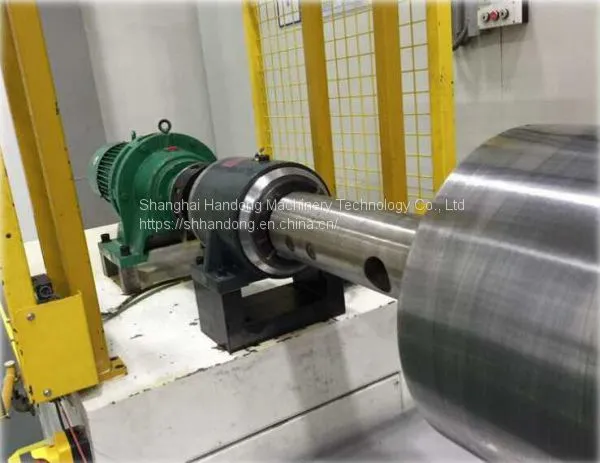

This safety chuck is in couple, one without shaft, another with shaft, the shaft can connect with customer's motor, so as to transmit the power to the safety chuck. Automatic design, will help many enterprised reduce labor force, improve working efficience and prolong the motor service life.

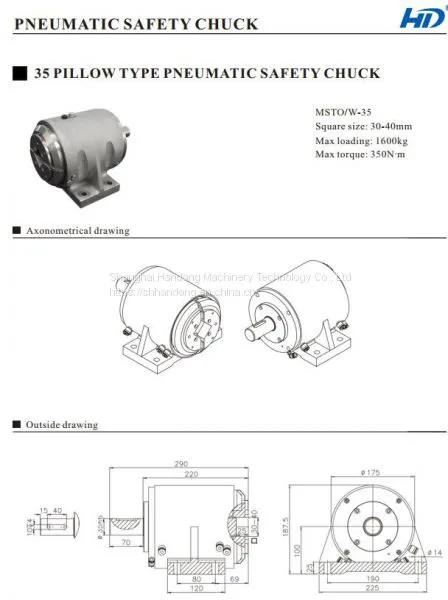

Following is the drawing and technical data of this pneumatic safety chuck:
