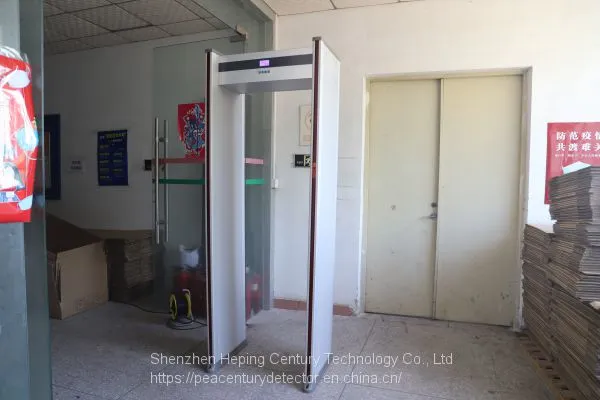

Temperature Measurement Walk Through Metal Detector Against Corona Virus

Temperature Measurement Walk Through Metal Detector Against Corona Virus thumbnail-1
Temperature Measurement Walk Through Metal Detector Against Corona Virus thumbnail-2
Temperature Measurement Walk Through Metal Detector Against Corona Virus thumbnail-3
Temperature Measurement Walk Through Metal Detector Against Corona Virus photo-1
Temperature Measurement Walk Through Metal Detector Against Corona Virus photo-2
Temperature Measurement Walk Through Metal Detector Against Corona Virus photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PEACENTURY
Place of Origin:
China
Model Number:
HPC-E18 Temperature Measurement walk through metal detector
Contact Supplier Request Quote Chat Now
Shenzhen Heping Century Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PEACENTURY
Place of Origin China
Model Number HPC-E18 Temperature Measurement walk through metal detector
Temperature Range Temperature Measurement walk through metal detector
DETECTING ZONE:6ZonesPOWER:<20W
DOOR MATERIAL::PVC MaterialCOLOR:Siver, Or Black
POWER SUPPLY:AC90V-250V 50HZ-60HZWEIGHT:75kg
DIMENSION:2200mm (H) *800mm (W)*500mm (D)CHANNEL DIMENSION:2010mm (H) *700mm (W)*500mm (D)
OPERATING ENVIRONMENT:-20 ° C-+45 ° CSENSITIVITY:High Sensitivity
LEAD TIME:Delivery ImmediatelyPORT:Shenzhen


Temperature measurement walk through metal detector against Corona Virus


Technical specification:
Electrical current: AC100V~240V 50/60Hz
Power: 10W
Work environment: -20℃~+45℃
Gross Weight: 70kg
Outer frame: 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame: 2000mm (h) X 700mm (w) X 522mm (d)


Characteristic:



1.Temperature measurement founction
2.Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
3.6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
4.Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
5.Shock proof to avoid false alarm
6.Sound and light alarm
7.Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
8.Tamper-Proof: operate program is protected by password.
9.Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
10.Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
11.Harmless to pregnant woman and heart pacemaker



Display.LCD Display (walk throough metal detector / door frame metal detector)

Power self-checking

Function

.Upon starting up ,the system will automatically diagnose whether the operation is ok or not

.Automatically display the content of system malfunction

Operation MethodChinese/English menu function for choice
SpeedThe fastest speed: 100 people per minute .Detection speed of user-defined adjustment.
Backlight TimeAdjustable continual display time: 0 to 99 Seconds
CalendarMinute , Hour , Day Month and year .
Detecting ZoneSingle zone for your option according to requirements(default value: 6 zones )
Zone Performance

1) Partition zone of Digital metal detector according to the body structure

2) Networking with overlapping detection methods ,eliminating the detection region of “weak zones” and “shadow area”

3) Adopting the single frequency formed very uniform magnetic area density in the excitation technique detecting zones

4) Strong penetration, high sensitivity and stable performance.

Alarm Indication

1) Alarm time: 1 to 25 seconds.

2)Around the goal post ,can be directly show inspection zones through the LED alarm light ,and accurately show the corresponding height of the body hidden prohibited items.

Sensitivity Adjustment

1).Can evenly adjust 100 degree sensitivity of every zone

2).Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on

Strong anti-jamming capability

1)Adopting the advanced interactive receiving and transmitting

2) Automatically detecting and tracking by temperature and humidity and compensation technique to be available to different environment and climate, significantly increased anti-jamming capability.

Safety capability:

1) Double password protection, only allowing authorized user to operate. High safety.

2) Restoring the default value when system error because of improper operation.

3).Uninterruptible power protection system using the battery working 2 to 8 hours , power failure protection system has a parameter (optional)

4) Placed in the top of the host machine power supply can operate by remote control or power control panel working on the machine. Waterproof, moistureproof and better heat dissipation.

5).Has no harm on those who have human cardiac pacemakers and pregnant women, as well as magnetic floppy disk, tape, etc.

Networking function(optional)

.Using RJ-45 network interface, which has no limit in distance ,and improved the defects of the short distance of RS232 network.


Configure of dedicated PC software to support remote parameter setting / inquiry function so that we fully know work safety of metal detector gate.

Counting FunctionIntelligent recording number of people and alarm counting that can automatically record the number of people and times of alarm.
Alarm RecordingTimes of alarm. Anytime can be check.
Waterproof designsuse of imported waterproof synthetic material produced by precise technology synthesis
Placecan be set using the occasion required random mode (such as airports, entertainment venues, the Court)
Online helpHelp system placed inside. More easy and intuitive to operate .
Power supply
 		AC85V -264V/50-60HZ
Consumption power30w. Low power consumption and; Low radiation
Overall dimension2200mm(height)X800mm(width)X510mm(depth)
Tunnel dimension2000mm(height)X700mm(width)X500mm(depth)
Weight of the whole machineApproximately 70kg
Workplace environment-20°C+45°C
Standard

Inspection reports of the Public Security Department

.The relevant trademark

.Products have related the appearance of patent and utility model patents, so intellectual property disputes will not involve.

.It is harmless on people who have cardiac pacemaker , pregnant women as well as to magnetic floppy disc , magnetic tape and videotape.



Temperature measurement walk through metal detector against Corona Virus







Quality of our products:

1. First of all, we promised that all the products are brand-new.
2. Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
3. Thirdly, we package the products by superior high quality carton to ensure the completeness and low delivery loss.
4. If you find out any problem when receive the products, we are in charge of securing service.





Delivery Time:

1. We have thousands of products in stock. So, once payment confirmed, we will deliver your goods in 24 hours.





Payment:

T/T through HSBC Bank,Western Union


Welcome inquiry.  anya@peacentury.com

Whatsapp/Wechat: +86 17820602014

www.peacenturydetector.com
