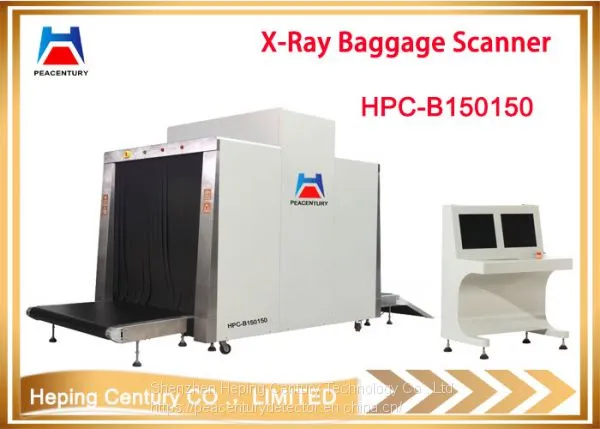

PEACENTURY Large Sizes Cargo X Ray Baggage Scanner 150150

PEACENTURY Large Sizes Cargo X Ray Baggage Scanner 150150 thumbnail-1
PEACENTURY Large Sizes Cargo X Ray Baggage Scanner 150150 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PEACENTURY
Place of Origin:
China
Model Number:
HPC-B150150
Contact Supplier Request Quote Chat Now
Shenzhen Heping Century Technology Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PEACENTURY
Place of Origin China
Model Number HPC-B150150
PRODUCT: X Ray Baggage Scanner TUNNEL SIZE: 1500(W)*1500(H)mm
X RAY LEAKAGE: CONVEYOR MAX LOAD: 500 KGS
FILM SAFETY: ISO 1600 Film-safe PENETRATION: 34mm Steel
ANODE VOLTAGE: 100-160KV SYSTEM POWER: 220VAC (±10%) 50±3HZ
PACKGAE: Plywood Case


PEACENTURY Large sizes cargo X ray baggage scanner 150150





General Specification
Tunnel Size 1500(W)*1500(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 200kg Dose per Inspection
Resolution Spatial resolution Level: dia1.0mm, Vertical: dia1.0mm
Penetrate resolution Dia 0.254mm Penetration ≥ 38-40mm Steel
Film Safety Guarantee 1900Film X-ray Leakage
Multi-energetic distinguish objects organic objects in orange, inorganic objects in blue, mixture in green High-energy/low energe switch from high energy to low energy



Advantages:
1. Famous brand spare parts
a. Hamamatsu brand detector from Japan
2. Protective cover on lead curtain to avoid lead pollution
3. Sound and light alarm
4. Local network supported



General Specification

Tunnel Size: 1000(W)*800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Dose per Inspection Resolution Spatial resolution: Level: Dia1.3mm, Vertical: Dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage:



X-ray Generator

Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%



Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening , reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder



Installation Data

Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power: 220VAC(± 10%)50± 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise:



PEACENTURY Large sizes cargo X ray baggage scanner 150150
