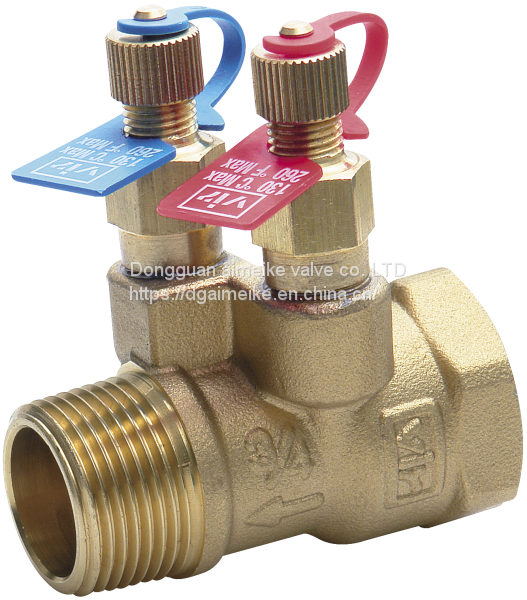

9400 DN015-1/2 Ball Water Valve Design Standard Complies With BS7350

DZR brass flowmeter

Sizes: DN015-1/2 "to DN050-2"

External / Internal Thread ISO7 / 1 Rp

(Internal thread standard of DN15 and DN20 is ISO 228/1)

Olive-shaped seal ring and nut mounting kit for European copper pipes to EN1057:

● DN15, kit for 15mm pipe (internal thread only)

● DN20, kit for 22mm tube (internal thread only)

Design standard complies with BS7350

Kvs tolerance range is ± 3% (test standard according to BS7350 standard)

Meet the Russian GOST standard

PN25 (max. Pressure 25bar at 100 ° C, max. 20bar at 130 ° C)

PN16 (with olive seal ring and nut mounting kit (max. 16bar at 30 ° C, 5bar at 120 ° C)

Working environment:

● Medium (water): -10 ° C to 130 ° C

(Maximum temperature to 120 ° C with olive seal and nut mounting kit)

Below 0 ° C only for aqueous media (with antifreeze)

Above 100 ° C is only suitable for aqueous media (with anti-boiling additive)

Product Highlights:

1. High-grade brass precision forging, the valve parts are compact:

2.Kvsu21m3/h is suitable for any size fan tray camp:

3. Straight water flow will never block the slag:

4. Large water circulation capacity, higher than traditional valve 3 or more

5. The valve is closed tightly and there is no internal leakage.

6. The drive will be powered off automatically after the valve is closed/opened. long lasting:

7. The closed structure is subject to gas intrusion. The motor runs reliably:

8. Can be mounted upright or horizontally

9. The failure rate is extremely low.
