Home > Industrial Equipment & Components > Bearing > Slewing Bearing > Rotary Table Roller Bearing YRT50
EUR 1 - 10000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONB
Place of Origin:
China
Model Number:
YRT50
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
5 days
Related Products
-
Rotary Turntable Bearing YRT100EUR 1 - 10000MOQ: 1 Piece -
Good Quality Chinese YRT80 Rotary Table Bearing FactoryEUR 1 - 10000MOQ: 1 Piece
-
High Quality Good Price Axial and Radial Bearings YRT120EUR 1 - 10000MOQ: 1 Piece
-
China YRT150 for CNC Machine Tool Rotary TablesEUR 1 - 10000MOQ: 1 Piece
-
INA YRT180 Slewing Bearings/axial and Radial Bearings YRT180EUR 1 - 10000MOQ: 1 Piece
Brand Name
HONB
Place of Origin
China
Model Number
YRT50
Feature
Other, Axial and Radial bearings
Seals Type
No seals
Outside Diameter
126, 126
Bore Size
50, 50
Gear Options
Nongeared

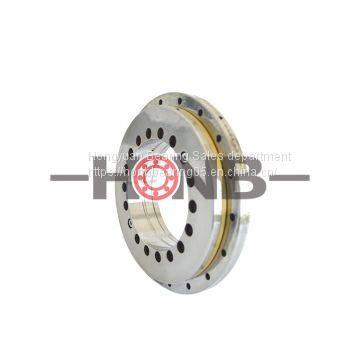

YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high stiffness and the Union loads with low speed such as index tables and revolving milling heads.See Fig
*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
HONB web:
| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit：mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT50 | 50 | 126 | 30 | 20 | 10 | 10 | 105 | 63 | 116 | 5.6 | 9 | 4.2 | 10 | 5.6 | 12 |
| Type | Screw connection QTY | Connect screws holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed5） | Friction Moment3） | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT50 | 2 | / | / | 12*30° | 8.5 | 38 | 158 | 28.5 | 49.5 | 600 | 2.5 | 1.6 |
