Home > Industrial Equipment & Components > Bearing > Slewing Bearing > Good Quality YRT325 Rotary Table Bearings
US$ 1 - 10000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONB
Place of Origin:
China
Model Number:
YRT325
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
5 days
Related Products
-
Good Price China YRT395 Axial and Radial Rotary Table BearingsUS$ 1 - 10000MOQ: 1 Piece -
YRT460 China YRT High Precision Rotary Table Bearings ManufacturersUS$ 1 - 10000MOQ: 1 Piece
-
YRT580 High Precision Axial and Radial BearingsUS$ 1 - 10000MOQ: 1 Piece
-
Good Quality YRT650 Rotary Table BearingsUS$ 1 - 10000MOQ: 1 Piece
-
Axial and Radial Slewing Bearing YRT850US$ 1 - 10000MOQ: 1 Piece
Brand Name
HONB
Place of Origin
China
Model Number
YRT325
Feature
Other, Axial and Radial bearings
Seals Type
No seals
Outside Diameter
450, 450
Bore Size
325, 325
Gear Options
Nongeared

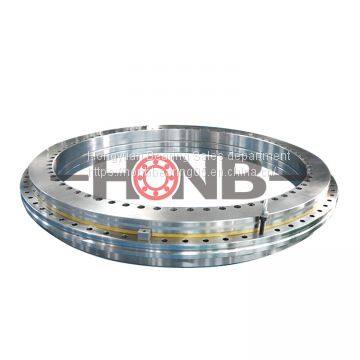

YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high stiffness and the Union loads with low speed such as index tables and revolving milling heads.See Fig
*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
Contact person: Anna Feng
Tel: +86 379 63086182
Fax:+86 379 63086177
Fax:+86 379 63086177
Mob: +86 13598495189
Whatspp: +86 13598495189
Whatspp: +86 13598495189
Skype: bearing3_01
| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit：mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT325 | 325 | 450 | 60 | 40 | 20 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| Type | Screw connection QTY | Connect screws holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed5） | Friction Moment3） | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT325 | 2 | M12 | 3 | 36*10° | 34 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 |
