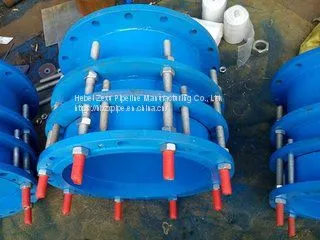

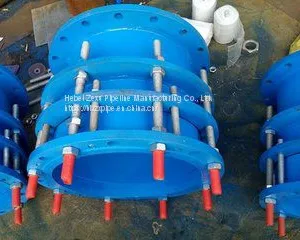

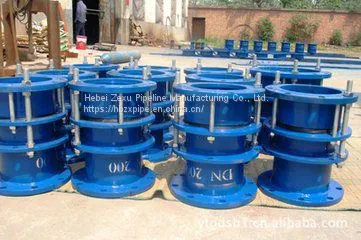

Flange Detachable Telescopic Joint Cast Steel

Functions and Uses

Force transfer joints are also called expansion joints, compensators, expansion joints and expansion joints. It can be divided into C2F double flange force transfer joint, CF single flange force transfer joint and CC2F detachable force transfer joint. It is composed of main parts such as body, sealing ring, cap, stretching and shortening pipe, etc. It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transmitted to the whole pipeline during work. This not only improves the working efficiency, but also protects the pumps, valves and other equipment.

Material: Q235 carbon steel, stainless steel, cast steel, ductile iron

Description

Flange detachable force transfer joint can be equipped with ball valves, dishes, check valves, smash valves and other large valves. It can also be used in power engineering circulation pipeline, condensate pipeline, petrochemical pipeline, sewage treatment pipeline and water supply and drainage pipeline. It can also be used in the corner of large caliber circulation pipeline. The effective compensation of corner pipeline is displacement and vibration, especially long-distance pipeline. Because the sealing between rigid connection flanges is easily affected by the flexibility of the pipeline itself, the use of force transfer joint can protect the pipeline very well. When the pipeline is cold and hot deformed, it has good compensation and release space.
