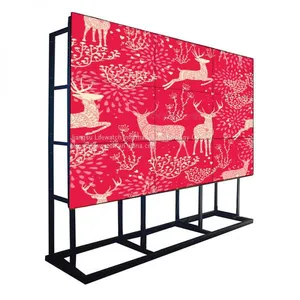

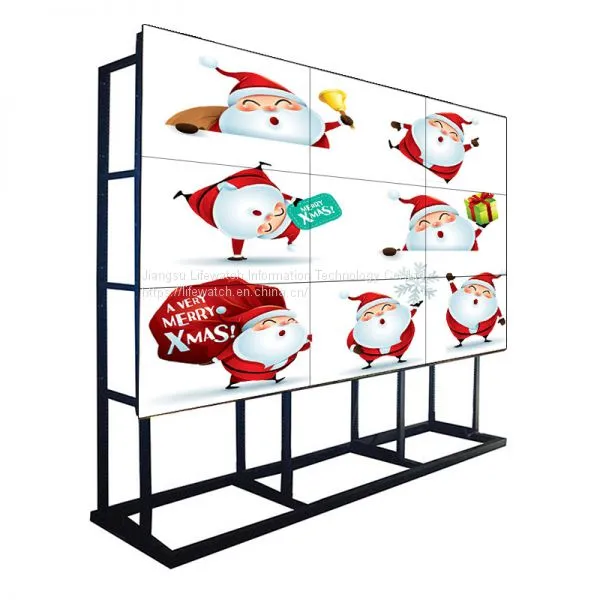

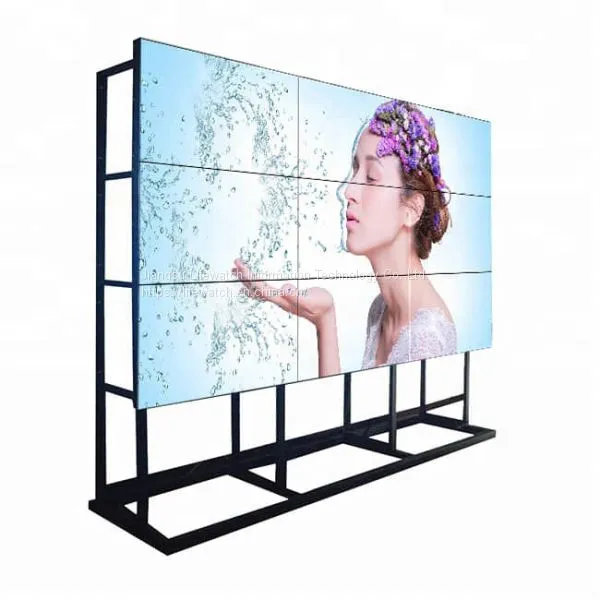

Help Center55 Inch 1.8mm Bezel 500 Nit LCD Video Walls
Related Products
Display |
Model |
LWV55SL |
LWV55SH |
Diagonal Size |
55" |
||
Type |
D-LED DID |
||
Pixel Pitch |
H/V: 0.53025mm |
||
Viewing Angle |
178°(H)/178°(V) |
||
Brightness |
500 Nit (Typ) |
700 Nit (Typ) |
|
Contrast Ratio |
4000:1 |
||
Aspect Ratio |
16:9 |
||
Response Time |
≤8ms(Gray to Gray) |
||
Physical Resolution |
1920×1080(FULL HD) |
||
Display Colors |
16.7M (8bit) |
||
Color Gamut |
72% |
||
Haze |
25%(Outer Haze 23%) |
||
Frame Width(T/B/L/R) |
1.15mm/0.55mm/1.15mm/0.55mm |
||
Bezel to Bezel |
1.7mm |
||
MTBF |
≥50,000 hrs |
||
|
Interface |
HDMI In |
1 |
|
DVI In |
1 |
||
VGA In |
1 |
||
DVI In/Loop Out( optional) |
1/2 |
||
CVBS In/Out |
1/1 |
||
RS232 In/Out(RJ45 Port) |
2/2 |
||
Audio Out(optional) |
1 |
||
Mechanical |
Outline Dimension(W*H*D) |
1213.5mm（47.788 "）*684.3mm (22.94")*120mm(4.72") |
|
Mount Type |
Rear Access/Front Access |
||
Base Stand Type |
Floor Upright/Moving |
||
Net. Weight |
40Kg(88.18 lbs.) |
||
Max.Combination |
15*15 |
||
Default Colour |
Black |
||
Environment |
Max. Consumption |
160W(540 Btu/hour) |
|
Electrical Ratings |
AC 100 ~ 240V (50/60Hz) |
||
Operating Temperature |
0℃(32℉) ~ 40℃(104℉) |
||
Operating Humidity |
20%-90% (Non-condensing) |
||
Storage Temperature |
-20℃(-4℉) ~ 65℃(149℉) |
||
Storage Temperature |
5%-90% (Non-condensing) |
||
