Home > Products > Patient Monitor > Multi Parameter Patient Monitor with 15 Inch with Six Parameters

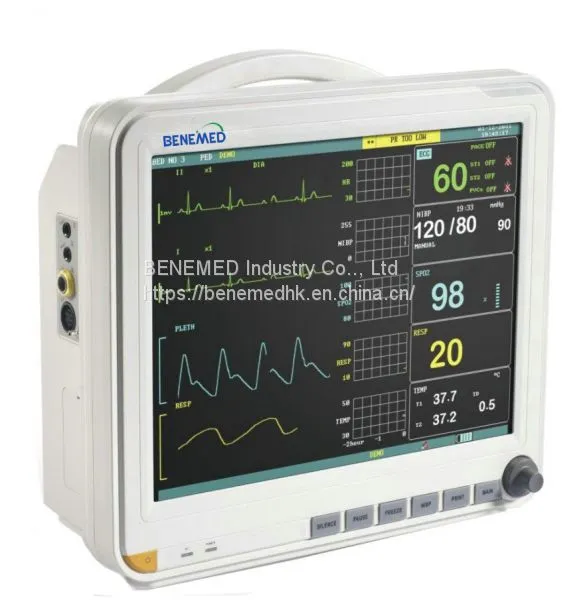

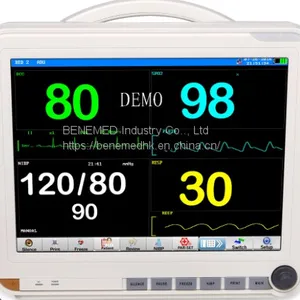

Multi Parameter Patient Monitor with 15 Inch with Six Parameters
- 500 Unit / Units per Month
- Zhengzhou
- T/T L/C Other
- 5 days
Product Details
Brand Name: | BENEMED | Place of Origin: | China | Model Number: | BenePM-15 |
Type: | Clinical Examination Aids |
Product Description
Features:
Parameters: ECG, SPO2, NIBP, HR, TEMP, RESP
Networkable with Central Monitoring System
720 hours trend data analysis
Anti-ESU, anti-defibrillator; RA-LL impedance Respiration
Compact design is convenient for mobile monitoring
Efficient resistance to interference of defibrillator and electrosurgical cautery
Real time S_T Segment analysis, pacemaker detection
OxyCRG Dynamic View display, Trend Coexist display, etc
13 type Arrhythmic Analysis, Multi-Lead ECG Waveforms Display in Phase
Built-in rechargeable battery with over 4 hour operating time
Optional: Et-CO2, IBP, Recorder, touch screen
ECG
Lead mode: 5 Leads(R,L,F,N,C or RA,LA,LL,RL,V)
Connection method:I,II,III,AVR,AVL,AVF,V
Lead Mode: 3 Leads (R,L,L or RA,LA,LL)
Connection method: I, II, III
Waveform: 2ch
Gain: 1/4, 1/2, 1, 2, AUTO
HR Range: Adult: 15~300bpm
Neo/Ped: 15~350bpm
Accuracy: ±1% or ±1bpm, which great
Resolution: 1bpm
Sensitivity: >200(uVp-p)
Differential input impedance:≥5MΩ
ST segment Monitoring Range
Measure Range:-2.0~+2.0mV
Measure Accuracy: -0.8mV~+0.8mV
Heart rate
Measuring range: 0~350bpm
Accuracy: ±1bpm
Resolution: 1bpm
Sensitivity: >200UVp-p
Respiration
Method: Impedance between R-F(RA-LL)
Differential Input Impedance: >2.5MΩ
Measuring Impedance Range: 0.3~3.0 MΩ
Base line Impedance Range: 200~4000Ω
Bandwidth: 0.1~2.5Hz
NIBP
Method: Oscillometric
Mode: Manual/Auto
Measuring Interval in AUTO Mode: 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
Measuring Period in STAT Mode: 5 Min
Pulse Rate Range: 40~240bpm
Alarm Type: SYS, DIA, MEAN
Resolution
Pressure: 1mmHg
Accuracy: Maximum Mean error: 5mmHg
Maximum Standard deviation: 8mmHg
SPO2
Display: Number of SPO2,waveform of capacity,Pulse
Measuring range: 0~100%
Resolution: 1%
Accuracy: 70~100% (±2%)
Alarm system: Audio-visual alarm
Pulse rate range: 0~300bpm
TEMP
Channel: 2
Measuring and Alarm Range: 0~50ºC
Resolution:0.1ºC
Accuracy: 0.1ºC
Actualization interval: about 1 Second.
Average Time Constant:<10 Second.
System
Display system: 15 inch high-brightness color display
Network with central station
Power supply:AC100V~250V,50Hz/60Hz
Optional Parameter: IBP,EtCO2,Recorder,Touch Screen,Central Monitoring
Size: 340mm×310mm×150mm
Weight: 4.5 kg
