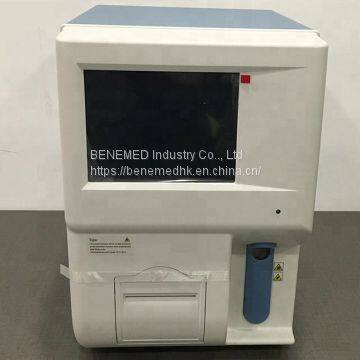

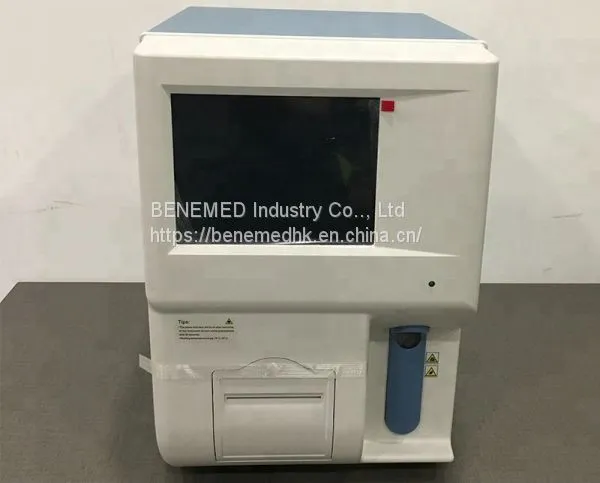

Help CenterLab Equipment Full Automatic Blood Cell Counter Hematology Analyzer
Related Products
-
Accurate Ivd Device Urinalysis Instrument Medical Urine Strip AnalyzerNegotiableMOQ: 1 Unit -
Hotsale Semi-Auto Chemistry Analyzer With Incubation and CoagulationNegotiableMOQ: 1 Unit
-
Hospital Lab Equipment 3 Part Auto Hematology AnalyzerNegotiableMOQ: 1 Unit
-
Hospital Laboratory Auto Urine Analyzer Touch ScreenNegotiableMOQ: 1 Unit
-
Lab Equipment 5 Part Auto Blood Cell Counter Hematology AnalyzerNegotiableMOQ: 1 Unit
Features:
Throughput: 60T/H 8-inch touch screen
20 parameters + 3 histograms
Sample volume: 10 µL
2 reagents only
3 counting modes
100,000 sample results
Support LIS and external printer
Net weight: 19 kg
CE marked
User-friendly software
Well-organized software allows user to interact with the instrument easily, easy to run QC, sample and check results, etc.
Reliable hardware
Liquid system and circuit board isolation design for less break-down, continous improving hardware to make the instrument more reliable for custoer need
Intelligent design
One press for sample analysis with throughout of 60 sec per test.
High voltage shock and back-flush to remove blockage, auto and manual print is supported
Specification
Principle
Impedance for cell counting
Cyanide-free method for HGB
Parameters
WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%,
RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD,
RDW-CV, PLT, MPV, PDW, PCT, P-LCR
Histograms
WBC, RBC, PLT histogram
Languages
English, Spanish, Italian, Portuguese, etc.
Calibration
Manual and Auto-calibration
Quality control
3 level QC, LJ graph
Sample volume
Venous mode: 10μL venous blood
Capillary mode: 10μL capillary blood
Prediluted mode: 20μL capillary blood
Display
8-inch color touch screen Liquid Crystal
Display (LCD) Resolution: 800*600
Storage
100,000 sample results with histograms

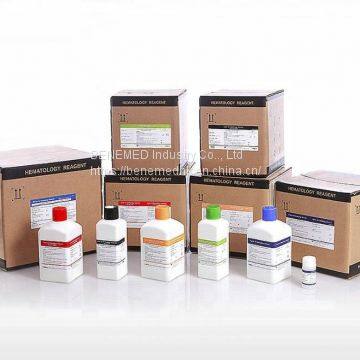

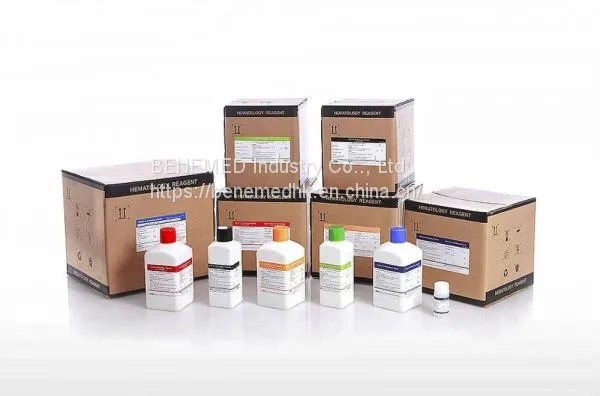

Reagent
Lyse(500mL) and Diluent(20L)
Print out
Thermal printer, support external printer
Temperature
18ºC-35ºC
Power
AC 100-240V, 50/60 ±1Hz
Dimension
410m m x435mm x472mm
