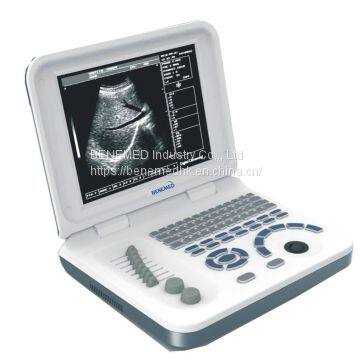

Notebook Type Black and White Ultrasound Scanner

Features

•     Digital Beam Forming
•     Superior image quality
•     Dynamic Receiving Apodization
•     Dynamic Frequency Scan
•     Advanced imaging processing
•     USB port for convenient image transfer
•     Rechargeable battery for long working time

Specification

General Description:

Imaging Modes:    B, B/B, B/M, 4B, M
Scanning Modes:   Convex, Linear
Gray Scale:             256
Display:                  10.6 inch LED monitor
Gain:                       up to 120dB
Scanning dept:       up to 250mm
Imaging technology: Digital Beam-forming
                                 Dynamic Receiving Focusing
                                 Dynamic Receiving Apodization
                                 Real-time Dynamic Aperture

Imaging Processing
Pre-processing:      Dynamic range
                                Line Density
                                Frame correlation
                                Edge enhance
Post-processing:     Gray scale
                                Gray reject
                                Scan angle
                                Polarity reverse
                                Left/Right reverse
                                Up/down reverse
Functions:
ZOOM:                 Local zoom
                            Panoramic zoom
Image memory:     128 frames
Cine Loop:           256 frames
View:                    Patient info, patient image, Patient report
Pseudo color:        16 colors selectable

Software Functions
General measurement:  distance, circumference, area, volume, angle, ration, etc
Calculation package:     abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc

Peripheral ports
USB  SVGA  PAL-D  Video output

Others:
Net weight:             2.6KG
Power supply:          AC 110-240V, 50Hz
Dimensions:            300*250*60

Standard Configurations:
BW-6 main unit
10.4 inch LED monitor
One transducer connector
256 frames cine loop
Electronic convex transducer
Power Adaptor

Options:
Electronic linear transducer
Electronic endocavity transducer
High frequency rectal linear transducer
Mobile Trolly
Printer
