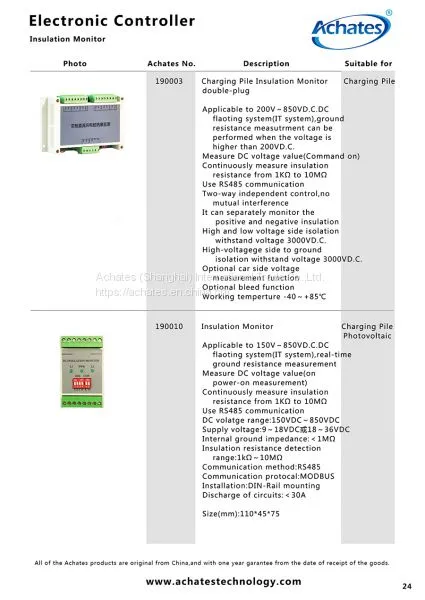

Charging Pile Insulation Monitor(double-plug)

Applicable to 200V～850VD.C.DC floating system(IT system),ground resistance measurement can be performed when the voltage is higher than 200VD.C.

Measure DC voltage value(Command on)

Continuously measure insulation resistance from 1KΩ to 10MΩ；Use RS485 communication

Two-way independent control, no mutual interference

It can separately monitor the positive and negative insulation

High and low voltage side isolation withstand voltage 3000VD.C.

High-voltage side to ground isolation withstand voltage 3000VD.C.;Optional car side voltage measurement function

Optional bleed function

Working temperature -40～+85℃

Packaging Details:

Cardboard packaging inside, carton packaging outside ,anti-static

Shipping:

By Express: DHL,UPS,TNT ; By Air Cargo; By Sea

Payment:

PayPal, Western Union, T/T
