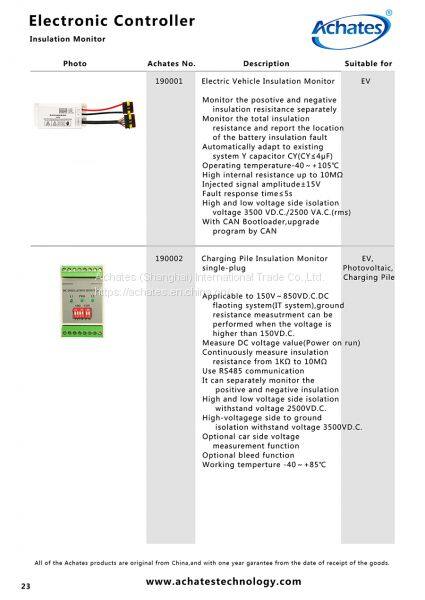

Charging Pile Insulation Monitor (single-plug)

Applicable to 150V～850VD.C.DC floating system(IT system),ground resistance measurement can be performed when the voltage is higher than 150VD.C.

Measure DC voltage value(Power on run)

Continuously measure insulation resistance from 1KΩ to 10MΩ

Use RS485 communication; It can separately monitor the positive and negative insulation

High and low voltage side isolation withstand voltage 2500VD.C.

High-voltage side to ground isolation withstand voltage 3500VD.C.;Optional car side voltage measurement function

Optional bleed function

Working temperature -40～+85℃

Packaging Details:

Cardboard packaging inside, carton packaging outside ,anti-static

Shipping:

By Express: DHL,UPS,TNT ; By Air Cargo; By Sea

Payment:

PayPal, Western Union, T/T
