304 316l Stainless Steel Shim Plate
US$ 10 - 250
MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Tisco, Baosteel, Jisco, ect.
Place of Origin:
China
Model Number:
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 ect.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Rolled 316L 316 304 Sheet Plate Stainless Steel Price for IndustryUS$ 1800 - 3500MOQ: 1 Ton -
ASTM316L 2b Finish Cold Rolled Stainless Steel Sheet (Thickness: 0.01-5.00mm) Pictures & Photos ASTM316L 2b Finish Cold Rolled Stainless Steel Sheet (Thickness: 0.01-5.00mm) Pictures & Photos ASTM316L 2b Finish Cold Rolled Stainless Steel Sheet (ThicknessUS$ 2000 - 6000MOQ: 1 Ton
-
Decorative Embossed Color 1.2mm 316L / 201 /304 Stainless Steel SheetUS$ 2000 - 7500MOQ: 1 Ton
-
Tisco Stainless Steel SUS316L SheetUS$ 2000 - 6580MOQ: 1 Ton
-
SUS304 316 430 Rose Gold Brushed Hairline Finish Decorative Stainless Steel SheetUS$ 2000 - 6000MOQ: 1 Ton
Brand Name
Tisco, Baosteel, Jisco, ect.
Place of Origin
China
Model Number
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 ect.
Certification
ROHS
Length
2000/24380/2500/3000mm or customized
Thickness
0.01-3mm or customized
Type
Plate
Width
1000/1219/1250/1500mm or customized
Application
medical equipment, home appliance, kitchen products
Standard
ASTM, AISI, DIN, EN, GB, JIS
Grade
300 Series
Product Decription----------------------------------------------------------------------------------
Material: 316L
Thickness: 0.3-6mm
Width: 1000-2000mm
Length: according to customer's request
Surface: 2B, Hairline, No.4, BA, 8K mirror finish
SUS316L Mechanical properties in the annealed condition
| Thickness(mm) | Width(mm) | Hardness(HV) | Tensile Strength(mpa) | Yield Strength(mpa) |
|---|---|---|---|---|
| 0.05-1.5 | >200 | >520 | >205 |
Chemical composition---------------------------------------------------------------------------------
| Main Ingredient | Ni | Cr | Mn | C |
|---|---|---|---|---|
| Reference No. | 10.00/14.00 | 16.00/18.00 | ≤2.0 | ≤0.08 |
316L stainless steel common material list
| Item | XRX-SUS316L-S | XRX-SUS316L-1/4H | XRX-SUS316L-1/2H | XRX-SUS316L-3/4H | XRX-SUS316L-H |
| Hardness | 160-200 | 201-250 | 251-310 | 311-370 | 371-410 |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Thickness | Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized) | ||||
| Surface | 2B,2D,No.3,DF,BA,8K | ||||
316L ultar thin, super-hard material list
| Item | Hardness | Hardness Code | Thickness |
| XRX-SUS316L-H | 371-410 | H | 0.08…0.03(Ultar thin) |
Chemical composition---------------------------------------------------------------------------------
| Grade | C(Max) | Mn(Max) | P(Max) | S(Max) | Si(Max) | Cr | Ni | Mo | N(Max) | Cu/Others |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-10.50 | - | 0.10 | - |
| 304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-12.00 | - | 0.10 | - |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.500 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| 316 | 0.080 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - | - |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 0.10 | - |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.000 | 10.50-11.75 | 0.50 | - | - | Ti=6x(C+N) |
| 430 | 0.12 | 1.00 | 0.040 | 0.030 | 1.000 | 16.00-18.00 | 0.75 | - | - | - |
Surface Finished-------------------------------------------------------------------------------------------
| Surface Finished | Characteristics | Application |
| BA | Bright heat treatment after cold rolling. | Ktchen utenstil, Kitchen ware, Architectural purpose. |
| 2B | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. | General application medical instruments, Tableware. |
| NO.1 | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. | Chemical industry equipment, Industrial tanks. |
| 8K(Mirror) | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
| Hair Line | Finished by continuous linear polishing. | Architecture industries, Escalators, Kitchen ware, Vehicles. |

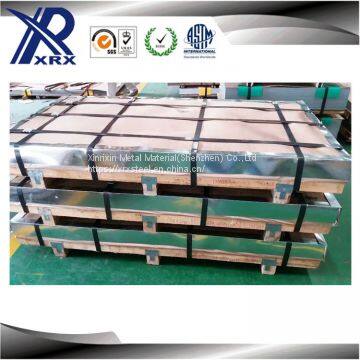

Packing&Shipping-----------------------------------------------------------------------------------
| Contact: Miss. Lumi Huang Tel: 0086-755-86055888 Fax: 0086-755-82317372 Mobilephone 0086-13647118171 |
