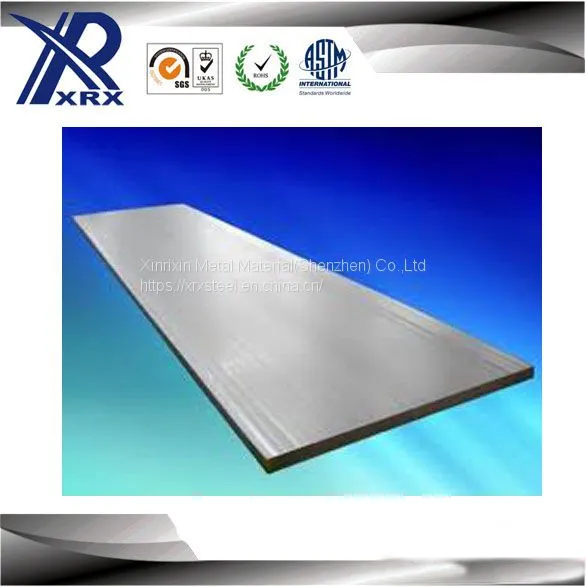

Tisco Cold Rolled Stainless Steel SUS/AISI 316L Sheet
US$ 2000 - 6000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
Tisco, Baosteel, Jisco, Posco, etc.
Place of Origin:
China
Model Number:
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
10 days
Related Products
-
201 316 316L Ti-Golden Mirror Finish Stainless Steel SheetUS$ 2000 - 7400MOQ: 1 Ton -
Stainless Steel Sheet for Construction Building 304, 316LUS$ 2000 - 7500MOQ: 1 Ton
-
304 316L 1.4301 1.4404 Stainless Steel SheetsUS$ 2000 - 6000MOQ: 1 Ton
-
Cold/Hot Rolled 316L 1.5mm Metal Stainless Steel SheetUS$ 2000 - 7500MOQ: 1 Ton
-
ASTM304 316 Ba Finish Cold Rolled Stainless Steel SheetUS$ 2000 - 7500MOQ: 1 Ton
Brand Name
Tisco, Baosteel, Jisco, Posco, etc.
Place of Origin
China
Model Number
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 etc.
Certification
SGS
Length
1000-6000mm or as requiremnt
Thickness
0.01-4mm
Type
Plate
Width
10-2000mm or as requirement
Application
medical equipment, home appliance, kitchen products,water pump, hardware,etc.
Standard
ASTM, AISI, DIN, EN, GB, JIS
Grade
300 Series
Product Decription----------------------------------------------------------------------------------
316L stainless steel precision strip / sheet
Material: 316L
Thickness: 0.3-6mm
Width: 1000-2000mm
Length: according to customer's request
Surface: 2B, Hairline, No.4, BA, 8K mirror finish
SUS316L Mechanical properties in the annealed condition
| Thickness(mm) | Width(mm) | Hardness(HV) | Tensile Strength(mpa) | Yield Strength(mpa) |
|---|---|---|---|---|
| 0.05-1.5 | >200 | >520 | >205 |
Chemical composition---------------------------------------------------------------------------------
| Main Ingredient | Ni | Cr | Mn | C |
|---|---|---|---|---|
| Reference No. | 10.00/14.00 | 16.00/18.00 | ≤2.0 | ≤0.08 |
316L stainless steel common material list
| Item | XRX-SUS316L-S | XRX-SUS316L-1/4H | XRX-SUS316L-1/2H | XRX-SUS316L-3/4H | XRX-SUS316L-H |
| Hardness | 160-200 | 201-250 | 251-310 | 311-370 | 371-410 |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Thickness | Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized) | ||||
| Surface | 2B,2D,No.3,DF,BA,8K | ||||
316L ultar thin, super-hard material list
| Item | Hardness | Hardness Code | Thickness |
| XRX-SUS316L-H | 371-410 | H | 0.08…0.03(Ultar thin) |
Chemical composition---------------------------------------------------------------------------------
| Grade | C(Max) | Mn(Max) | P(Max) | S(Max) | Si(Max) | Cr | Ni | Mo | N(Max) | Cu/Others |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-10.50 | - | 0.10 | - |
| 304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-12.00 | - | 0.10 | - |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.500 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| 316 | 0.080 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - | - |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 0.10 | - |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.000 | 10.50-11.75 | 0.50 | - | - | Ti=6x(C+N) |
| 430 | 0.12 | 1.00 | 0.040 | 0.030 | 1.000 | 16.00-18.00 | 0.75 | - | - | - |
Surface Finished-------------------------------------------------------------------------------------------
| Surface Finished | Characteristics | Application |
| BA | Bright heat treatment after cold rolling. | Ktchen utenstil, Kitchen ware, Architectural purpose. |
| 2B | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. | General application medical instruments, Tableware. |
| NO.1 | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. | Chemical industry equipment, Industrial tanks. |
| 8K(Mirror) | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
| Hair Line | Finished by continuous linear polishing. | Architecture industries, Escalators, Kitchen ware, Vehicles. |
Packing&Shipping-----------------------------------------------------------------------------------
