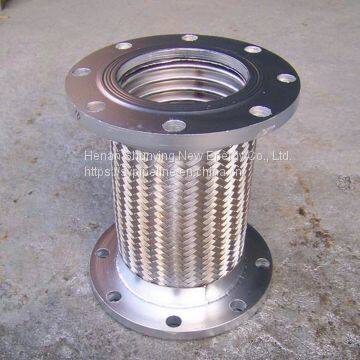

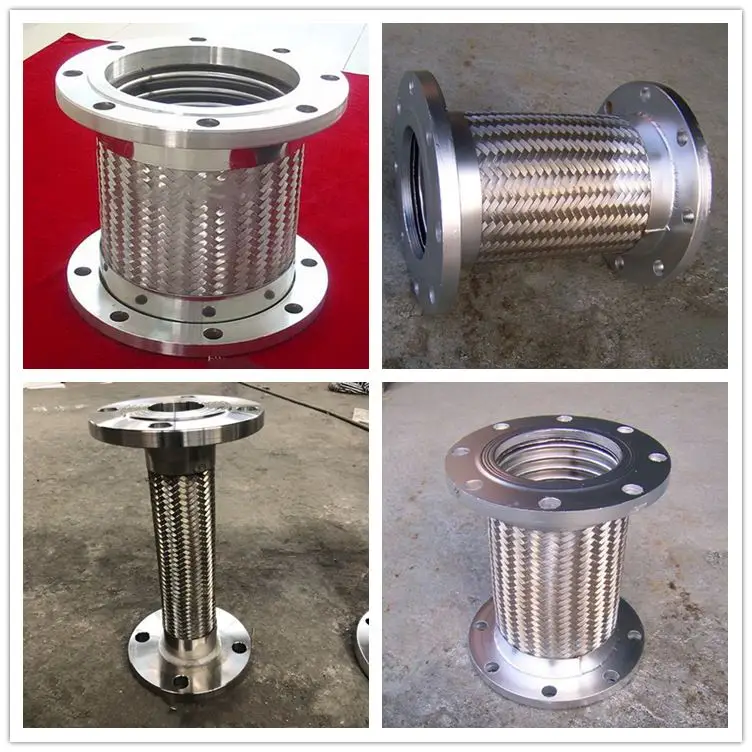

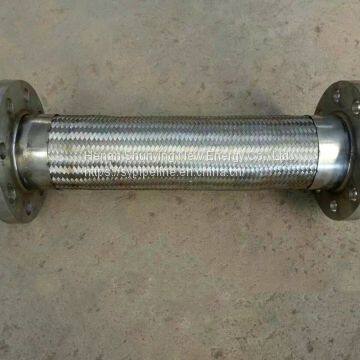

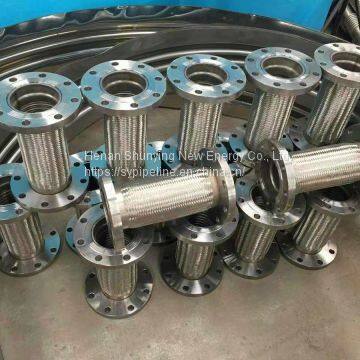

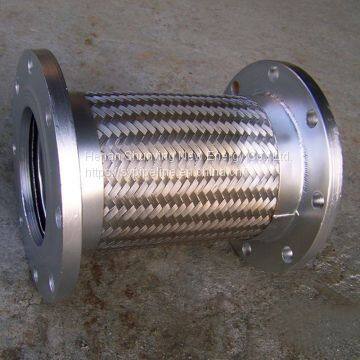

Stainless Steel Flange joint Flexible Braids Hose For Pipe System

Flexible Metal Hose is a kind of flexible component which is used to conveying different kinds of mediums. It is composed by stainless steel bellow with one or more layers steel thread or steel strip mesh sleeve, two ends with joint or flange head.Stainless steel metal hose as a kind of flexible pressure resistance pipe, installed in liquid transportation system, used to compensate pipe or machine equipment connection mutual displacement, absorb vibration energy, has the function of vibration reduction and noise damping.  metal garden hose,stainless steel hose,metal garden hose review

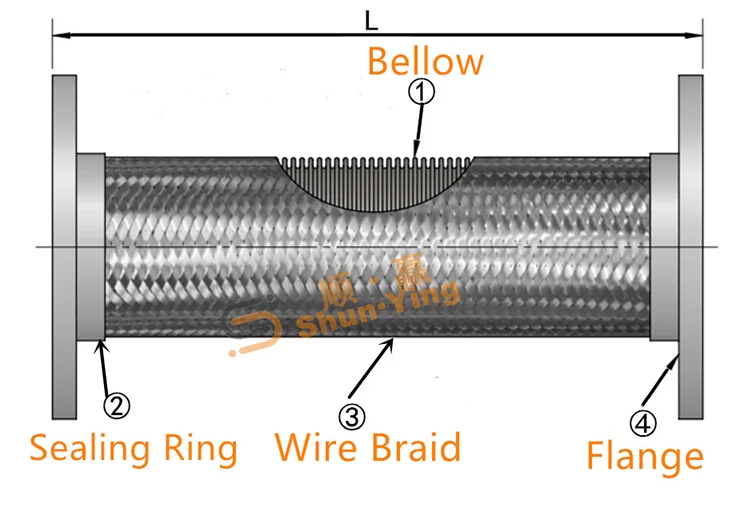

Flexible Metal Hose is a kind of flexible hose with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.

 flex steel hose,metal hose, hose, flexible metal hose,flexible gas connector, flexible connector,flexible joint,flexible hose

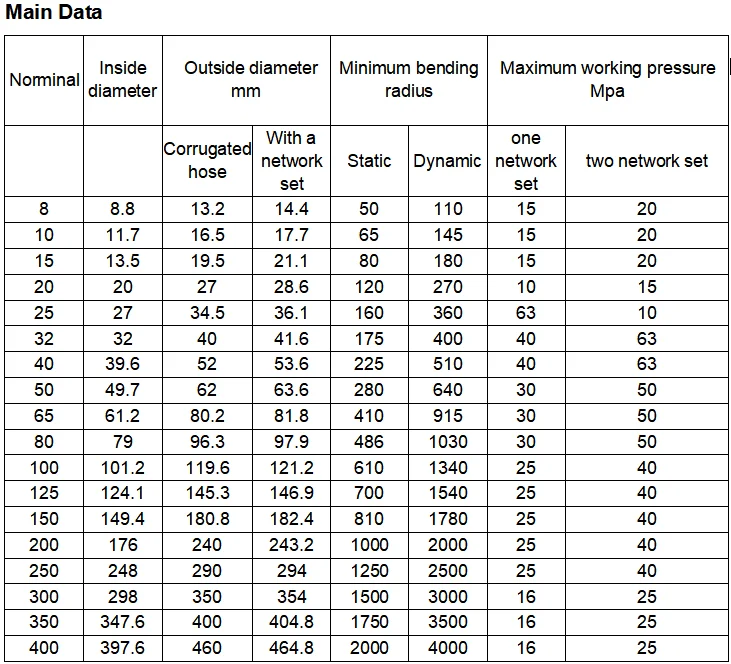

Main Data

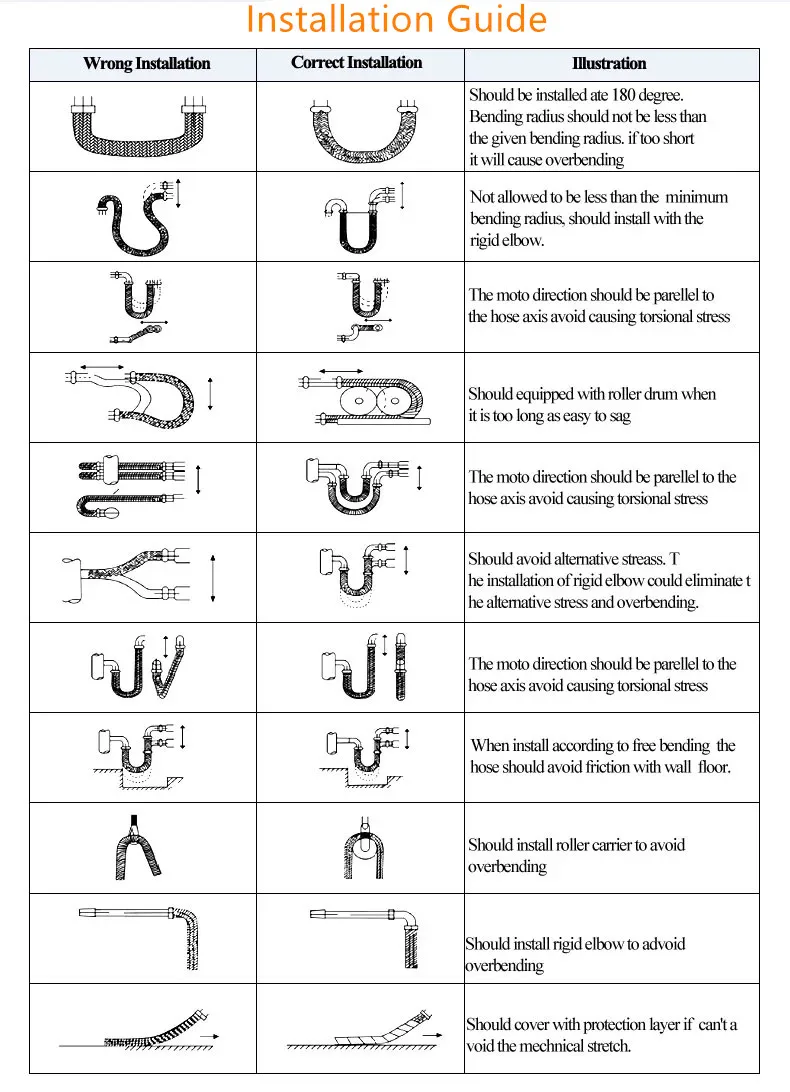

Wrong Installation VS Correct Installation

1.Avoid torque.Do not twist the hose assembly during installation when aligning the bolt holes in a flange or in mating up pipe threads. The utilization of lap joint flanges or pipe unions will minimize this condition. It is recommended that two wrenches be used in making the union connection: one to prevent the hose from twisting and the other to tighten the coupling.

 metal hose,corrugated metal hose,braided hose, turbine hose,stainless steel hose,braided hose

2. Prevent out-of-plane flexing in an installation.Always install the hose so that the flexing takes place in only one plane--this being the plane in which the bending occurs.

 power generation hose

3. Avoid over bending.The repetitive bending of a hose to a radius smaller than teh radius listed in the specification tables for corrugated hose will result in early hose will result in early hose failure. Always provide sufficient length to prevent overbending and to eliminate strain on the hose.

4. Avoid careless handling of the hose assembly.Always lift or carry metal hose to prevent abrasion damage particularly to braided corrugated hose. Store metal hose assemblies away from areas where it can be subjected to spillage, corrosive fumes or sprays, weld splatter, etc.

5. Always support the piping.A piping system which utilizes metal hose to absorb movement must be properly anchored and / or guided. Always support the piping to prevent excessive weight from compressing the hose and relaxing the braid tension.

 Advantages

1.100% quality assurance. Inner corrugated hose and outside wire braid are all made of stainless steel 304. This way can avoid media corrosion to the metal hose and largely prolong the life-span of the metal hose

Poor quality metal hoses are usually made of SS202, even some suppliers use the material of SS201 to make the wire braid and inner tube. In this way, the life-span of metal hose are reduced largely and increase the maintenance and time cost to the customers. What’s worse, the poor quality metal hoses are easy to cause the leakage of media, and then cause the security incidents.

2. We manufactured all the metal hoses according to the request of pressure grade strictly. Never have the phenomenon of thin wall and poor waves. This way guarantee the hoses’ compressive strength and fatigue lifetime very well and prolong the life-span of metal hose.

3. We promise all the metal hose will be examined strictly before deliver even large quantity order. To the metal hose used in the high pressure environment, we even will arrange 3 to 4 times pressure test before deliver.

About Price

1.If you purchaese over $8000,we can returned to $100.

2.If you repurchase ,you can enjoy 2% discount.

3.If you become agent, you can enjoy 5% discount.

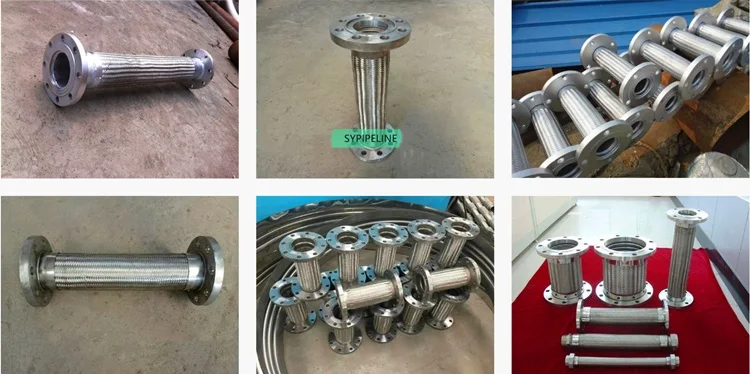

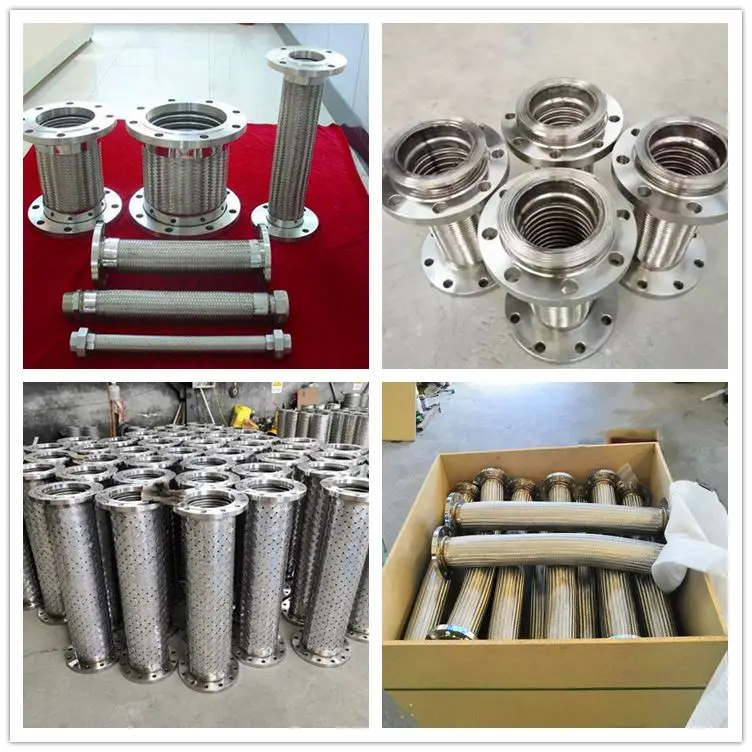

Work Shop

Packing & Shipping

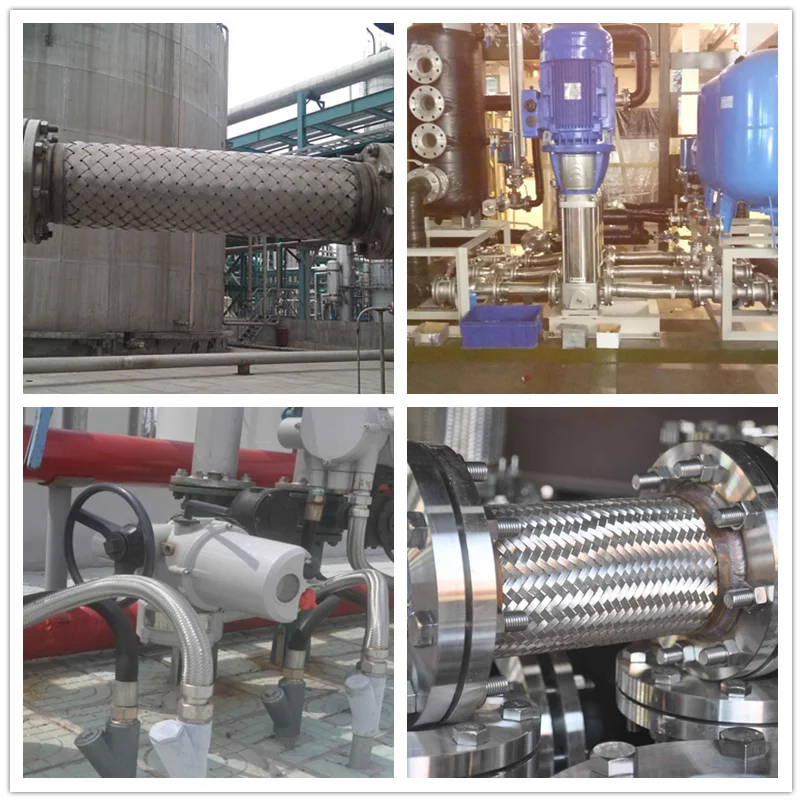

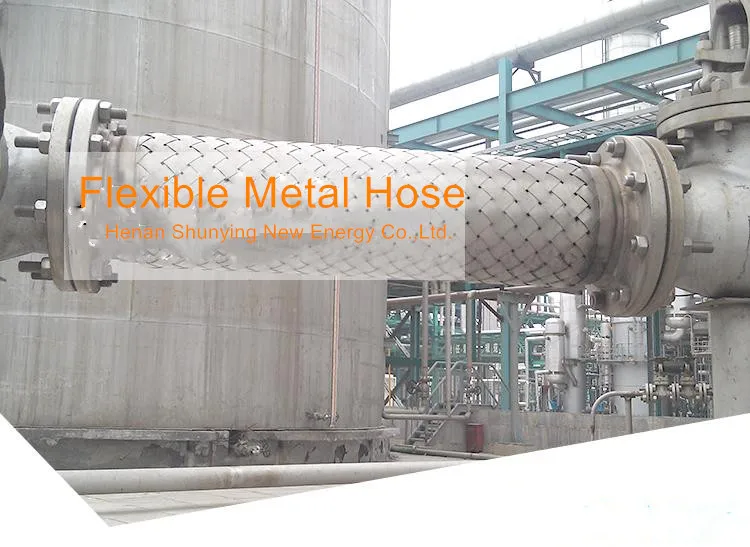

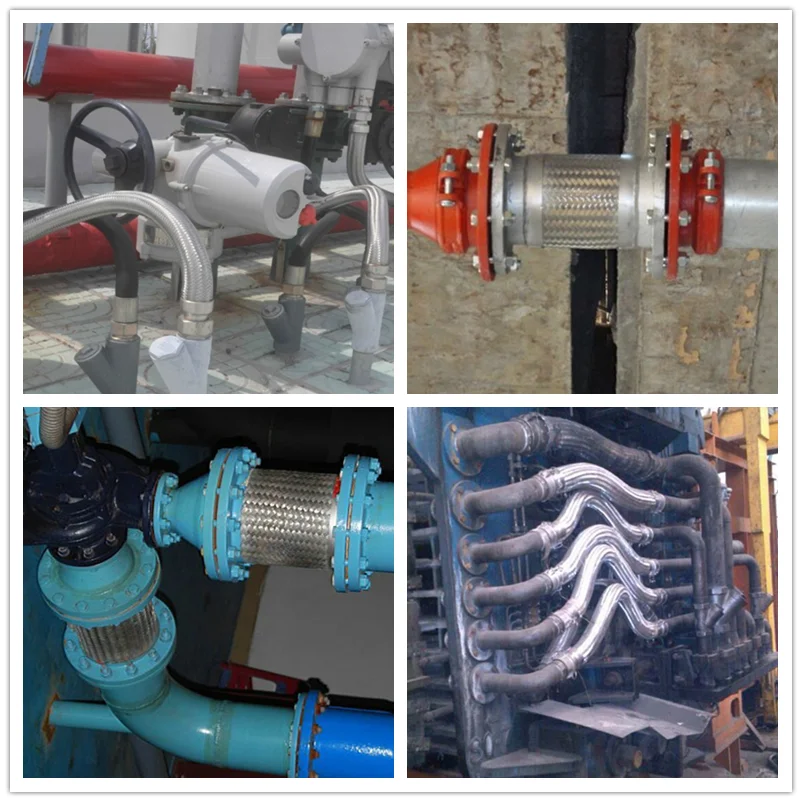

Application range of Metal Hose
Fully flexible conveying pipe,conveying pipe for preventing vibration, conveying steam, coal gas, air, heavy oil, petroleum, chemical medicines etc.

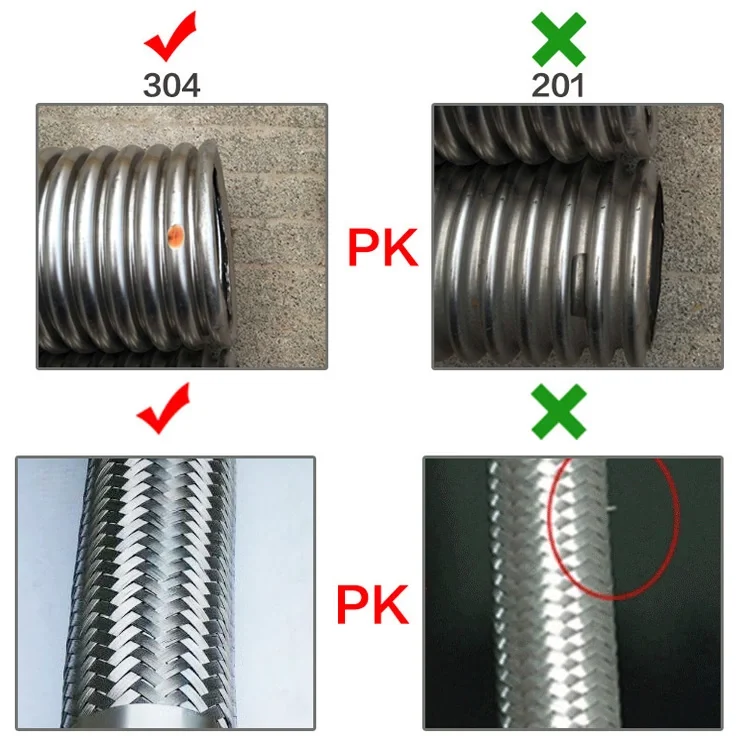

 Our Products VS other Products

At Shunying , the range of our engineering emphasis extends from the selection of the fabric used for reinforcement to the choice of materials used in actual expansion joint construction.  Rigid laboratory and field tests of Shunying  expansion joints are what back up our assurances of long life and reliable service. An important word on safety: all Shunying expansion joints carry safety ratings exceeding product specifications in such areas as pressure and movement.

Henan Shunying New Energy Co., Ltd.

    We are a comprehensive manufacturing and trading company located in zhengzhou, China . We are mainly doing rubber expansion joint, dismantling joint, expansion bellows, compensator, flange and pipe fittings. We have been carrying out a strict quality management system in accordance with ISO9001 requirements. All kinds of products are regularly conducted pressure-tight blasting test, longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

 Our Services

We offer good quality products in competitive price.
   ♦ We have rich experience in this industry.
   ♦ We have short delivery time .
   ♦ Shipped the goods on time.
   ♦ Meet your special requirements.

Q : Are you trading company or manufacturer?

A: We are manufacturer of rubber joint,bellow expansion joint,  dismantling joint,duckbill check valve, flange and pipe fitting with more than 12-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt,Sri Lanka, Nigeria, Iran,Vietnam,

Indonisia,Singapore,Greece,Netherland,Georgia,Romania,Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK,Taiwan...

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
