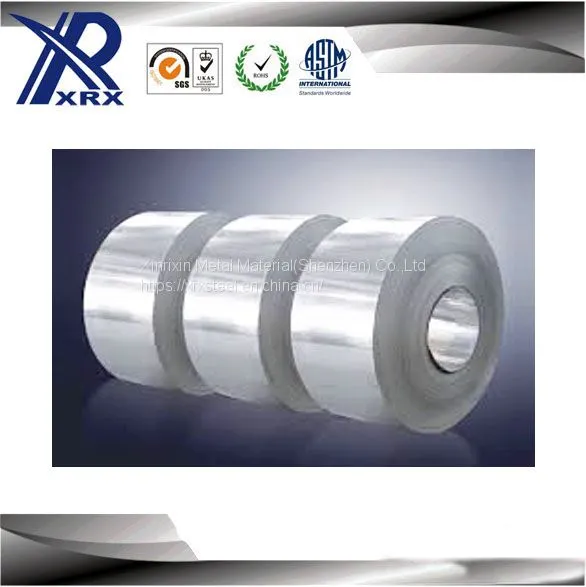

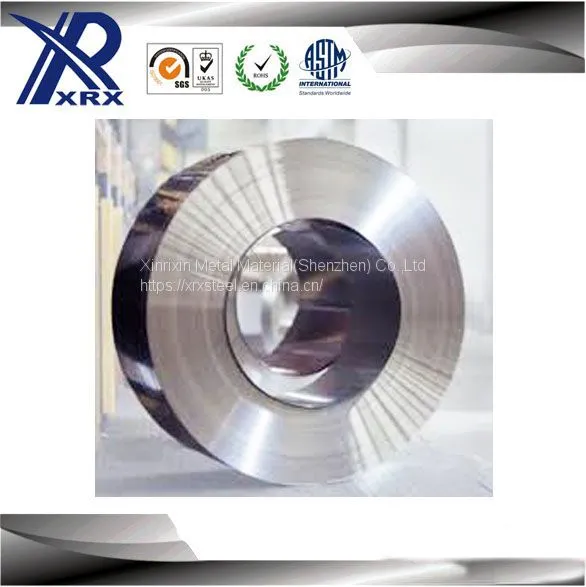

316Ti Stainless Steel Strip
US$ 2000 - 5000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
Tisco, Baosteel, Jisco, ect.
Place of Origin:
China
Model Number:
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 ect.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
10 days
Related Products
-
High Quality Delicate Stainless Steel Strips 321US$ 2100 - 3500MOQ: 1 Ton -
Cold Rolled Technique and 0.2mm -1.8 mm Thickness Stainless Steel Strip PriceUS$ 1.67 - 14.4MOQ: 1 Kilogram
-
3mm 4X8 201 202 304 309 316 309S 310S 321 410S 420 430 Stainless Steel SheetUS$ 2300 - 4800MOQ: 1 Ton
-
Aisi 430 410s BA Surface Grade Stainless Steel CoilUS$ 2500 - 5600MOQ: 1 Ton
-
2B 410s 430 Sus 400 Series Stainless Steel SheetUS$ 2000 - 6000MOQ: 1 Ton
Brand Name
Tisco, Baosteel, Jisco, ect.
Place of Origin
China
Model Number
201, 202, 301, 304, 305, 316, 316L, 317, 409, 410, 430, 441, 444, 420, 430, 420J2, 631, 630, 2205, 2207 ect.
Certification
ISO
Length
coil or as required
Thickness
0.01-3mm or customized
Width
10-2000mm or as required.
Application
Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,boiler, nuclear energy, Medical equipment, fertilizer etc
Technique
Cold Rolled
Standard
AISI, ASTM, DIN, EN, GB, JIS
Grade
300 Series
Product Decription----------------------------------------------------------------------------------
Material: 316L
Thickness: 0.3-6mm
Width: 1000-2000mm
Length: according to customer's request
Surface: 2B, Hairline, No.4, BA, 8K mirror finish
SUS316L Mechanical properties in the annealed condition
| Thickness(mm) | Width(mm) | Hardness(HV) | Tensile Strength(mpa) | Yield Strength(mpa) |
|---|---|---|---|---|
| 0.05-1.5 | >200 | >520 | >205 |
Chemical composition---------------------------------------------------------------------------------
| Main Ingredient | Ni | Cr | Mn | C |
|---|---|---|---|---|
| Reference No. | 10.00/14.00 | 16.00/18.00 | ≤2.0 | ≤0.08 |
316L stainless steel common material list
| Item | XRX-SUS316L-S | XRX-SUS316L-1/4H | XRX-SUS316L-1/2H | XRX-SUS316L-3/4H | XRX-SUS316L-H |
| Hardness | 160-200 | 201-250 | 251-310 | 311-370 | 371-410 |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Thickness | Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized) | ||||
| Surface | 2B,2D,No.3,DF,BA,8K | ||||
316L ultar thin, super-hard material list
| Item | Hardness | Hardness Code | Thickness |
| XRX-SUS316L-H | 371-410 | H | 0.08…0.03(Ultar thin) |
Chemical composition---------------------------------------------------------------------------------
| Grade | C(Max) | Mn(Max) | P(Max) | S(Max) | Si(Max) | Cr | Ni | Mo | N(Max) | Cu/Others |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-10.50 | - | 0.10 | - |
| 304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-12.00 | - | 0.10 | - |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.500 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| 316 | 0.080 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - | - |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 0.10 | - |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.000 | 10.50-11.75 | 0.50 | - | - | Ti=6x(C+N) |
| 430 | 0.12 | 1.00 | 0.040 | 0.030 | 1.000 | 16.00-18.00 | 0.75 | - | - | - |
Surface Finished-------------------------------------------------------------------------------------------
| Surface Finished | Characteristics | Application |
| BA | Bright heat treatment after cold rolling. | Ktchen utenstil, Kitchen ware, Architectural purpose. |
| 2B | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. | General application medical instruments, Tableware. |
| NO.1 | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. | Chemical industry equipment, Industrial tanks. |
| 8K(Mirror) | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
| Hair Line | Finished by continuous linear polishing. | Architecture industries, Escalators, Kitchen ware, Vehicles. |
Packing&Shipping-----------------------------------------------------------------------------------
| Contact: Miss. Lumi Huang Tel: 0086-755-86055888 Fax: 0086-755-82317372 Mobilephone 0086-13647118171 Whatsapp: 86 13277991216 Email: 13647118171@163.com |
