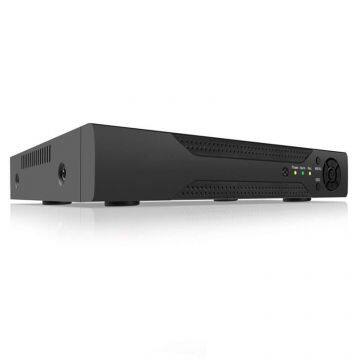

Wdm 16chs 5.0M-N 6 in 1 Network Ahd DVR
- 20000 Piece / Pieces per Month
- shenzhen,china
- T/T PayPal Other
- Supply of Sodimax financial escort vehicle in-vehicle wireless 4G monitoring solution
- Supply school student delivery vehicle 4G wireless video real-time surveillance video recorder
- 4-channel 1080P single SD truck-mounted video recorder supports 4G network GPS full real-time monitoring
- SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution
- 1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
- SD Card 720P HD Vehicle DVR H.264 Car Alarm Monitoring Solution
Product Details
Brand Name: | Wardmay/OEM | Place of Origin: | China | Model Number: | WDM-DVR6516M-N |
Product Description
16CHS Digital Video Recorder 6 in 1 Anolog Camera 5MP AHD DVR
Features:
* Support 16chs 5MP Encoding
* Support AHD/TVI/CVI/CVBS/IP Self-adaptive
* HDMI/VGA Simultaneous Video Output
* Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI
* Support ONVIF Protocol
* Support WEB,VMS,MYEYE Platform
* Support Mobile Phone Monitoring(IOS ,Android)
* Cloud Services,P2P,Alarm Information Push To Phone
* Support Multi-Language
Specifications
Model No. | WDM-DVR6504M-N | WDM-DVR6508M-N | WDM-DVR6516M-N | |
Video compression | H.265 | |||
Solution | 4CHS 5.0 Megapixel(15fps); 4chs 4.0Megapixel(18fps);4CHS 2.0MPMegapixel(18fps) Hi3520DV400 | 8CHS 5.0 Megapixel(15fps); 8chs 4.0Megapixel(18fps);8CHS 2.0MPMegapixel(18fps) Hi3520DV400 | 16chs 5.0 Megapixel(15fps),16chs 4MP(18fps), 16chs 2.0MP(18fps) Hi3521D | |
Analog video input | 4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | 16PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | |
Audio compression | ADPCM | |||
Audio input | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ | |
Video/Audio output | ||||
Multi-mode switch | AHD/XVI/TVI/CVI/Analog: 4CH*5M-N, 4CH*1080P@18fps IP: 16*1080P;4*5MP Blend: 2*1080P(Analog)+2*1080P(IP); 4*1080N+4*960P | AHD/XVI/TVI/CVI/Analog: 8CH*5M-N, 8CH*1080P@18fps IP: 8*1080P;8*5MP Blend:4*1080P(Analog)+2*1080P(IP); | AHD/XVI/TVI/CVI/Analog: 16CH*5M-N, 16CH*4M,16CH*1080N@18fps IP: 8*1080P;4*5MP;4*3MP Blend: 2*1080N(Analog)+8*960P | |
HDMI/VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P 3MP,4MP,5MP | |||
CVBS output | NO | |||
Encording resolution | 4*5MP(15fps),4*1080P@18fps; IP:16*1080P, 4*5MP | 8CH*1080P@18fps IP: 8*1080P;8*5MP | 16CH*4M,16CH*1080N@18fps IP: 8*1080P;4*5MP;4*3MP | |
Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S | |||
Video bit rate | 256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M | |||
Video output | 1CH video out | |||
Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) | |||
Dual-stream | YES | |||
Stream type | combine streams/ video stream | |||
Playback Channel | 4chs | 4chs | 16chs | |
Hard disk | 1 SATA | |||
Capacity | each port support max 8TB HDD | |||
External interface | ||||
Network interface | 1PCS RJ45 10M / 100M/1000M adaptive Ethernet port | |||
Serial interface | 1PCS RS485 | |||
USB interface | 2*USB2.0 | |||
Remote control | NO | |||
General | ||||
Mobile App | Xmeye | |||
Support | Support VGA,PTZ,HDMI | |||
Power supply | DC12V2A | |||
Working temperature | -10ºC--+55ºC | |||
Working humidity | 10%--90% | |||
Chassis | 1U | 1U | 1U | |
Dmensions(W×D×H) | 35*27.5*7.5cm | 35*27.5*7.5cm | 44.5*30*9cm | |
Accessories | ||||
Accessories | 1pc power supply,1*USB mouse,1*srecwdriver ,1*instruction manual |

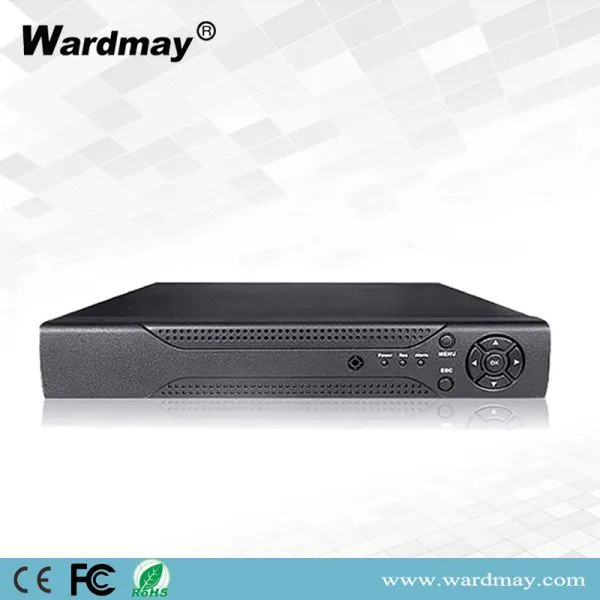

Product Show
