4ch 4K Network Poe Video Recorde Security NVR
Features
* Support H.265/H.264 coding front-end adaptive access
* Support ONVIF,support Highprofile S, Highprofile G, and can connect ip cameras conforming to ONVIF, RTSP standards and many mainstream manufacturers.
* Support IPC front-end intelligence: target counting, item detection, area detection, cross-border detection;
* Support P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal to access NVR anytime and anywhere
* Support instant playback under preview screen without affecting other channel preview
* Support adaptive stream preview and playback 4 pictures maximum support 1920*1080, single picture 3820*2160
* Provide networked centralized monitoring and management
Specifications
| Specifications | |||
| Product Name | H.265 4/8/16CHS POE 4K NVR | ||
| Model No. | WDM-NVR8804K2MD-POE | WDM-NVR8808K2MD-POE | WDM-NVR8816K2MD-POE |
| System | |||
| Operation system | Embedded LINUX operating system | ||
| Video/Audio Input | |||
| Network video input | 32chs digital(2592*1944)+36chs preview +9chs playback,32chs 5MP or lower ip camera | ||
| 25chs digital(2592*1944)+ 25chs preview +9chs playback, 25chs 5MP or lower ip camera | |||
| 16chs digital(3840*2160)+16chs preview +16chs playback, 16chs 4K or lower ip camera | |||
| 8chs digital(3840*2160)+9chs preview +9chs playback, 8chs 4K or lower ip camera | |||
| 4chs digital(3840*2160)+4chs preview +4chs playback, 4chs 4K or lower ip camera | |||
| Access bandwidth | 80M | ||
| Audio input | IPC Compound Stream Network Audio Input | ||
| Video compression | H.265+/ H.265/H.264 | ||
| Video/Audio Output | |||
| HDMI/Output | 1chs, HDMI can output audio simultaneously, Note: 32chs, 25chs 5MP input 1080P resolution; 16chs, 8chs, 4chs input 4K resolution | ||
| VGA Output | 1chs | ||
| Preview segmentation | 32chs mode, 36chs image Segmente Max Substream VGA(640*480, or 704*416), Single image main stream | ||
| 25chs mode, 25chs image segmente max substream D1(704*576), single image main stream | |||
| 16chs mode, 16chs image segmente max substream D1(704*576), single image main stream | |||
| 8chs mode, 9chs image segmente max substream D1(704*576), single image main stream | |||
| 4chs mode, 4chs image segmente max substream D1(704*576), single image main stream | |||
| Video and Audio Coding and Decoding Parameters | |||
| record resolution | 4K/5MP/4MP/3MP/1080P and lower resolutio | ||
| Synchronous playback | 4channels | ||
| External interface | |||
| network interface | 1pc, RJ45 10M/100M Adaptive Ethernet port | ||
| USB interface | 2pcs USB2.0, ront panel 1pc, back panel 1pc | ||
| Storage mode | 2 * SATA HDD(max 8TB HDD) | ||
| POE Interface | 8 independent 10/100Mpbs Ethernet interfaces, supporting 200m network cable | ||
| POE Support standard | IEEE802.3af | ||
| Managment | |||
| P2P remotely control | AEeye | support iPhone, iPad, Android smart phone | |
| support Windows 7 and above computer clients end, support apple MAC computer client | |||
| General | |||
| Power supply | DC 52V3A | ||
| Working temperature | -10ºC--+55ºC | ||
| Working humidity | 10%-90% | ||
| Power consumption | POE consumption ≤104W, NVR PCB consumption ≤8W(Without HDD) | ||

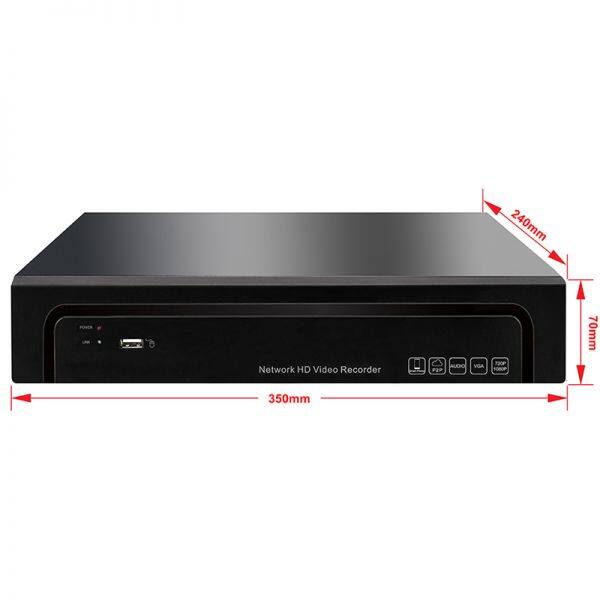

| Dimension | NVR: 350mm×240mm×68mm, packing: 409mm×365mm×129m | ||
| Weight(without HDD) | net weight:1.8Kg; packing weight: 3.2Kg | ||
| Turnover box | 5pcs for 1 carton, dimension: 675mm×425mm×385mm; weight: 18 KG | ||
| Installation mode | Desktop installation | ||

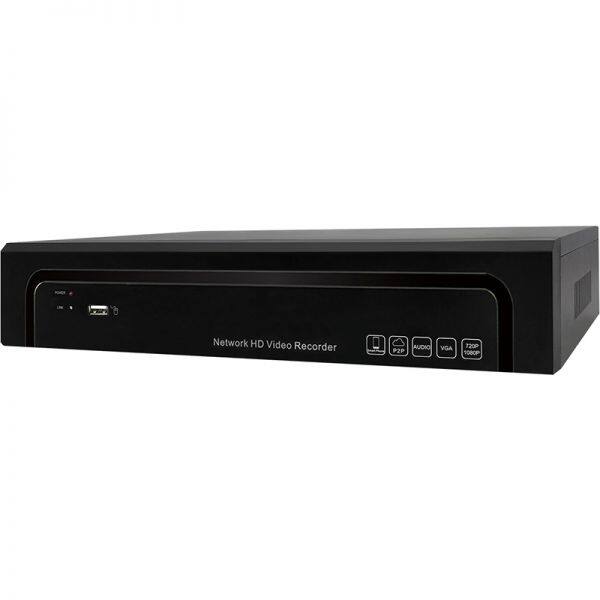

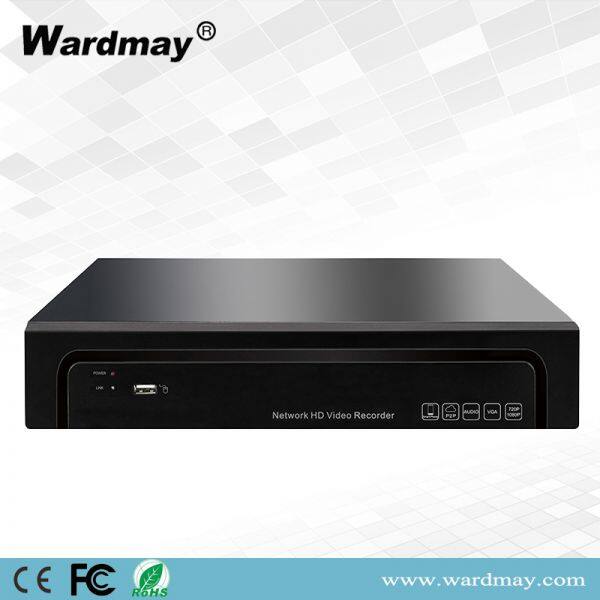

Pictures Show
