Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > CCTV 6 in 1 4chs 5M-N Network Ahd DVR

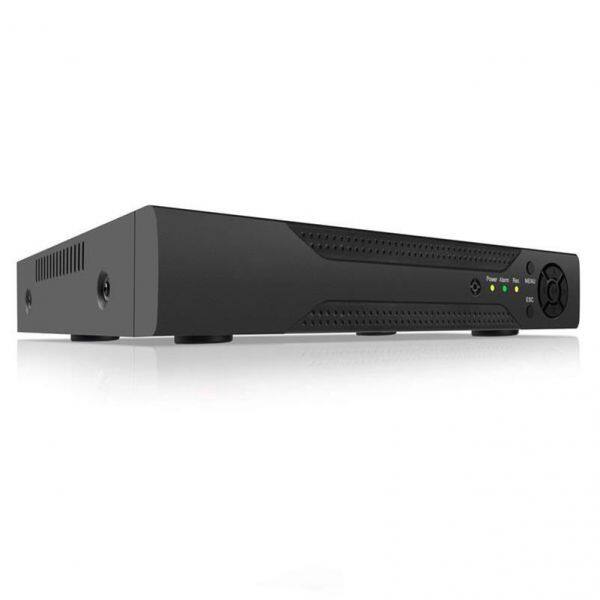

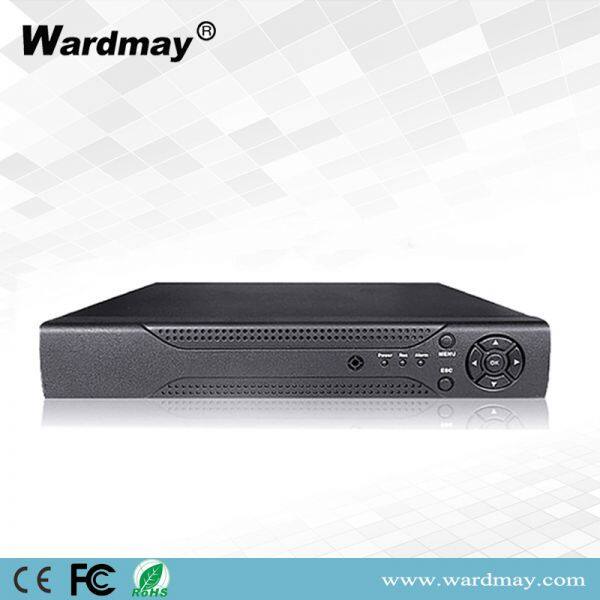

CCTV 6 in 1 4chs 5M-N Network Ahd DVR
US$ 25.65 - 25.65
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Wardmay/OEM
Place of Origin:
China
Model Number:
WDM-DVR6504M-N
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CCTV 6 in 1 8chs 5M-N Network Ahd DVRUS$ 25.65 - 25.65MOQ: 50 Pieces -
Wdm 16chs 5.0M-N 6 in 1 Network Ahd DVRUS$ 57.85 - 57.85MOQ: 50 Pieces
-
Wdm-8chs 4.0MP Network DVRUS$ 131.1 - 131.1MOQ: 20 Pieces
-
Wdm-16chs 4.0MP HD CCTV Digital Video RecorderUS$ 45 - 45MOQ: 20 Pieces
-
Wdm-32chs 4.0MP 5 in 1 Hybrid HD DVRUS$ 299.5 - 299.5MOQ: 20 Pieces
Brand Name
Wardmay/OEM
Place of Origin
China
Model Number
WDM-DVR6504M-N
4chs 5.0MP HD DVR (AHD,XVI,CVI,TVI,CVBS,IPC) From Wardmay Ltd
Features:
* Support 4chs 5MP Encoding
* Support AHD/TVI/CVI/CVBS/IP Self-adaptive
* HDMI/VGA Simultaneous Video Output
* Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,3G,WIFI
* Support ONVIF Protocol
* Support WEB,VMS,MYEYE Platform
* Support Mobile Phone Monitoring(IOS ,Android)
* Cloud Services,P2P,Alarm Information Push To Phone
* Support Multi-Language
Specifications
| Model No. | WDM-DVR6504M-N | WDM-DVR6508M-N | WDM-DVR6516M-N | |
| Video compression | H.265 | |||
| Solution | 4CHS 5.0 Megapixel(15fps); 4chs 4.0Megapixel(18fps);4CHS 2.0MPMegapixel(18fps) Hi3520DV400 | 8CHS 5.0 Megapixel(15fps); 8chs 4.0Megapixel(18fps);8CHS 2.0MPMegapixel(18fps) Hi3520DV400 | 16chs 5.0 Megapixel(15fps),16chs 4MP(18fps), 16chs 2.0MP(18fps) Hi3521D | |
| Analog video input | 4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | 16PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω | |
| Audio compression | ADPCM | |||
| Audio input | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ | |
| Video/Audio output | ||||
| Multi-mode switch | AHD/XVI/TVI/CVI/Analog: 4CH*5M-N, 4CH*1080P@18fps IP: 16*1080P;4*5MP Blend: 2*1080P(Analog)+2*1080P(IP); 4*1080N+4*960P |
AHD/XVI/TVI/CVI/Analog: 8CH*5M-N, 8CH*1080P@18fps IP: 8*1080P;8*5MP Blend:4*1080P(Analog)+2*1080P(IP); |
AHD/XVI/TVI/CVI/Analog: 16CH*5M-N, 16CH*4M,16CH*1080N@18fps IP: 8*1080P;4*5MP;4*3MP Blend: 2*1080N(Analog)+8*960P |
|
| HDMI/VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P 3MP,4MP,5MP | |||
| CVBS output | NO | |||
| Encording resolution | 4*5MP(15fps),4*1080P@18fps; IP:16*1080P, 4*5MP |
8CH*1080P@18fps IP: 8*1080P;8*5MP |
16CH*4M,16CH*1080N@18fps IP: 8*1080P;4*5MP;4*3MP |
|
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S | |||
| Video bit rate | 256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M | |||
| Video output | 1CH video out | |||
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) | |||
| Dual-stream | YES | |||
| Stream type | combine streams/ video stream | |||
| Playback Channel | 4chs | 4chs | 16chs | |
| Hard disk | 1 SATA | |||
| Capacity | each port support max 8TB HDD | |||
| External interface | ||||
| Network interface | 1PCS RJ45 10M / 100M/1000M adaptive Ethernet port | |||
| Serial interface | 1PCS RS485 | |||
| USB interface | 2*USB2.0 | |||
| Remote control | NO | |||
| General | ||||
| Mobile App | Xmeye | |||
| Support | Support VGA,PTZ,HDMI | |||
| Power supply | DC12V2A | |||
| Working temperature | -10ºC--+55ºC | |||
| Working humidity | 10%--90% | |||
| Chassis | 1U | 1U | 1U | |
| Dmensions(W×D×H) | 35*27.5*7.5cm | 35*27.5*7.5cm | 44.5*30*9cm | |
| Accessories | ||||
| Accessories | 1pc power supply,1*USB mouse,1*srecwdriver ,1*instruction manual | |||
