JARCH High speed slip ring rotating conductive slip ring collector ring brush through hole 2 4 6 8 12 24 way customization
Slip rings are electromechanical devices that permit the transmission of power and/or electrical signals between stationary and rotating structures or equipment. These devices are used in electromechanical systems that require continuous rotation while transmitting power/signals and can improve performance, simplify operation, and eliminate potentially dangerous wires that might otherwise protrude from movable joints.
Operationally, slip rings can be used on any sort of rotating electromechanical equipment to transfer power, control circuits, and/or analog/digital signals. They can commonly be found in everything from electrical generators to wind turbines to heliostats.
In simplified terms, a slip ring provides a way of making an electrical or data connection point through a rotating assembly.
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.
Custom slip rings are also available—Contact us to discuss your custom requirements.

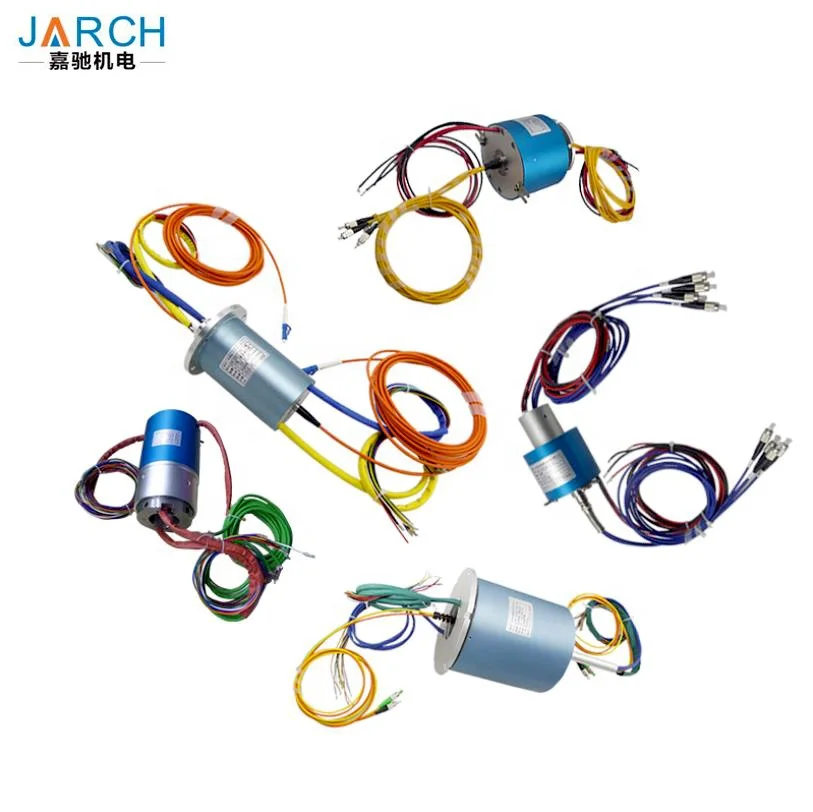

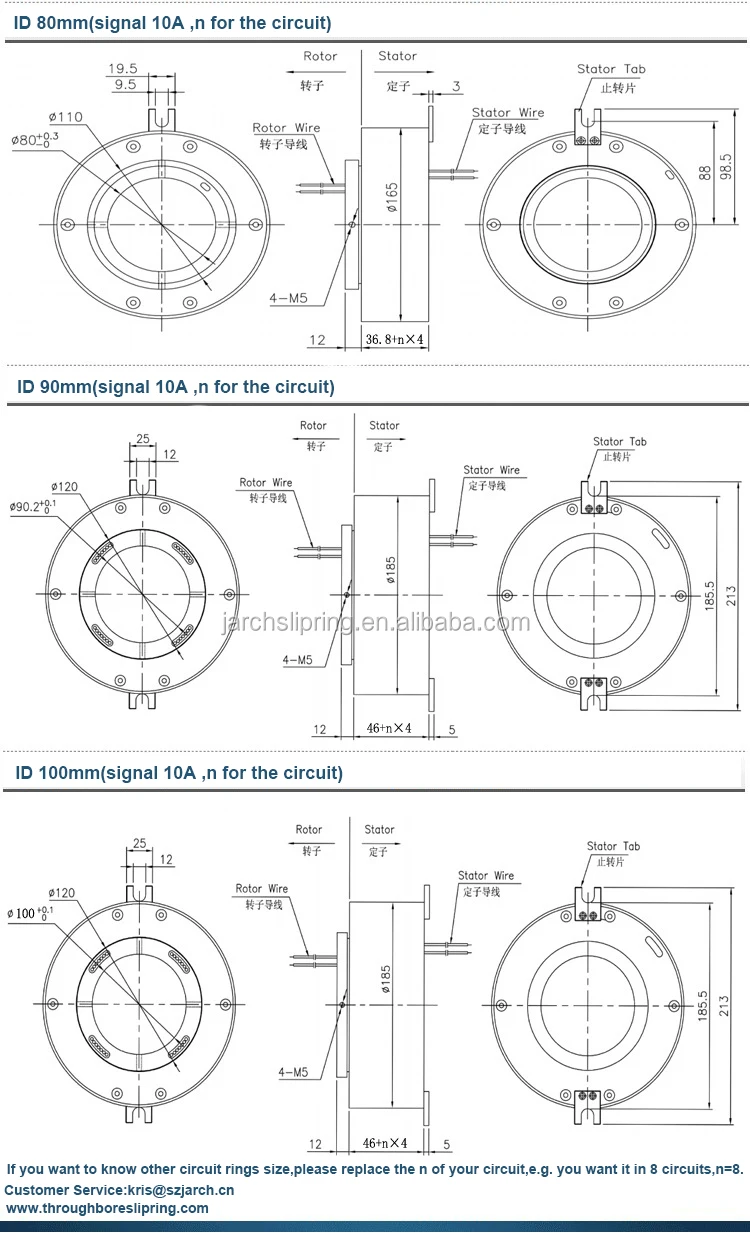

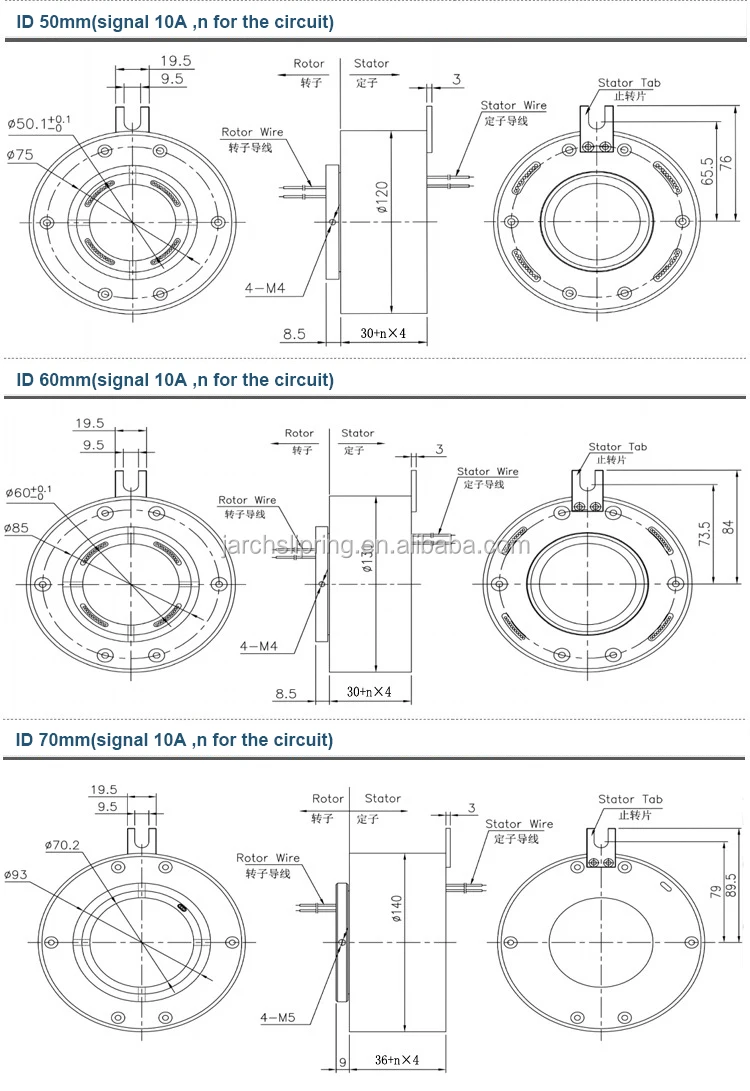

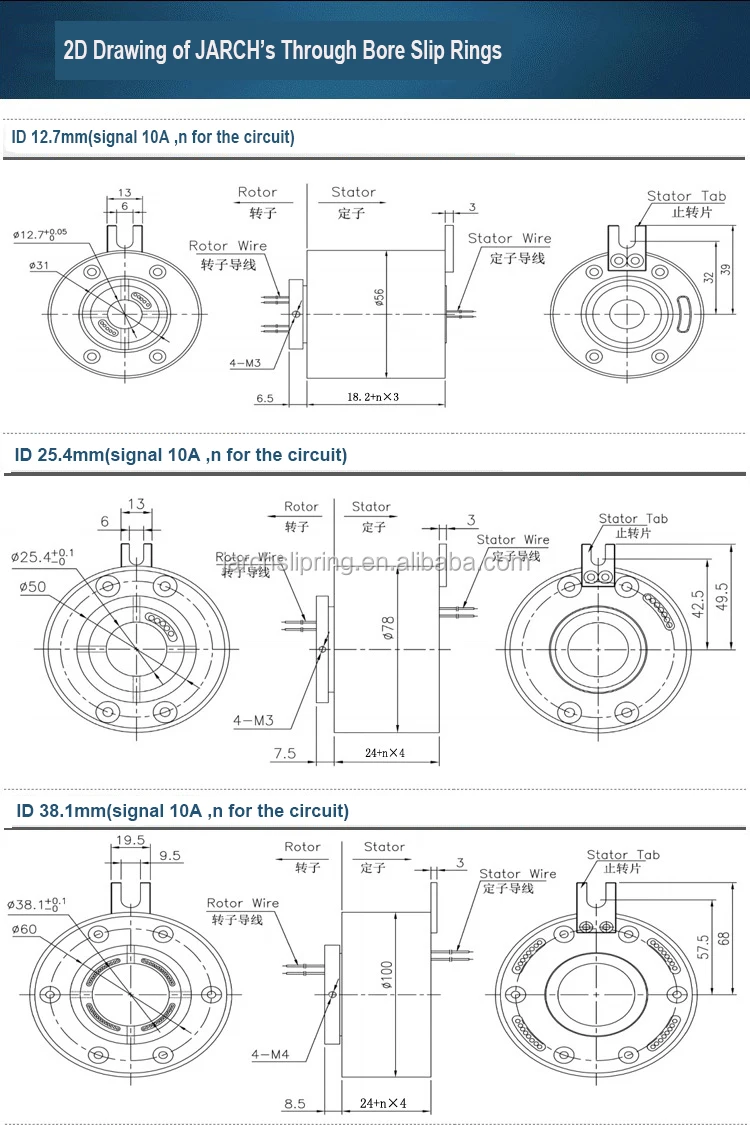

| Size | Body Diameter | Bore Diameter | Signal Count |
| TH03 | 17 mm | 3 mm | 2-8 circuits |
| TH05 | 22 mm | 4.5 mm | 2-8 circuits |
| TH12 | 54 mm | 12.7 mm | 2-24 circuits |
| TH25 | 78 mm | 25.4 mm | 2-48 circuits |
| TH38 | 99 mm | 38.1 mm | 2-48 circuits |
| TH50 | 120 mm | 50 mm | 2-72 circuits |
| TH60 | 135 mm | 60 mm | 2-96 circuits |
| TH70 | 155 mm | 70 mm | 2-96 circuits |
| TH80 | 180 mm | 80 mm | 2-96 circuits |
| TH90 | 190 mm | 90 mm | 2-96 circuits |
| TH100 | 203 mm | 100 mm | 2-96 circuits |
| TH300 | *** | *** | *** |
| TH500 | *** | *** | *** |
JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use JARCH’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.
Features & Benefits of TH Series Through Bore Slip Rings
Multiple sizes available
Modular design
Durable construction for long working life
Maintenance free operation
Easily customizable—Contact us for custom slip ring units
CE and RoHS Compliant
Common Hollow Shaft Slip Ring Applications
Wind generator slip rings
Rotary tables
Packaging machinery
Bottling machinery
Cable reel through bore slip rings
Robotic and automated equipment
Machinery turrets and tool changers
Medical equipment
Downhole inspection equipment
Pan and tilt heads
Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
