Swaco MD-3 Shaker Screen for Soild Control Equipment

Anping County Xinghuo Metal Mesh Factory
Swaco MD-3 Shaker Screen for Soild Control Equipment thumbnail-1
Swaco MD-3 Shaker Screen for Soild Control Equipment thumbnail-2
Swaco MD-3 Shaker Screen for Soild Control Equipment thumbnail-3
Swaco MD-3 Shaker Screen for Soild Control Equipment thumbnail-4
Swaco MD-3 Shaker Screen for Soild Control Equipment photo-1

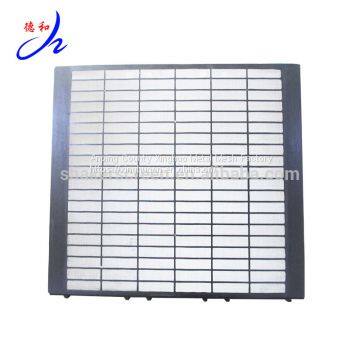

Swaco MD-3 Shaker Screen for Soild Control Equipment photo-2

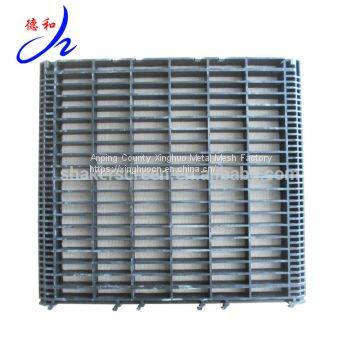

Swaco MD-3 Shaker Screen for Soild Control Equipment photo-3

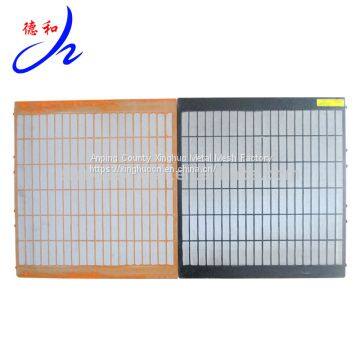

Swaco MD-3 Shaker Screen for Soild Control Equipment photo-4
US$ 50 - 80 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
XH
Place of Origin:
China
Model Number:
Swaco MD-3
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tian jin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XH
Place of Origin China
Model Number Swaco MD-3
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Woven Wire Mesh
Technique Woven
Weave Style Plain Weave
Quick Details

  • Condition:

  • New

  • Type:

  • Linear

  • Application:

  • Ore, mud cleaning system

  • Place of Origin:

  • Hebei, China

  • Brand Name:

  • XINGHUO

  • Model Number:

  • JMONXR105C

  • Voltage:

  • N/A

  • Power(W):

  • N/A

  • Dimension(L*W*H):

  • 622x655x38mm

  • Weight:

  • 10kgs

  • Certification:

  • ISO9001:2008, ISO9001 & API

  • Name:

  • Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

  • Mesh material:

  • ss304 and ss316

  • Body material:

  • steel Q235

  • Mesh type:

  • XL XR DX HP

  • Mesh range:

  • 20-325

  • Number of Layers:

  • 2 or 3

  • Services time:

  • 7-10 days

  • Frame color:

  • black and orange

  • After-sales Service Provided:

  • Overseas third-party support available

  • Warranty:

  • Delivery Time
Supply Ability

  • Supply Ability:

  • 40000 Piece/Pieces per Year Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

Packaging & Delivery

  • Packaging Details

  • inside carton box, outside wooden case, according the customer's requirement

  • Port

  • Tianjin

  • Lead Time :

  • Shipped in 15 days after payment

Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers
Product Description

The MD screens were designed in tandem, to take full advantage of the technology available through the use of composite materials, while maximizing shaker perfomance. The Xinghuo composite screens for MD series shakers feature a novel self-latching design that maitains screen-to-screen seal and allows screens to be removed as a unit with no tools required.

Swaco MD-3 Series Screen

Mesh

API20---API450

Dimension

Length: 655mm

Width: 622mm

Weight

10 kgs

Screen layer

2 or 3 Layers

Wire mesh material

S.S304 ,S.S316 (Customizable)

Frame material

Composite material

Detailed Images

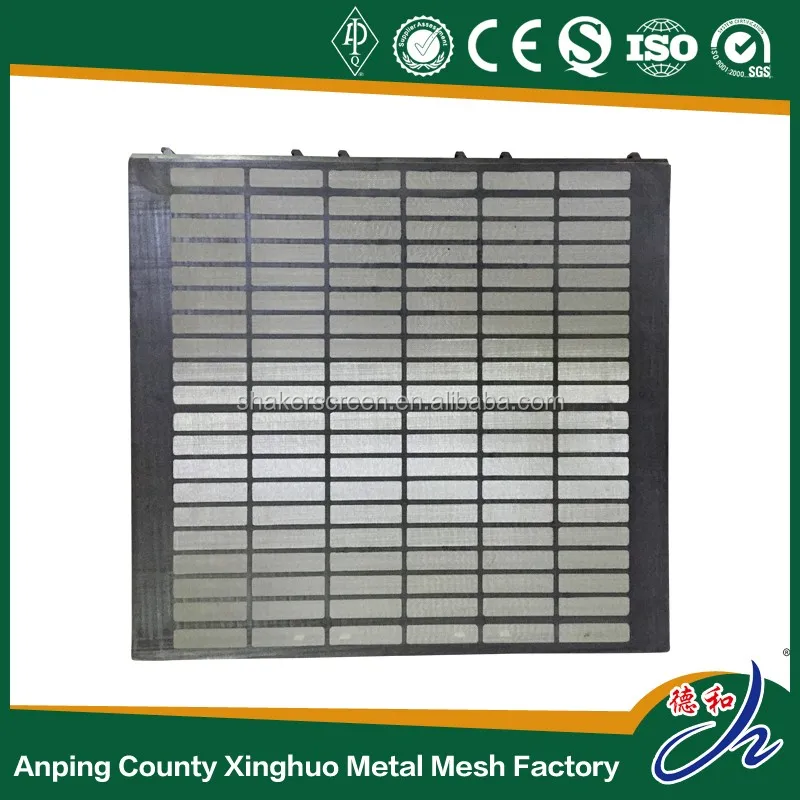

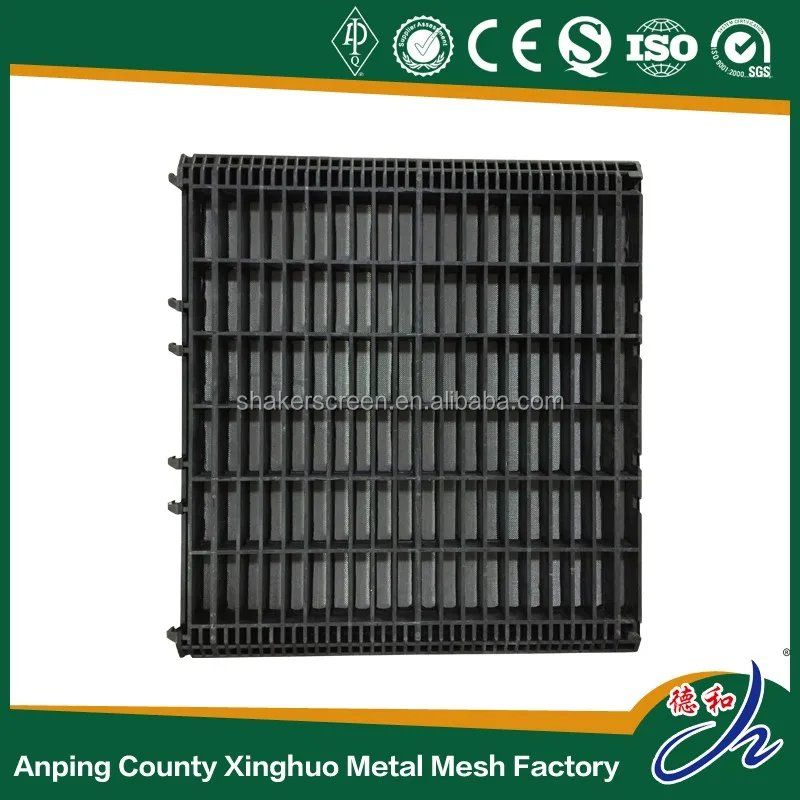

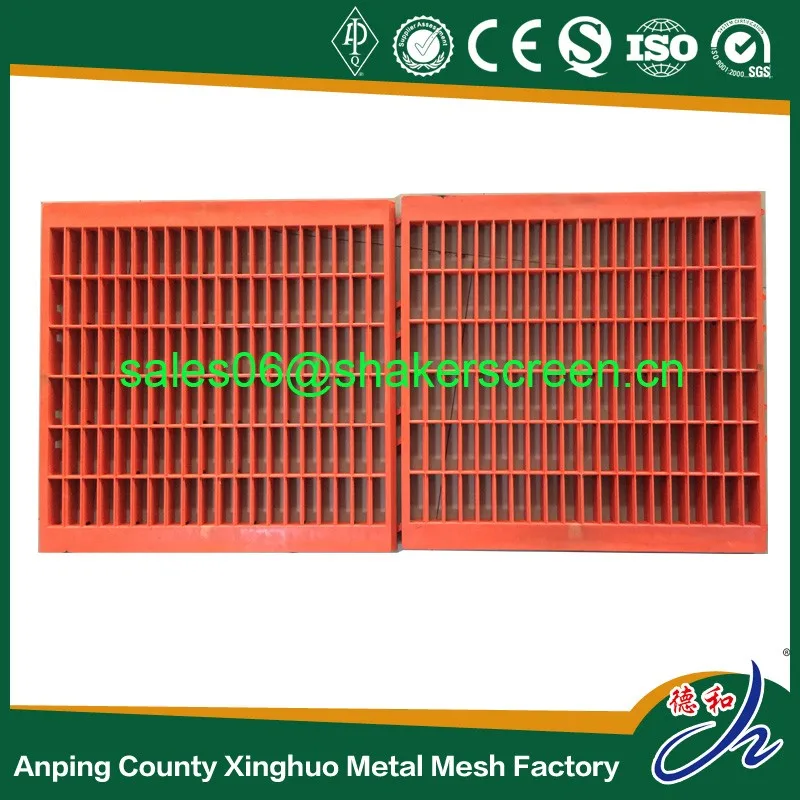

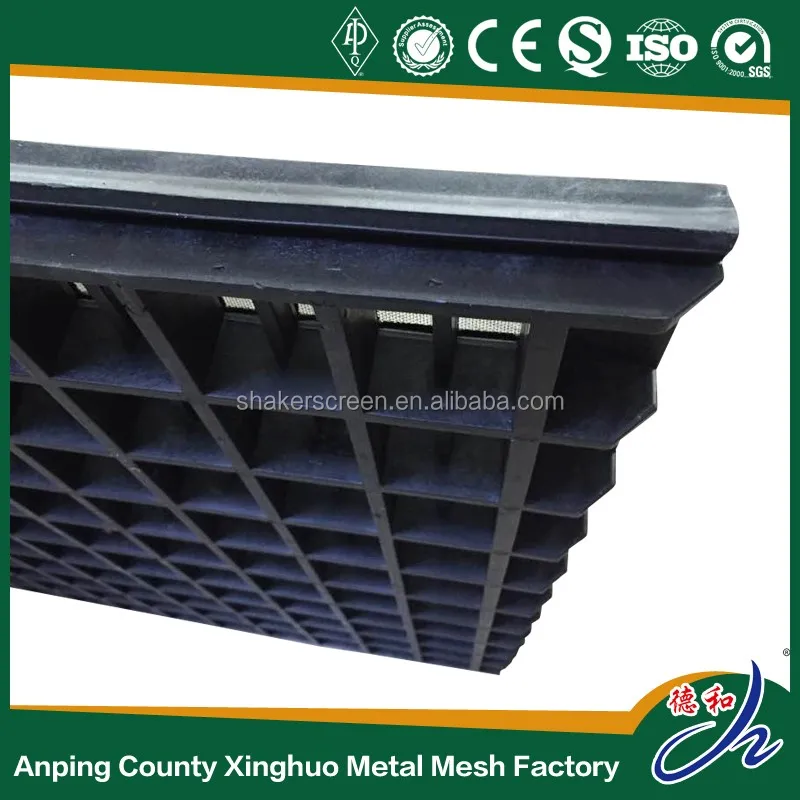

Swaco MD-3 Shale Shaker Screen

Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

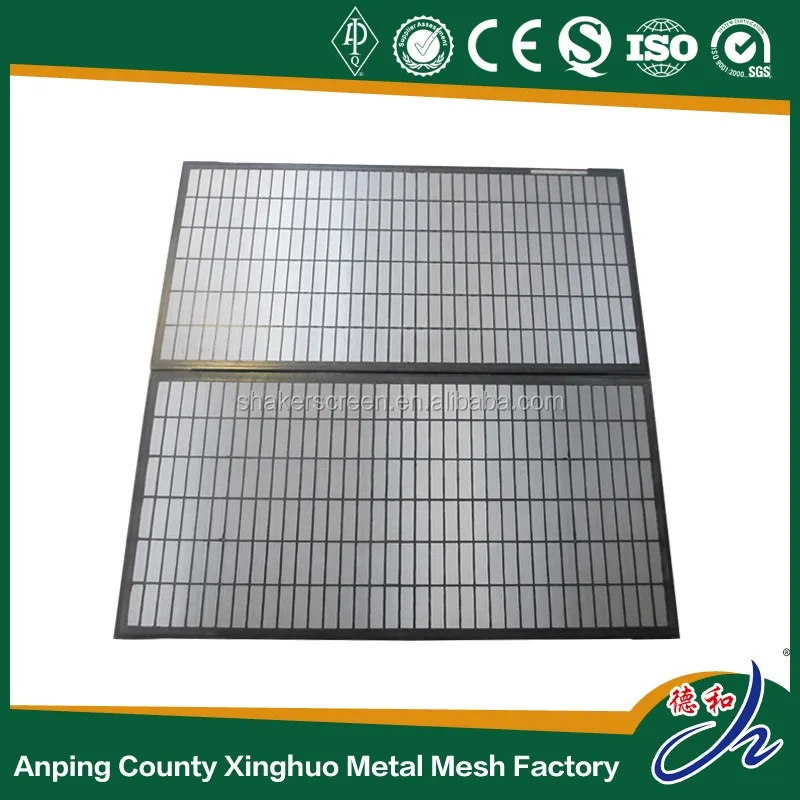

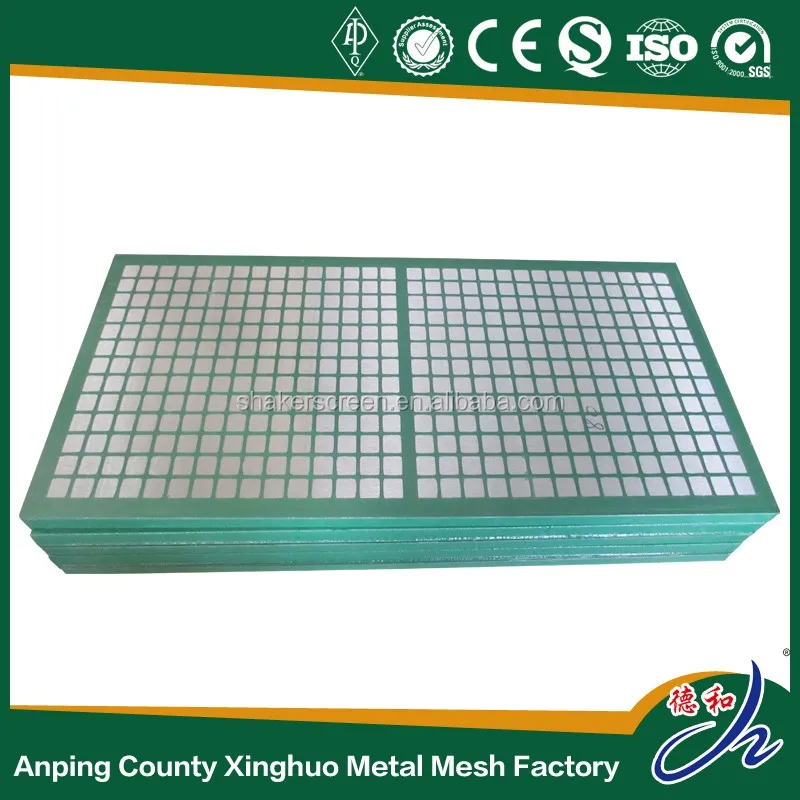

Swaco Mongoose Shale Shaker Screen

Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. There are common pre-tensioned steel frame screen and composite frame screen.  Composite frame screen have longer service life, better appearance, and  convenience on operaion. Both steel frame and composite frame screen have main parameters as below.



Swaco Mongoose Series Screen

Mesh

API20---API450

Dimension

Length:1165mm (45 9/10”)

Width: 585mm (23”)

Weight

Steel frame: 13kg (28.6lb)

Composite frame: 12kg (26.4lb)

Screen layer

2 or 3 Layers

Wire mesh material

S.S304 ,S.S316 (Customizable)

Frame material

Carbon steel, Composite material



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

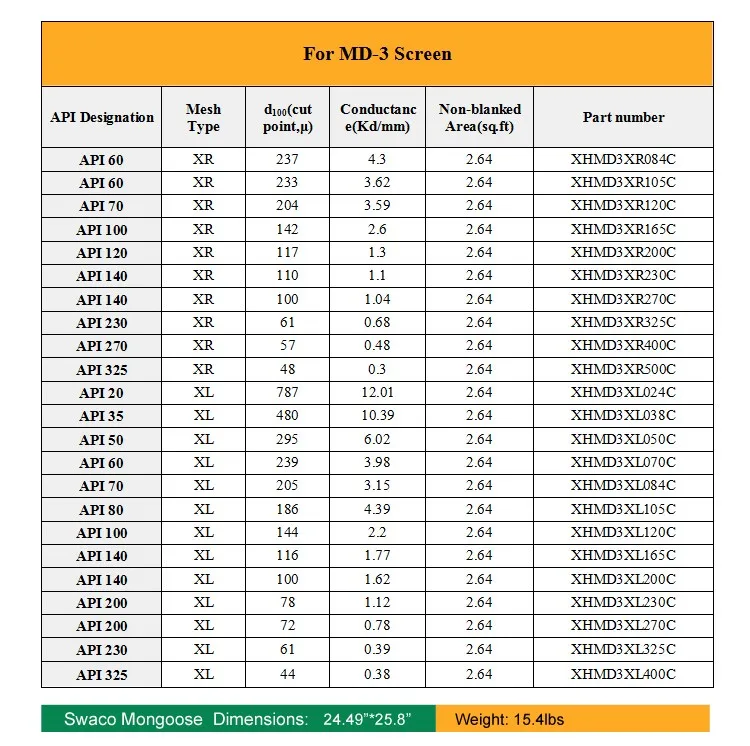

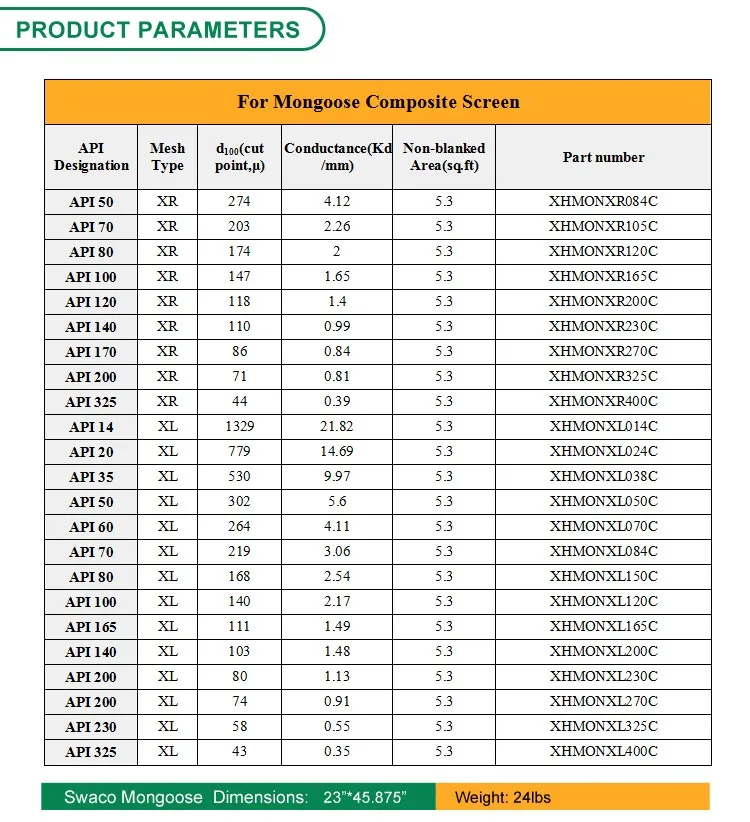

Product Parameters

Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers



Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

Company Information



Certifications



Product Uses

 Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

Packaging & Shipping

Swaco MD-3 Shaker Screen to MD-3 triple-deck shakers

FAQ




Product Tags: shale shaker screen , vibrating screen , oil drilling equipment
