600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control

600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control thumbnail-1
600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control thumbnail-2
600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control thumbnail-3
600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control photo-1

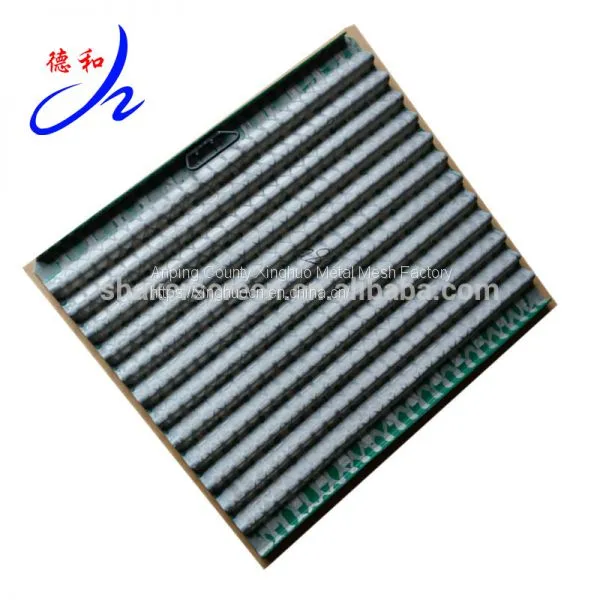

600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control photo-2

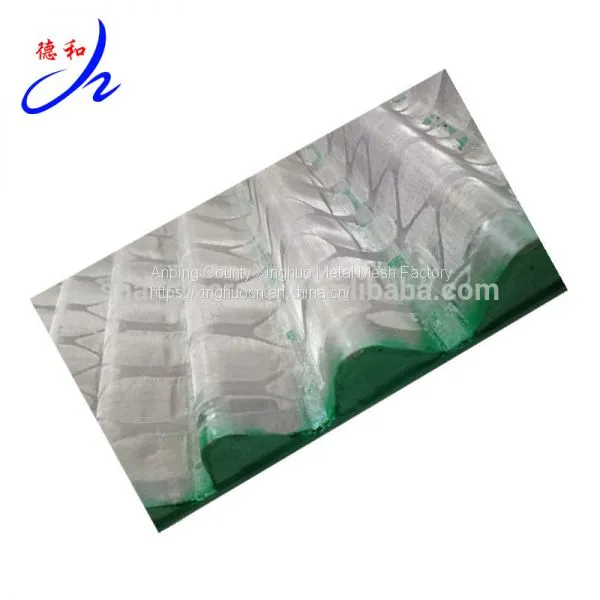

600 Wave Vibrating Screen Shale Shaker Screen for Drilling Solid Control photo-3
US$ 50 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Xinghuo
Place of Origin:
China
Model Number:
600 weave
Contact Supplier Request Quote Chat Now
Anping County Xinghuo Metal Mesh Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Tian jin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Xinghuo
Place of Origin China
Model Number 600 weave
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Screen
Technique Woven
Weave Style Plain Weave
Overview
Quick Details

  • Place of Origin:

  • Hebei, China

  • Brand Name:

  • Xinghuo

  • Model Number:

  • Screen

  • Usage:

  • Solid Filter

  • Type:

  • Filter Elements

  • Material:

  • Metal

  • Hole Shape:

  • Hexagonal

  • Filter Rating:

  • 99%, 99%

  • Thickness:

  • 28 mm

  • Length:

  • 710 mm

  • Width:

  • 626 mm

  • Product name:

  • 600 Wave vibrating screen shale shaker screen

  • Color:

  • Green

  • Certificate:

  • ISO9001

  • Feature:

  • High Tension

  • Weight:

  • 7 kg

  • Shape:

  • Rectangle

  • Use:

  • Filtration Industry

  • Sample:

  • Avaliable

  • Mesh count:

  • 20-325 mesh
Supply Ability

  • Supply Ability:

  • 50000 Piece/Pieces per Year 600 Wave vibrating screen shale shaker screen for drilling solid

Packaging & Delivery

  • Packaging Details

  • 2 pieces one carton, 20 pieces one wooden box,
    according to clients requirement

  • Port

  • Tianjin Port

600 Wave vibrating screen shale shaker screen for drilling solid control

Product Description

The shaker screen are constructcted with two or three 304 or 316 stainless steelwirecloth layers, after compounded and bended, with a steel backing plate combined together. The wire cloth and bottom steel backing plate combined tightly, increase the filtering area 120% to 150% more tahn Flat Panel Screen, so get an better effective.



Item API RP 13C Designation layers Cut Point 100(micron) Conductance:kd/mm Non-Blanked Area:sq.ft Mesh Type Oil, Rust & Delamination Resistance
600 Series Shale Shaker Screen API 35 2/3 477.5 7.35 4.03 DX/XL Water base oil-base Rust grade:A
API 40 2/3 411.7 7.00 4.03 DX/XL
API 45 2/3 341.1 6.15 4.03 DX/XL
API 50 2/3 288.5 5.44 4.03 DX/XL
API 60 2/3 243.7 4.29 4.03 DX/XL
API 70 2/3 202.7 3.53 4.03 DX/XL
API 80 2/3 170.4 2.89 4.03 DX/XL
API 100 2/3 142.0 2.14 4.03 DX/XL
API 120 2/3 117.8 1.69 4.03 DX/XL
API 140 2/3 104.0 1.76 4.03 DX/XL
API 170 2/3 85.4 1.24 4.03 DX/XL
API 200 2/3 73.3 0.92 4.03 DX/XL

 600 Wave vibrating screen shale shaker screen for drilling solid control

Products details



The screen's material is epoxy glue.
About the types of wire cloth, we can provide DX, HP, DF, XR, XL, RHB and so on. We can provide three-layer even four-layer all types of screen cloth.

The material of steel frame is Q235. The composite material is modified polypropylene.



Products advantages

1. Corrosion-resisting, heat-resisting, wear-resisting

2. long working life, higher flow rate

3. easy disassembly, rating of temperature, good performance

4. conductivity (powder) liquid, trapping (dreg) effect is good

5. current design, technical expertise

6. API compliant shaker screens



Our clients

600 Wave vibrating screen shale shaker screen for drilling solid control600 Wave vibrating screen shale shaker screen for drilling solid control



600 Wave vibrating screen shale shaker screen for drilling solid control
