Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen

Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen thumbnail-1
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen thumbnail-2
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen thumbnail-3
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen thumbnail-4
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen thumbnail-5
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen photo-1
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen photo-2
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen photo-3
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen photo-4
Plastic Frame Swaco Mongoose/Brandt VSM 300 Shaker Screen photo-5
US$ 50 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SWACO
Place of Origin:
China
Model Number:
Mongoose
Contact Supplier Request Quote Chat Now
Anping County Xinghuo Metal Mesh Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Tian jin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SWACO
Place of Origin China
Model Number Mongoose
Material Other, Plastic Frame
Type Other, Plastic Frame
Application Filters
Overview
Quick Details

  • Condition:

  • New

  • Type:

  • Linear

  • Application:

  • Ore, mud filter

  • Place of Origin:

  • Hebei, China

  • Brand Name:

  • XINGHUO

  • Model Number:

  • XHXR084J

  • Voltage:

  • N/A

  • Power(W):

  • N/A

  • Dimension(L*W*H):

  • 1165x585mm

  • Weight:

  • 10kgs

  • Certification:

  • ISO9001:2008, ISO9001 & API

  • Mesh material:

  • ss304 and ss316

  • Body material:

  • composite material

  • Mesh type:

  • XL XR DX HP

  • Mesh range:

  • 20-325

  • Number of Layers:

  • 2 or 3

  • Services time:

  • 7-10 days

  • Frame color:

  • black

  • Product Name:

  • Swaco Mongoose/Brandt VSM 300 Plastic Frame Shaker Screen

  • After-sales Service Provided:

  • Overseas third-party support available

  • Warranty:

  • Delivery Time
Supply Ability

  • Supply Ability:

  • 40000 Piece/Pieces per Year

Packaging & Delivery

  • Packaging Details

  • inside carton box, outside wooden case, according the customer's requirement

  • Port

  • Tianjin

  • Lead Time :

  • Shipped in 15 days after payment

Product Description

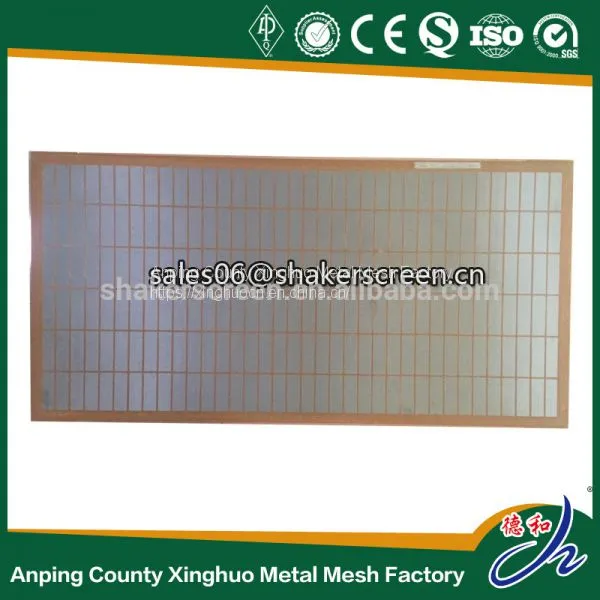

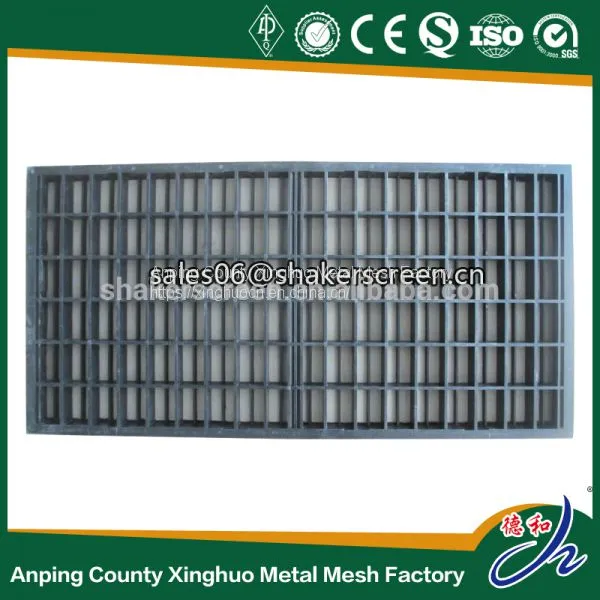

Swaco Mongoose Plastic Frame Shaker Screen

Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. There are common pre-tensioned steel frame screen and composite frame screen.  Composite frame screen have longer service life, better appearance, and  convenience on operaion. Both steel frame and composite frame screen have main parameters as below.

Swaco Mongoose Series Screen
Mesh
API20---API450
Dimension
Length:1165mm (45 9/10”)
Width: 585mm (23”)
Weight
Composite frame: 12kg (26.4lb)
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 ,S.S316 (Customizable)
Frame material
Carbon steel, Composite material
V300 and V100 Shale Shaker Screen for Brandt VSM300 Shakers

The new and improved Xinghuo composite replacement screen to fit the Brandt VSM 300 brand shaker takes the best screen for this shale shaker to the next level of performance. This screens uses a new frame design that features several improvements over Duraflo composite screens. It is lighter, more easily repaired, promotes longer screen life and is easier to remove. Xinghuo composite screens are available with ultra-fine(XL) and XR mesh, giving operators screening flexibility in addition to an overall-improved product.

Composite Brandt VSM300 Sclping Screen
Mesh
API20---API325
Dimension
Length: 940mm
Width: 676mm
Weight
10 kgs
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 ,S.S316 (Customizable)
Frame material
Composite material
Composite Brandt VSM300 Primary Screen
Mesh
API20---API325
Dimension
Length: 885mm
Width: 686mm
Weight
10kgs
Screen layer
2 or 3 Layers
Wire mesh material
S.S304 & SS316(Customizable)
Frame material
Composite material
Composite Brandt VSM300 Secondary Screen
Mesh
API20--API325
Dimension
Length: 686mm
Width: 208mm
Weight
3kgs
Screen Layer
2 or 3 Layers
Wire material
SS304 & SS316(Customizable)
Frame material
composite material

Swaco Mongoose Shaker Screen

Composite Brandt VSM300 Shale Shaker Screen
Main Benefits

■ Improved shaker performance, immediately and long-term

■ Drier cuttings and lower disposal volums

■ Improved ROP and drilling fluid recovery

■ Better drilling-fluid performance and longer life

■ Better solids handling

■ Cuts costs

■ Reduced drilling waste volumes

■ Longer screen life, better screen performance

Certifications
Detailed Images
Part number
API Designation
Mesh Type
d100(cut point,μ)
Conductance
(Kd/mm)
Non-blanked Area(sq.ft)
Part number
API 50
XR
275
4.63
4.62
XH300XR084J
API 60
XR
233
4.09
4.62
XH300XR105J
API 80
XR
193
3.35
4.62
XH300XR120J
API 100
XR
160
2.66
4.62
XH300XR145J
API 100
XR
142
2.63
4.62
XH300XR165J
API 100
XR
140
2.13
4.62
XH300XR180J
API 120
XR
117
1.87
4.62
XH300XR200J
API 140
XR
110
1.21
4.62
XH300XR230J
API 170
XR
88
0.99
4.62
XH300XR270J
API 230
XR
61
0.66
4.62
XH300XR325J
API 270
XR
57
0.51
4.62
XH300XR400J
API 325
XR
43
0.38
4.62
XH300XR500J
Our Service
Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine

* Helping the customer to solve the problem.

Packing & Delivery
Packaging
Packaging Details
1pc one carton box.
10 carton boxes one wooden case.

Contact Us

Bella lee

Anping county Xinghuo Metal Mesh Factory.

ADD:Diwo Village, Anping County, China

Fax: 0086-311-80979616

Phone:+86-13363824235
