Latest technology steel door frame roll forming machine Hot Selling Door Frame Roll Forming Machine

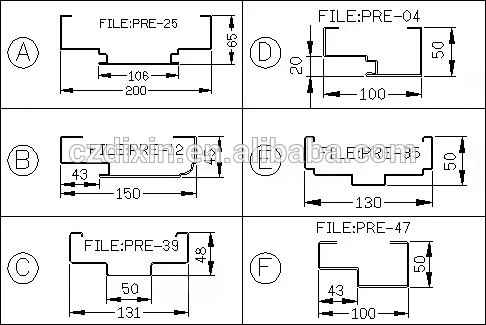

Drawing

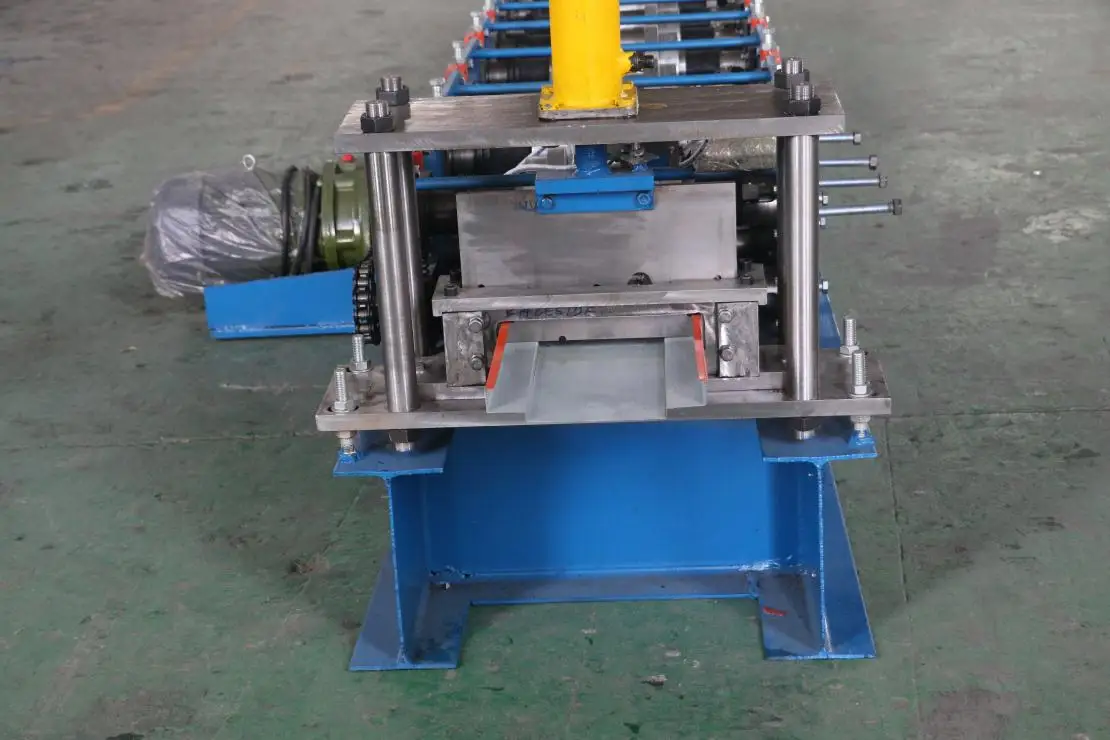

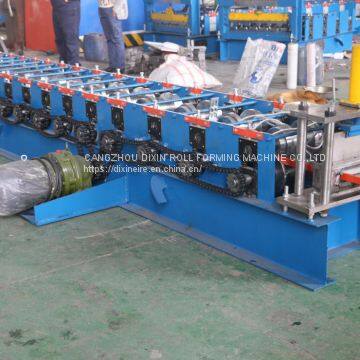

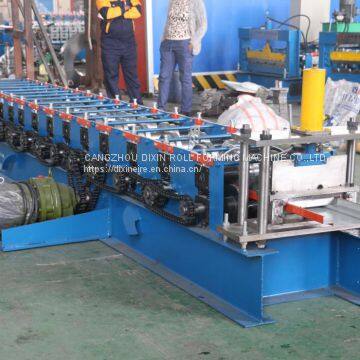

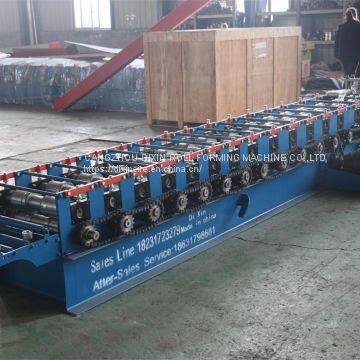

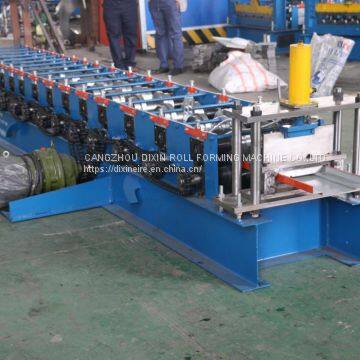

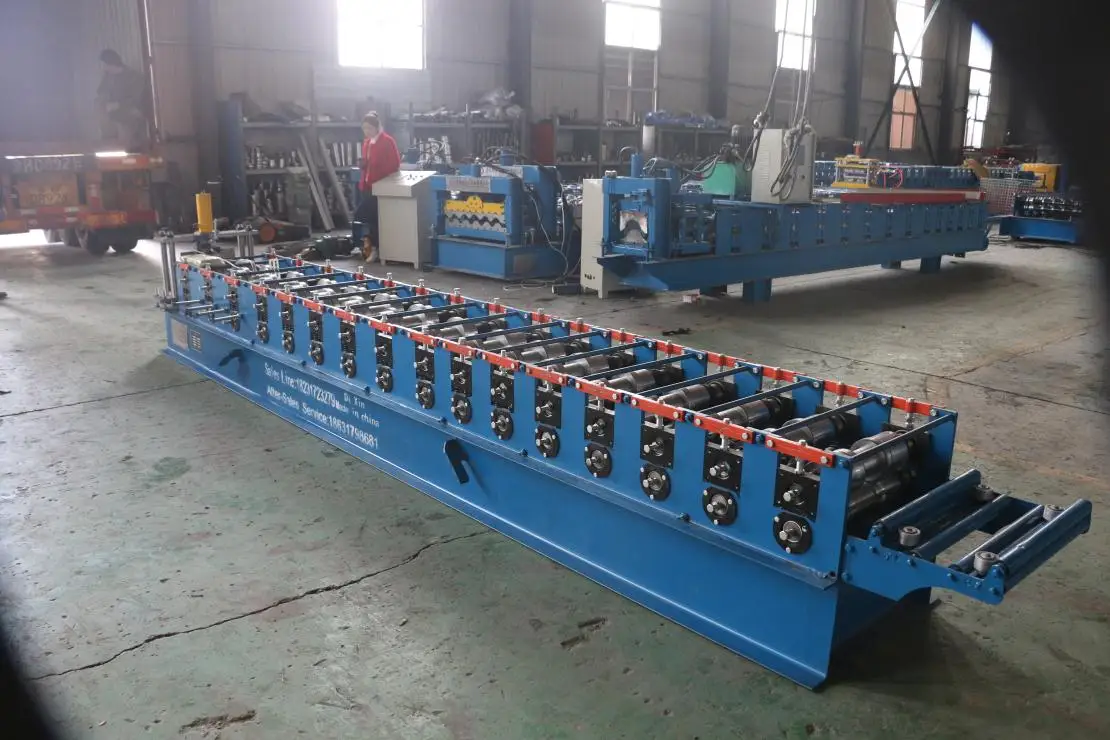

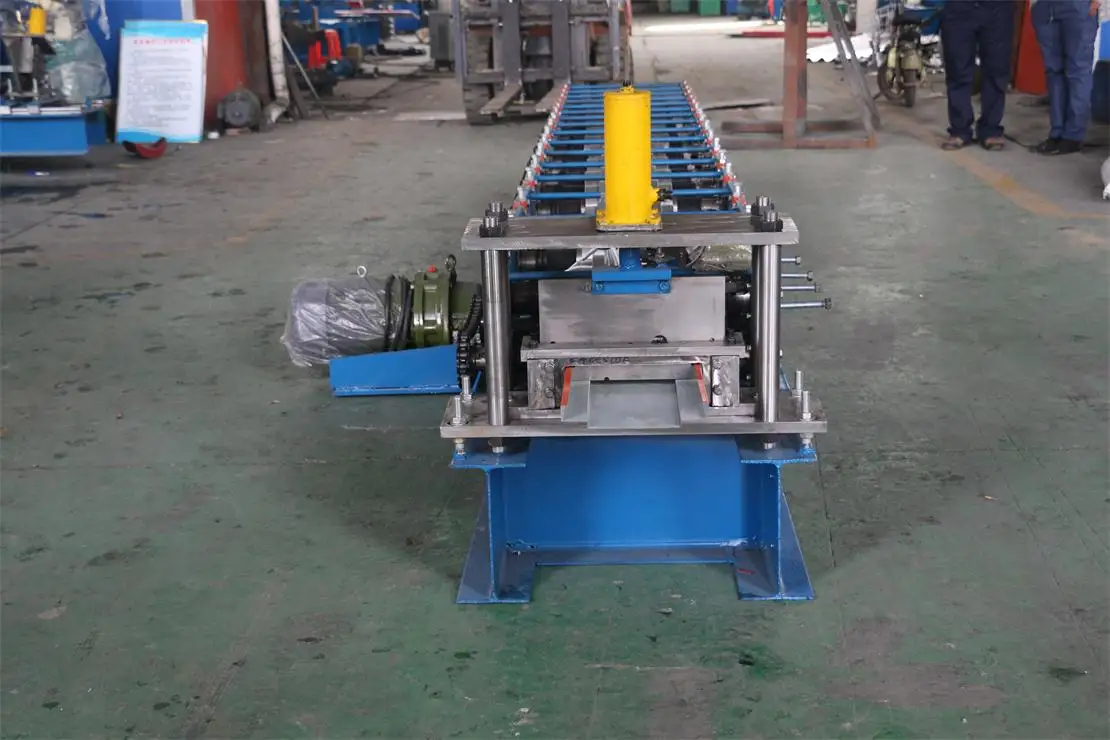

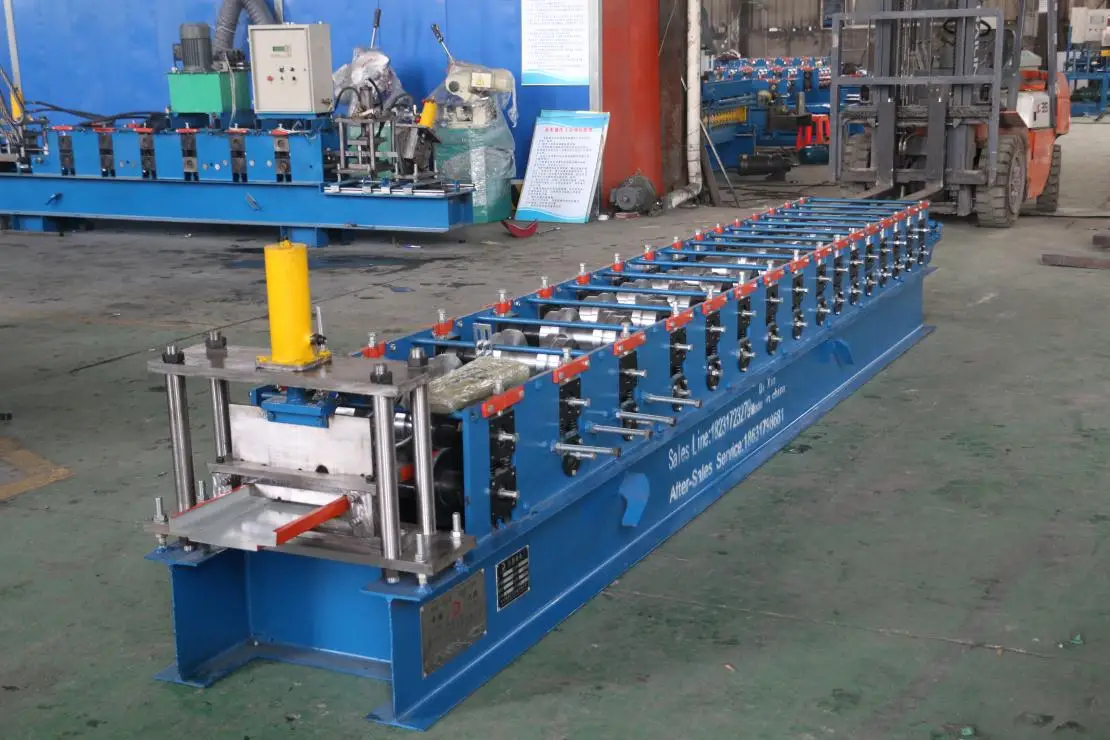

Machine Picturs
Machine Parameter
No. |
Type |
Specification |
|
|
1 |
Row Material |
Type |
Colored steel plate, Galvanized board, Aluminum plate ect |
Feeding width |
122mm or According to client’s requirement |
||
Thickness |
0.3-0.8mm |
||
|
2 |
Main Body |
Forming roller station |
12 Stations |
Straight roller station |
3 Stations ( Up layer 2 rollers , down layer 3 rollers ) |
||
Diameter of shaft |
40mm |
||
Shaft material |
High grade 45# steel |
||
Roller material |
High grade 45# steel , hard treatment and polishing ( plated chrome on surface ) |
||
Main body frame |
Whole set of square pipe |
||
Frame thickenss |
14 mm |
||
Working speed |
8-15 m/min |
||
Size (L*W*H) |
About 6800*850*1310mm |
||
Weight |
About 2.5 tons |
||
|
3 |
Power |
Motor power |
3 kw |
Hydraulic power |
3 kw |
||
Voltage |
380V 50Hz 3phases or Customerization |
||
Drving Way |
By Gear |
||
|
4 |
PLC Control System |
Language |
English and Chinese |
Brand Of PLC |
Delta brand ( Touch Screen ) |
||
Operation |
Manual and Automatic ( Two Type ) |
||
Transducer |
Delta brand |
||
|
5 |
Cutting Device |
Cutting Type |
Hydraulic Cutting |
Blade of Cutting |
Cr12 , quenching treatment |
||
Cutting Tolerance |
± 1mm |
||

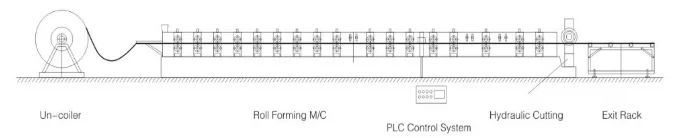

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
Cangzhou dixin roll forming machinery is a china manufacturer of metal steel cold roll forming machines, bending machines, cutting machines, and slitting machines.
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
If you have any questions for roll forming machine ,send us your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
