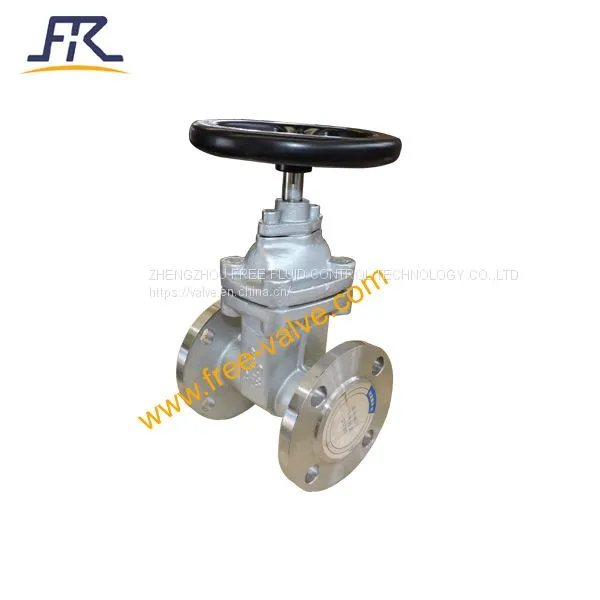

Help CenterStainless Steel Rubber Wedge Non-Rising Stem Gate Valve
Related Products
-
Stainless Steel Body Industrial Resilient Seated Gate Valve With Non Rising StemUS$ 100 - 5000MOQ: 1 Piece -
Non-Rising Stem Resilient Seated Gate Valve for Water SystemUS$ 100 - 5000MOQ: 1 Piece
-
Non Rising Stem Resilient Seated Gate Valve ANSI Flange EndsUS$ 100 - 5000MOQ: 1 Piece
-
ANSI/DIN Stainless Steel /Ductile Iron Non Rising Stem Gate ValveUS$ 100 - 5000MOQ: 1 Piece
-
Stainless Steel Non-Rising Stem Flange End Gate Valve 150LbUS$ 100 - 5000MOQ: 1 Piece
FREE-VALVE’s stainless steel Rubber Wedge Non-Rising Stem Gate Valves are designed with rubber coated disc to provide excellent sealing features by the resilient deformation of the rubber.This type of gate valve has been developed in order to prevent the problems of gate valve with rising stem to save installation space, and to prevent the problems of general gate valve such as rusting and leakage.
Features
1. The flow direction of the medium is not limited, no disturbance, no pressure reduction.
2. The valve body is cast and molded, the valve body and the valve cover are bolted, and the middle flange is sealed with a wound gasket.
3. The channel is smooth and the flow coefficient is small. The sealing surface is less scoured and eroded by the medium.
4. Stainless steel corrosion-resistant stem, trapezoidal thread rolling processing, screw teeth smooth wear, effectively reduce operating torque, improve service life.
5. High performance rubber will be all wrapped disc, valve spool matrix completely separated from the medium, no corrosion.Rubber soft seal, the whole hot vulcanization forming.
Technical Specification
1) Size Range: NPS2~NPS48,DN50~DN1200
2) Pressure Range: Class 150 /PN6 /PN10/PN16
3) Applicable Temperature: 0~120℃
4) Connection Type: Flange
5) Sealing material: EPDM
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221,EN 558
Operating Type: Manual
Application
FREE-VALVE’s stainless steel CF8 Rubber Wedge Non-Rising Stem Gate Valves are suitable for tap water applications and sewage treatment in many industries such as:Shipping Construction industry, Chemicals,Petroleum,Food industry and Power station,etc
Model:FRZ45X
Price terms:FOB,CIF,FCA,CFR
Price:100-5000USD/set
Origin:China
Wechat ID:FreeValve
Email:sales@free-valve.com
