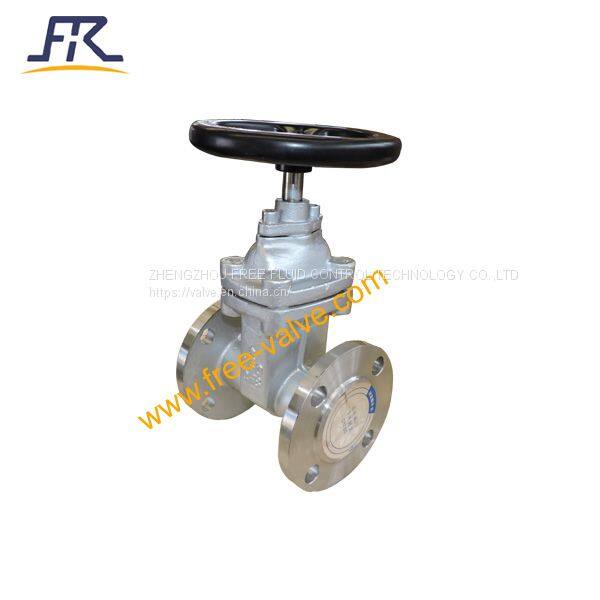

ANSI/DIN stainless steel /Ductile Iron Non Rising Stem Gate Valve
- 200 Piece / Pieces per Month
- Shanghai
- T/T L/C
- 30 days
- Stainless Steel Non-Rising Stem flange end Gate Valve 150Lb
- Resilient Seat Rising Non Rising Stem Stainless Steel Gate Valve Class150
- Carbon Steel Slide Gate Valve with handwhell
- Carbon Steel Square Slide Gate Valve with Pneumatic Cylinder Operator
- Rectangular Square Manual Slide Gate Valve with Hand Wheel Operation
- Convenient Operation Slide Knife Gate Valve with Handwheel
Product Details
Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FRZ45X |
Material: | Casting | Application: | General | Structure: | Gate |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Manual |
Port Size: | DN50~DN1200 | Media: | Base | Temperature of Media: | Medium Temperature |
Packaging Details
wooden box or other
Product Description
FREE-VALVE’s ANSI/DIN stainless steel /Ductile Iron Non Rising Stem Gate Valves are designed with rubber coated disc to provide excellent sealing features by the resilient deformation of the rubber.This type of gate valve has been developed in order to prevent the problems of gate valve with rising stem to save installation space, and to prevent the problems of general gate valve such as rusting and leakage.
Features
1. The flow direction of the medium is not limited, no disturbance, no pressure reduction.
2. The valve body is cast and molded, the valve body and the valve cover are bolted, and the middle flange is sealed with a wound gasket.
3. The channel is smooth and the flow coefficient is small. The sealing surface is less scoured and eroded by the medium.
4. Stainless steel corrosion-resistant stem, trapezoidal thread rolling processing, screw teeth smooth wear, effectively reduce operating torque, improve service life.
5. High performance rubber will be all wrapped disc, valve spool matrix completely separated from the medium, no corrosion.Rubber soft seal, the whole hot vulcanization forming.
Technical Specification
1) Size Range: NPS2~NPS48,DN50~DN1200
2) Pressure Range: Class 150 /PN6 /PN10/PN16
3) Applicable Temperature: 0~120℃
4) Connection Type: Flange
5) Sealing material: EPDM
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221,EN 558
Operating Type: Manual
Application
FREE-VALVE’s Non Rising Stem Resilient Seated Gate Valve Flange ends are suitable for tap water applications and sewage treatment in many industries such as:Shipping Construction industry, Chemicals,Petroleum,Food industry and Power station,etc
Model:FRZ45X
Price terms:FOB,CIF,FCA,CFR
Price:100-5000USD/set
Origin:China
Wechat ID:FreeValve
Email:sales@free-valve.com
