Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price

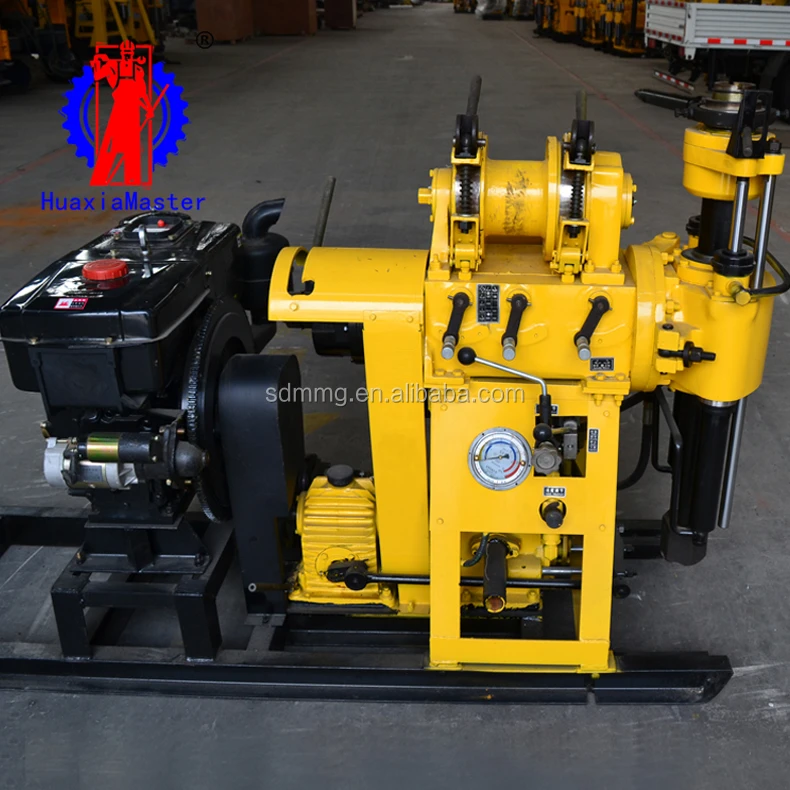

Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price photo-1
Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price photo-2
Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price photo-3
Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price photo-4
Hydraulic Borehole Water Well Drill/200m Diamond Rock Core Rig Machine HZ-200Y Digging a Well Equipment Price photo-5
US$ 3200 - 6900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
HZ-200Y
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Brand Name HuaxiaMaster
Place of Origin China
Model Number HZ-200Y
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 1100KG
Power Type Diesel
Voltage 380v
Usage Other, water well ,rock core sampling
Condition New
Power(W) 22hp
Our Company
Product Description

1.Applications of HZ-200Y



Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.

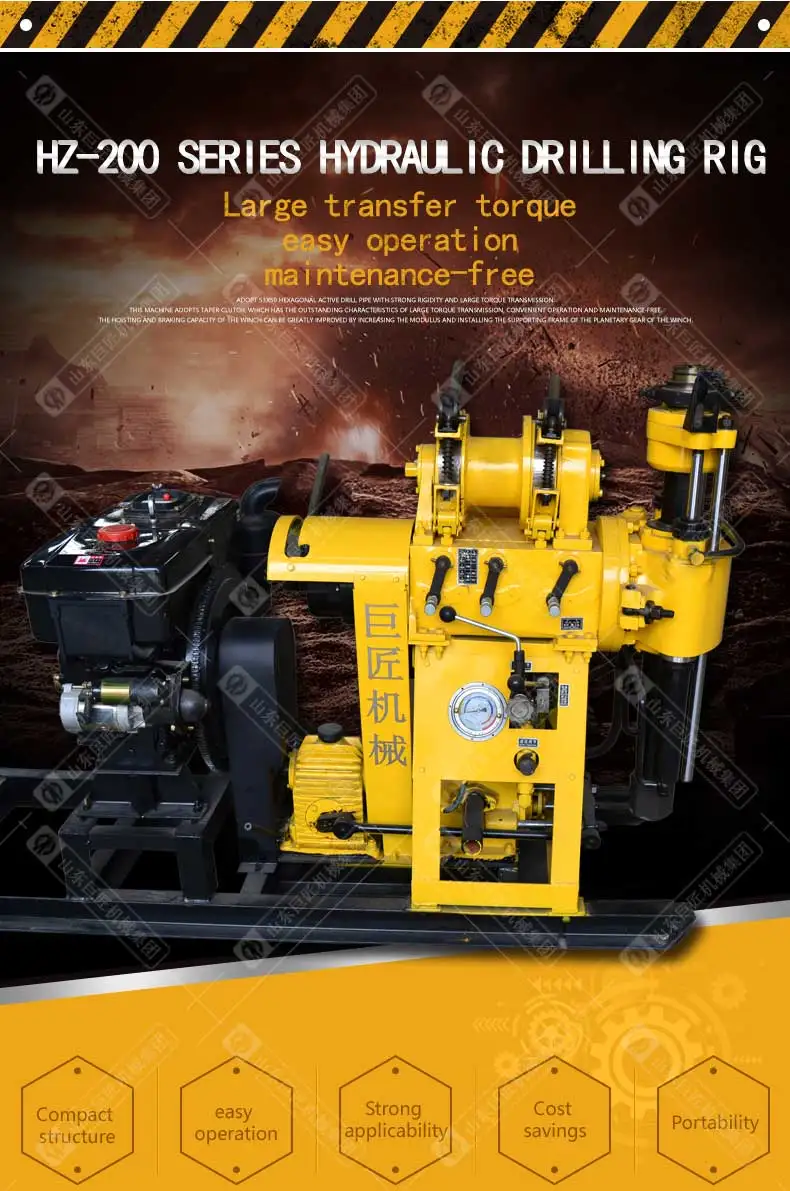

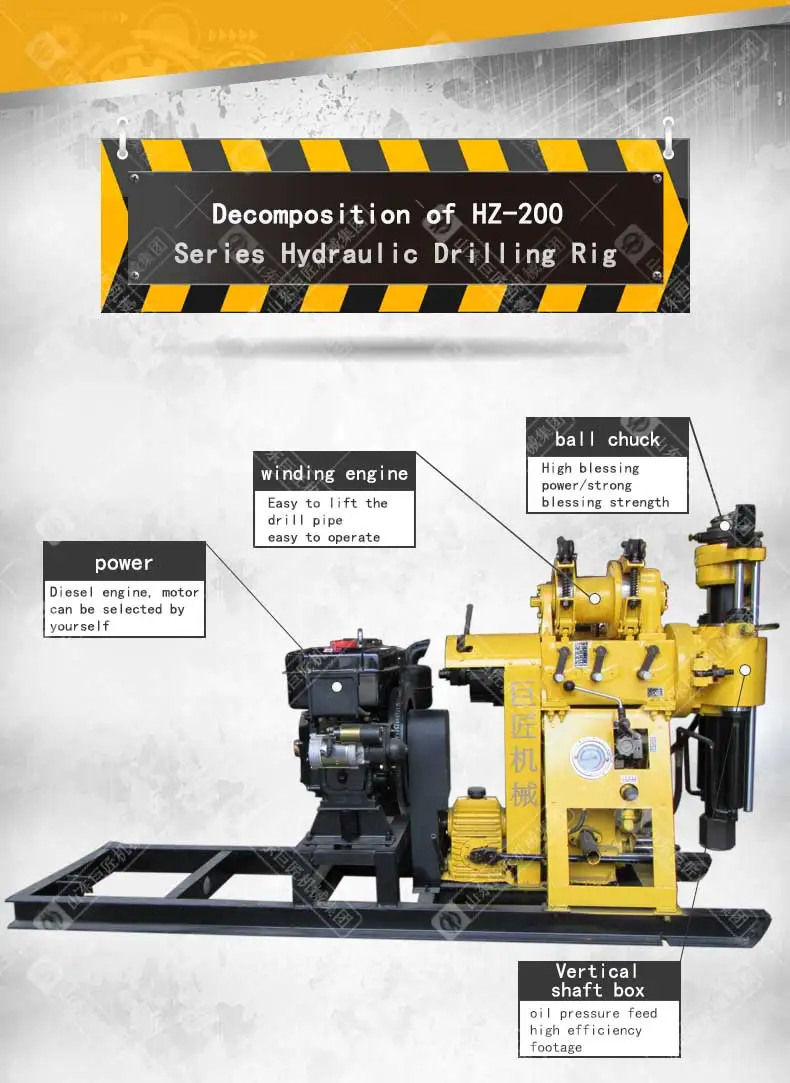

2.Features of HZ-200Y

·adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
·the machine is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
·for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
·vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.

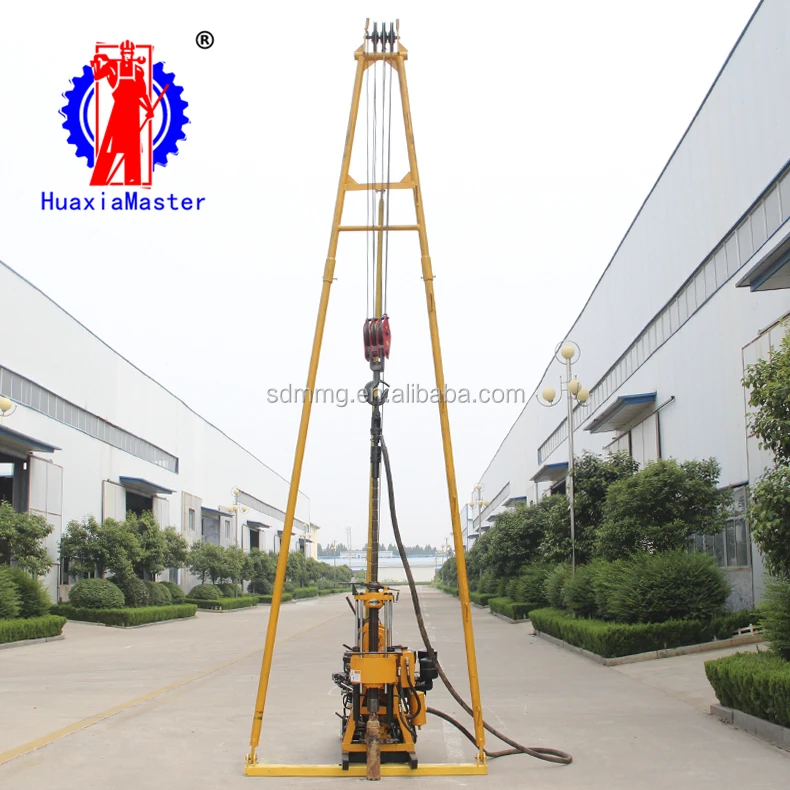

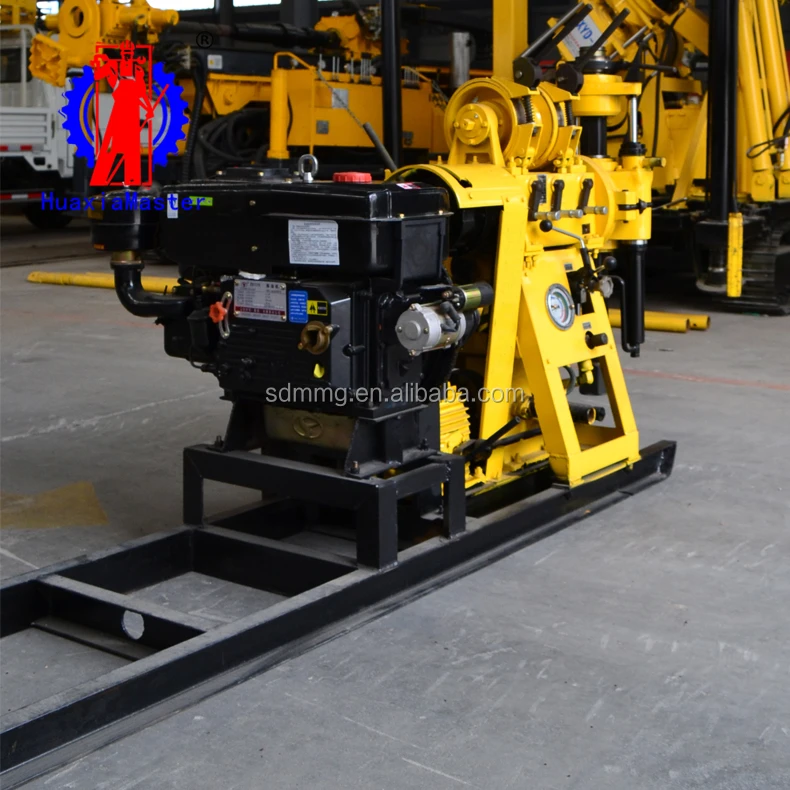

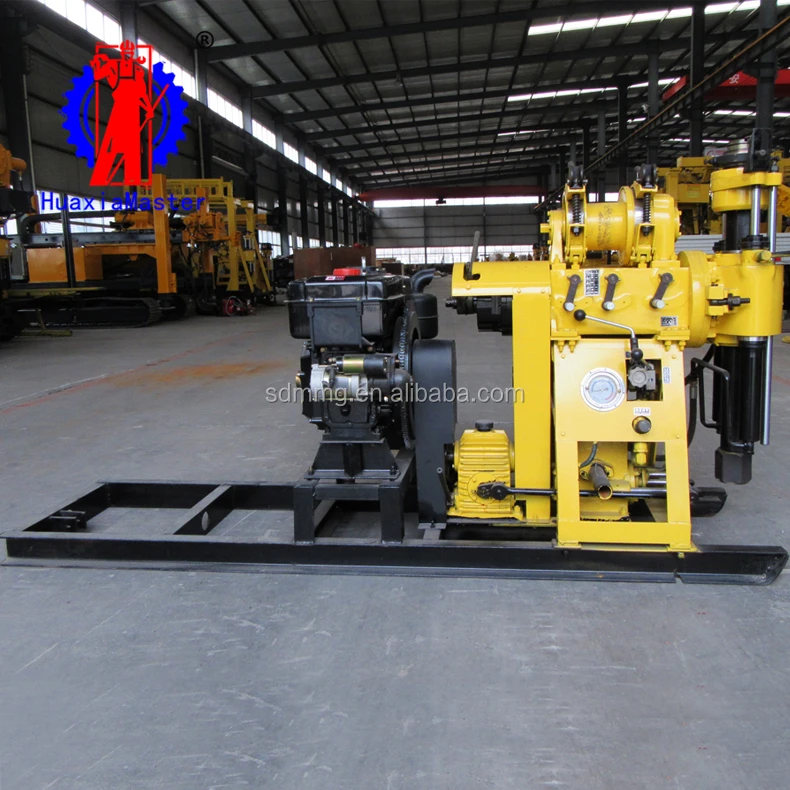

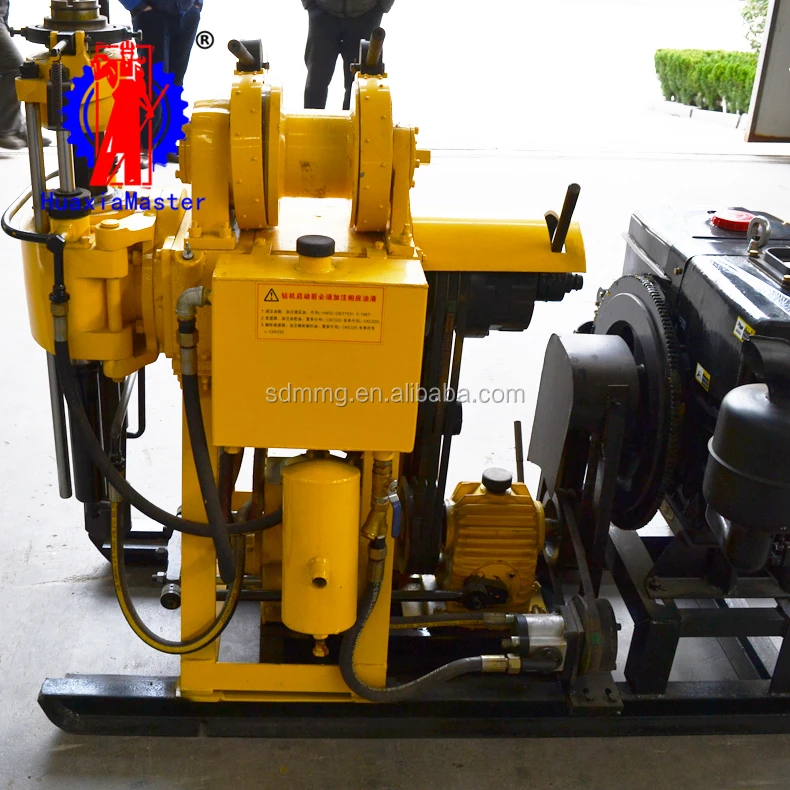

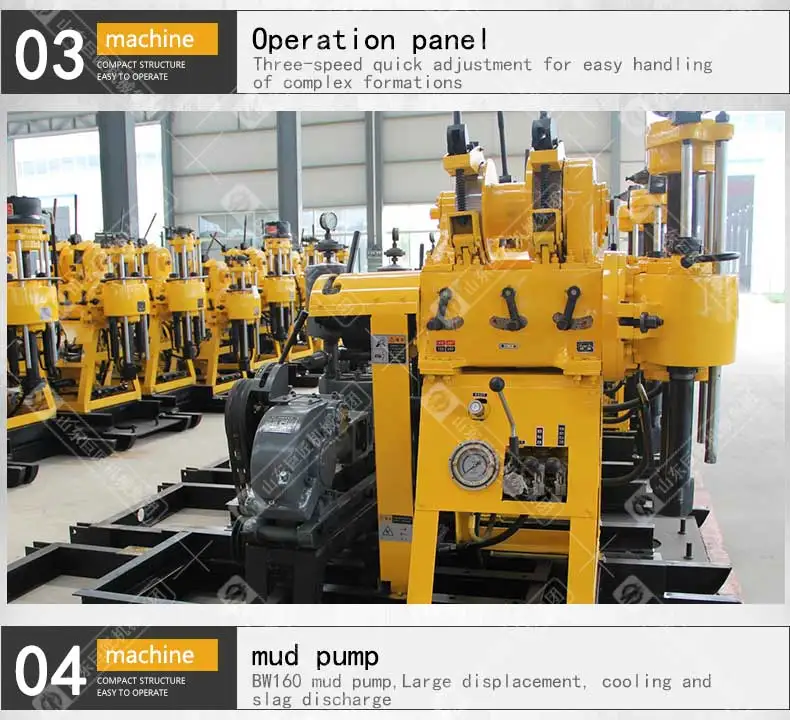

Detailed Images

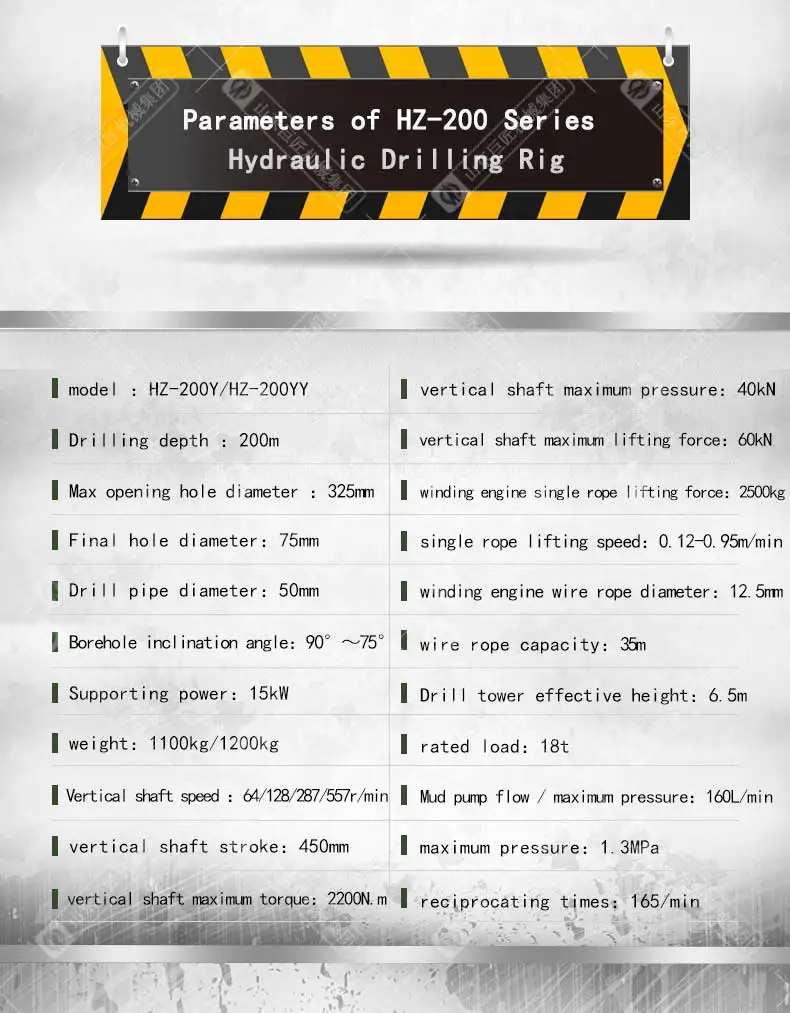

Drilling depth
200m
Drill weight(without power)
1100kg
Max open hole caliber
300mm
Triangle conveyer belt
B950*4 B1700*3
End hole caliber
75mm
The main machine moving distance
300mm
Drill rod caliber
60mm
Power
Diesel engine 22HP   Electric motor 15kw
Packing & Delivery


Product Tags: civil water well machine , Hydraulic Rotary Drill , 200m depth core drilling equipment
