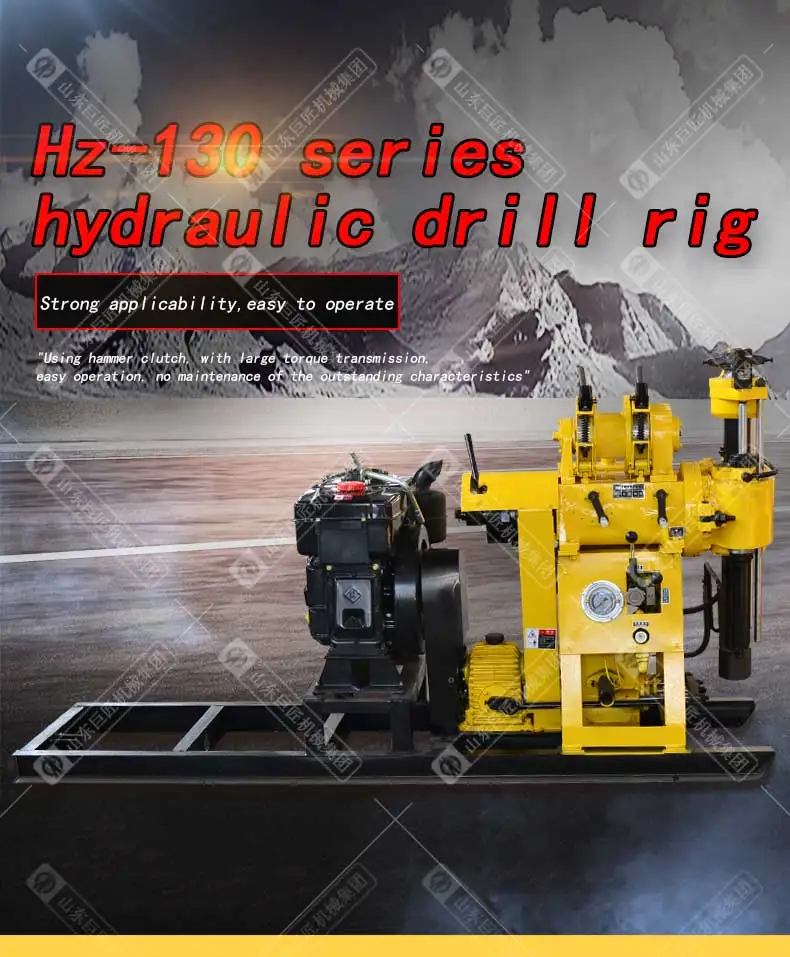

China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring

China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring photo-1
China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring photo-2

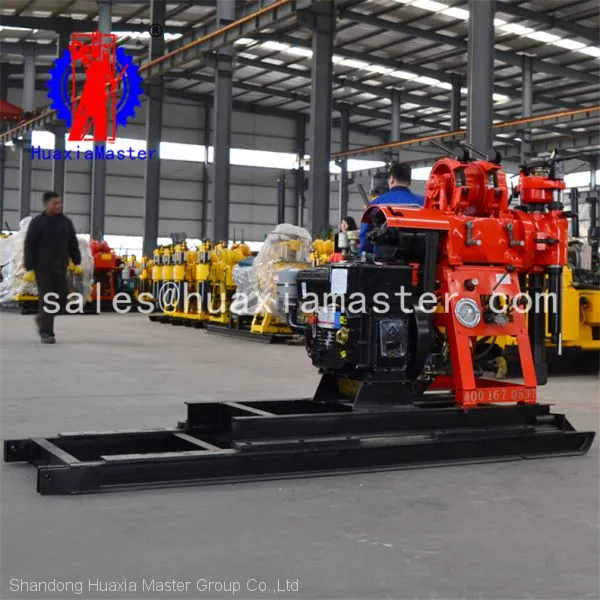

China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring photo-3

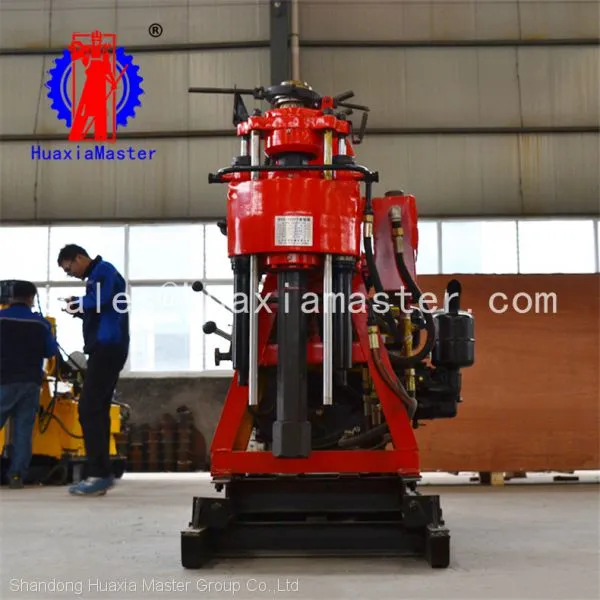

China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring photo-4
China Supplier HZ-130Y Huaxia Jujiang Hydraulic Drilling Rig Sampling Machine for Coring photo-5
US$ 2800 - 5520 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
HZ-130YY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Brand Name HuaxiaMaster
Place of Origin China
Model Number HZ-130YY
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 850kg
Dimension(L*W*H) 2400*950*1400 mm
Power Type Diesel
Voltage 380V
Usage Other, water well .engineering
Condition New
Power(W) 13.2kw

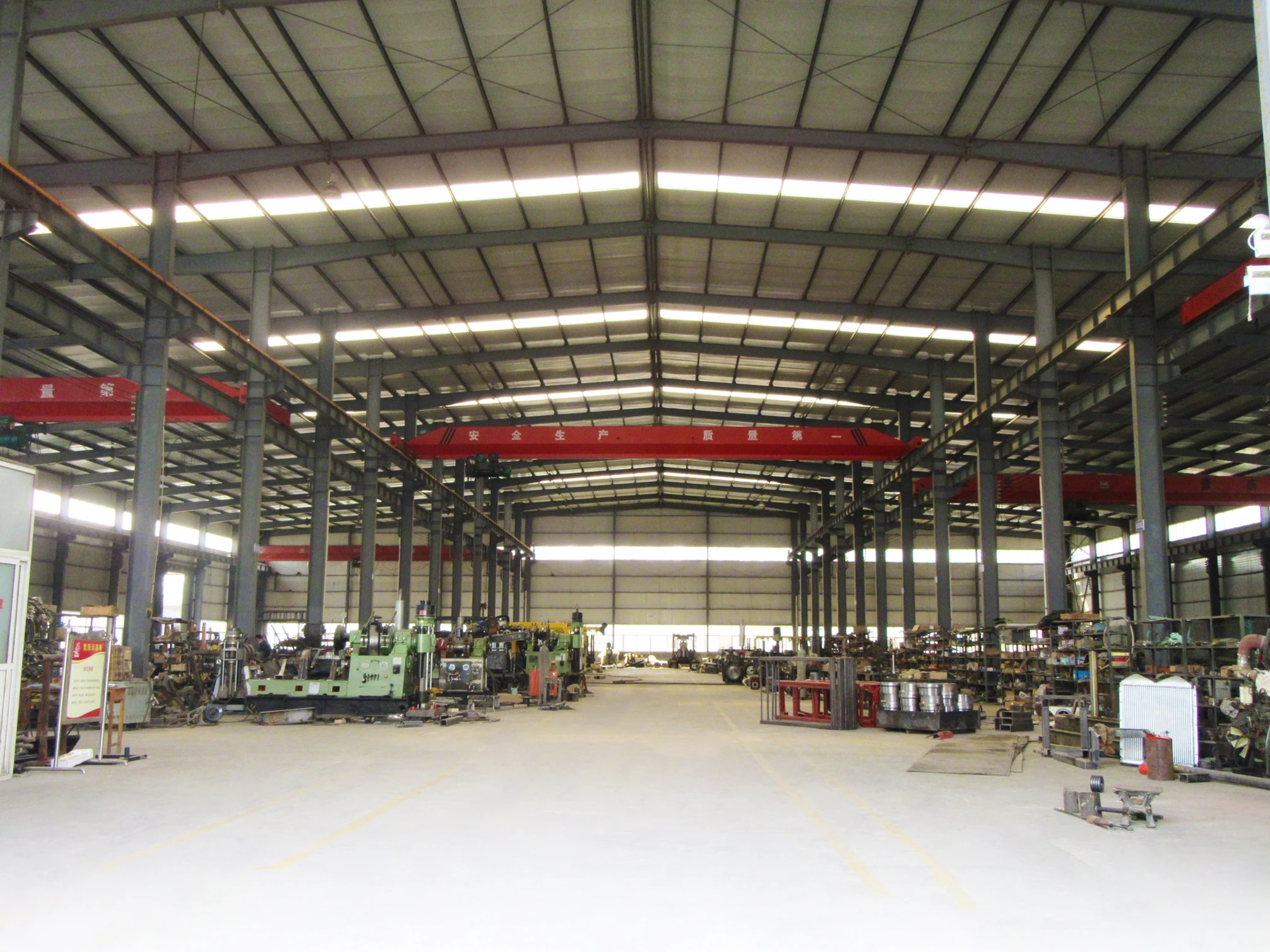

Our Company
Product Description

1. Applications of HZ-130Y hydraulic core drilling rig

·geological survey and exploration

·basic exploration for roads

·high-rise buildings

·inspection holes for various concrete structures

·river embankments

·grouting holes

·direct grouting,

·civil water well

·ground temperature central air conditioners.

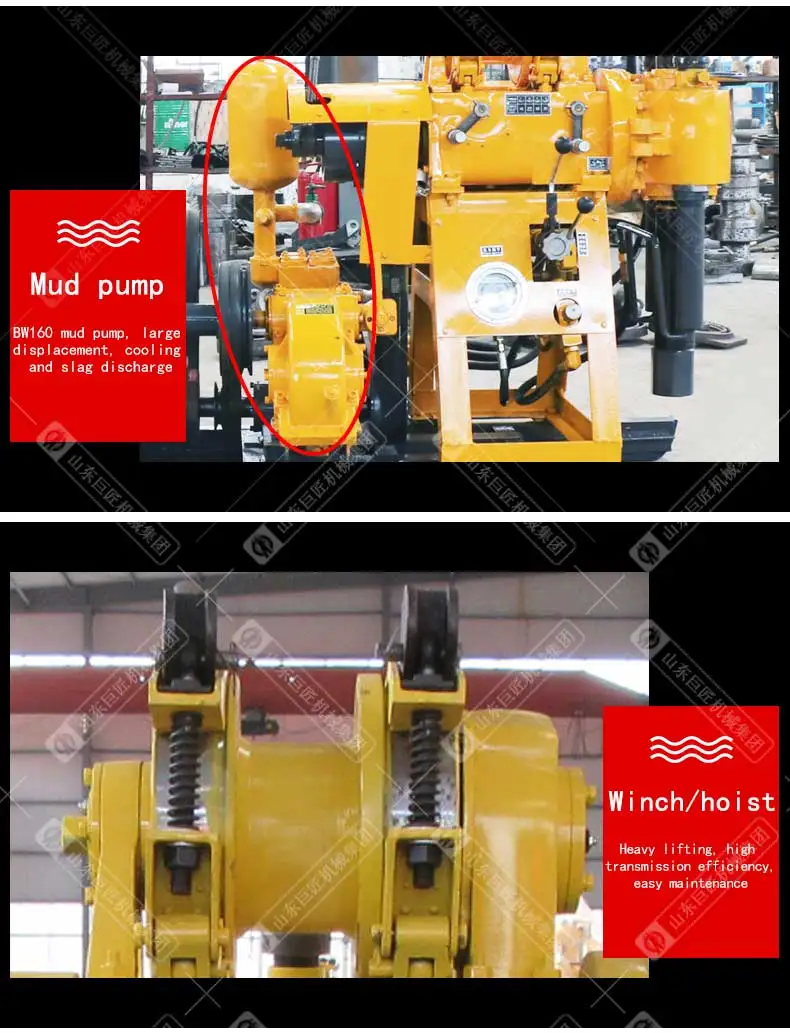

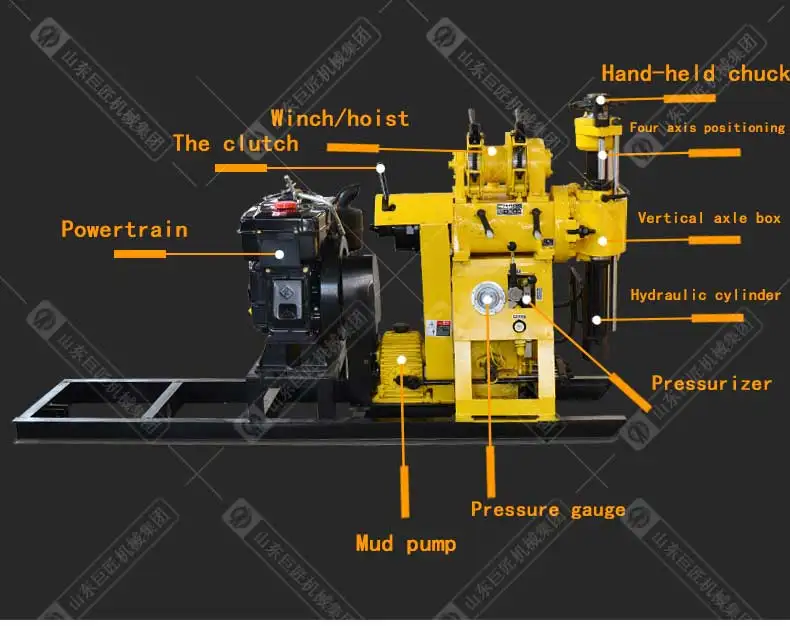

2.Features of HZ-130Y hydraulic core drilling rig

·Hoist installation holder, forming structure of double support wheel, can withstand strong impact.

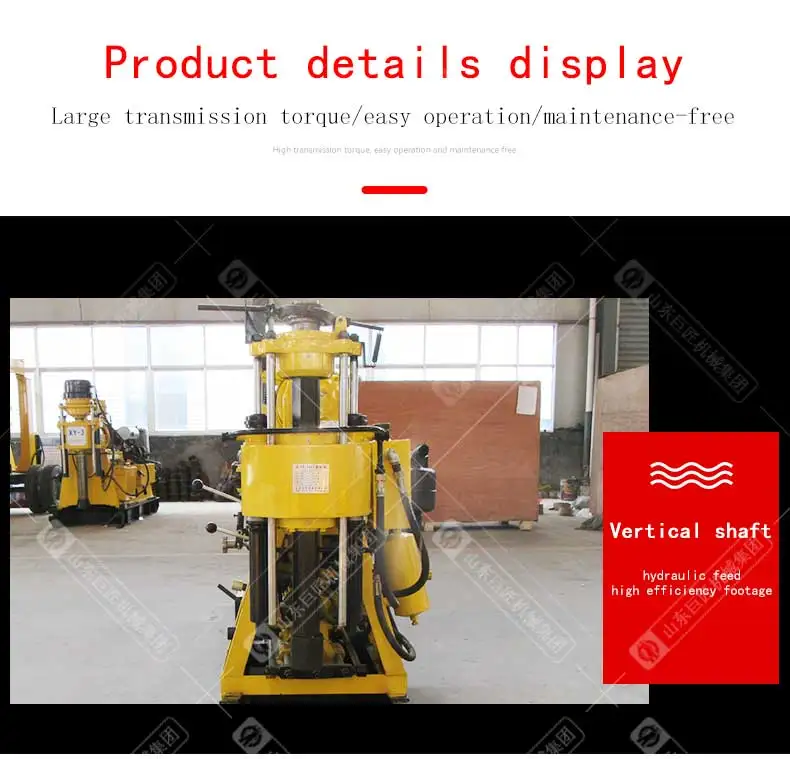

·Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.

·This machine adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.

·Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission

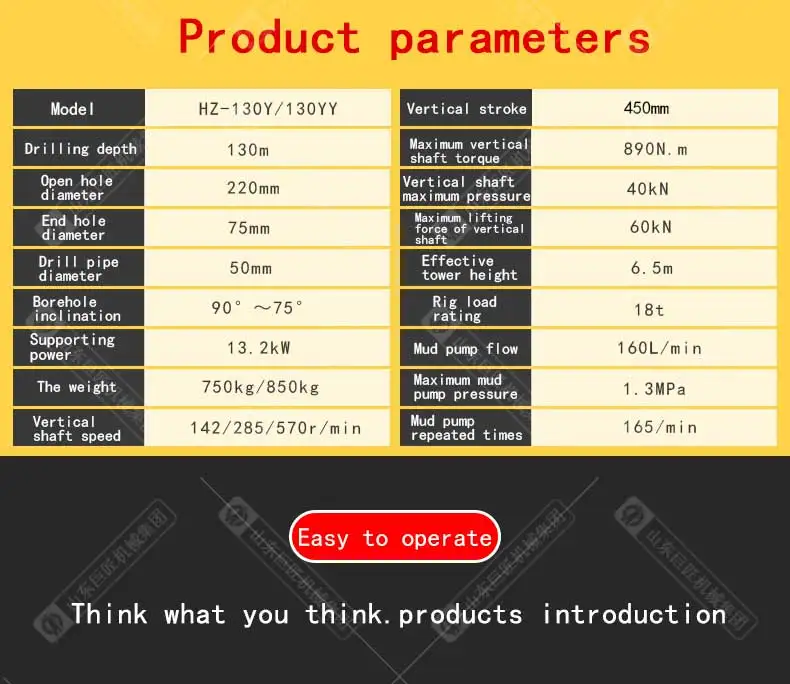

Drilling depth
130m
Drill weight (Not include power)
750kg
Maximum open hole caliber
220mm
Pump Type
Horizontal single urn twin-action
End hole caliber
75mm
Electric motor
95/77 l/min
Drill rod caliber
50mm
Maximum pressure
1.2mpa
Packing & Delivery


Product Tags: 100meters core drilling rig machine , 130m core sample drilling machine , hydraulic core drill
