XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale

XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale photo-1
XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale photo-2
XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale photo-3
XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale photo-4

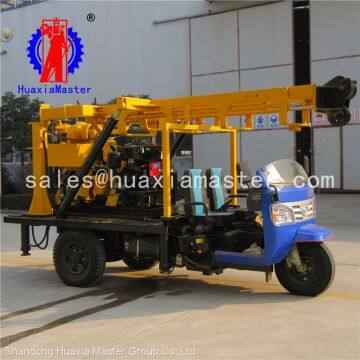

XYC-200A Portable Tricycle Hydraulic Water Well Drilling Rig Supplier for Sale photo-5
US$ 12000 - 13000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
XYC-200A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
6 days
Brand Name HuaxiaMaster
Place of Origin China
Model Number XYC-200A
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas third-party support available
Warranty 6months
Weight 1100KG
Dimension(L*W*H) 2.1*1.3*0.8 M
Power Type Diesel
Voltage 380V
Usage Other, water well engineering
Condition New
Power(W) 22HP


Our Company
Product Description
Characteristics of XYC-200A  tricycle-mounted hydraulic core drilling rig

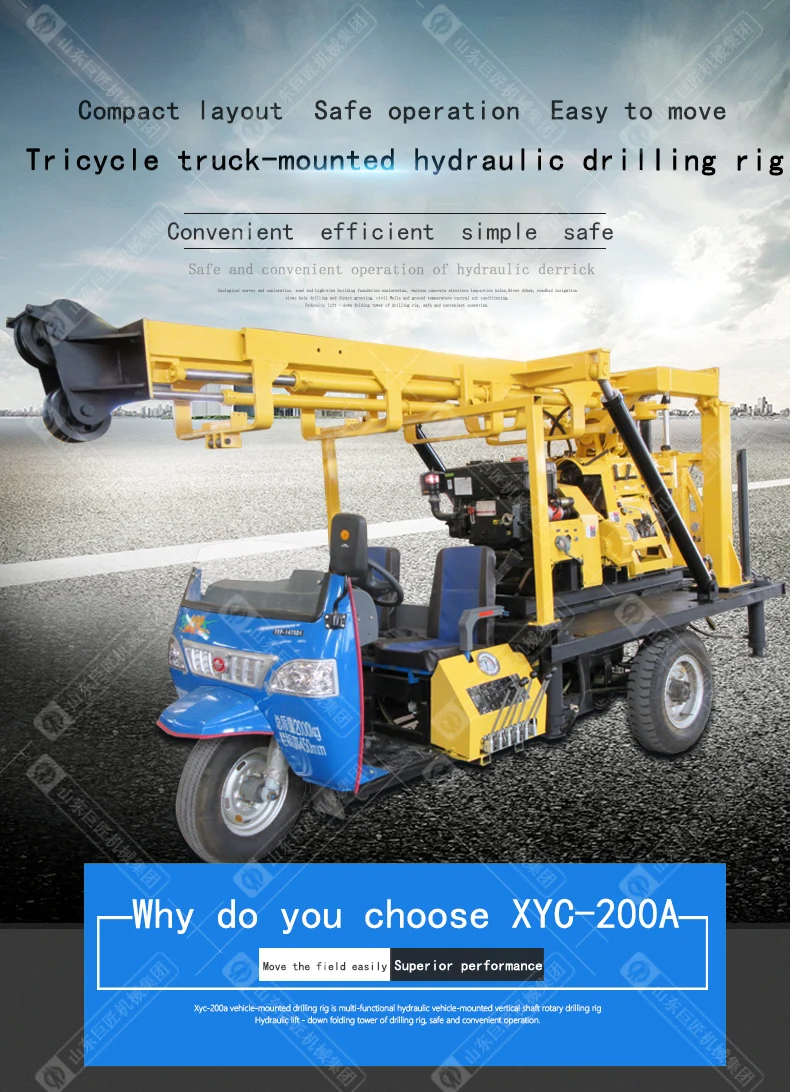

·XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .

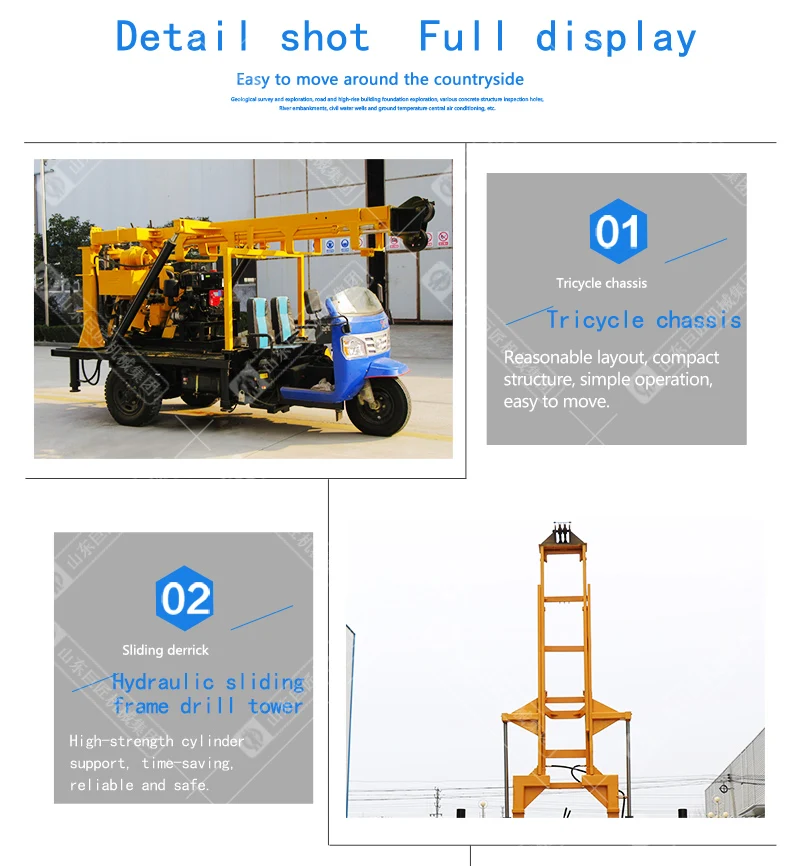

·The tricycle is Tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.

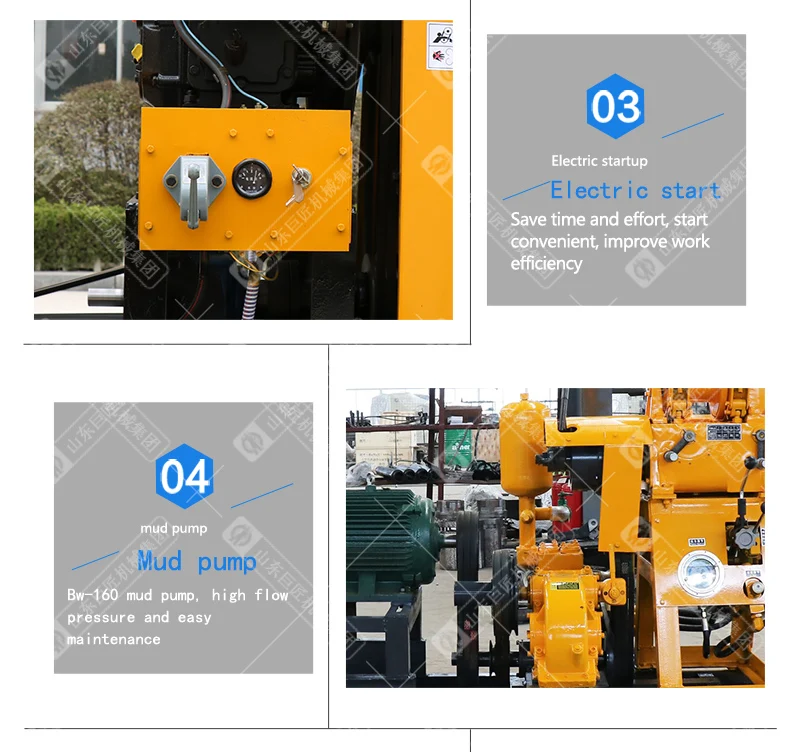

·XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.

·The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth

·The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency

·The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque

·Equipped with taper clutch, made the machine easy to operate and free of maintenance.

·Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.

·Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.


Product Tags: Water Well Drilling Rig Supplier , High pressure hydraulic drilling machine , geology exploration drilling equipment
