Help CenterOriginal PIC MPLAB PICKI4, PG164140 Universal Programmer High-speed PG164140-MPLAB PICKI4 ic Programmer,IC WRITER
Related Products
-
Original PIC MPLAB PG164130 - PICkit 3 Universal Programmer High-speed PG164130 - PICkit 3 ic Programmer,IC WRITERUS$ 60 - 120MOQ: 1 Piece -
Original PIC DV244005 KIT PROBE MPLAB REAL ICE Universal Programmer DV244005 REAL ICE ic Programmer,IC WRITERUS$ 60 - 120MOQ: 1 Piece
-
Original PIC DV164035 MPLAB ICD3 In-Circuit Debugger,MPLAB ICD3 ic Programmer,IC WRITERUS$ 60 - 120MOQ: 1 Piece
-
Original PIC AC102015 Debugger Adapter Board Part Number: AC102015US$ 60 - 120MOQ: 1 Piece
-
Original PIC MPLAB Snap PG164100 Debugger Adapter Board PG164100 -MPLAB(R) Snap In-CircuitDebuggerUS$ 30 - 90MOQ: 1 Piece
Fast programming, increased functionality, at the same price as its predecessor.

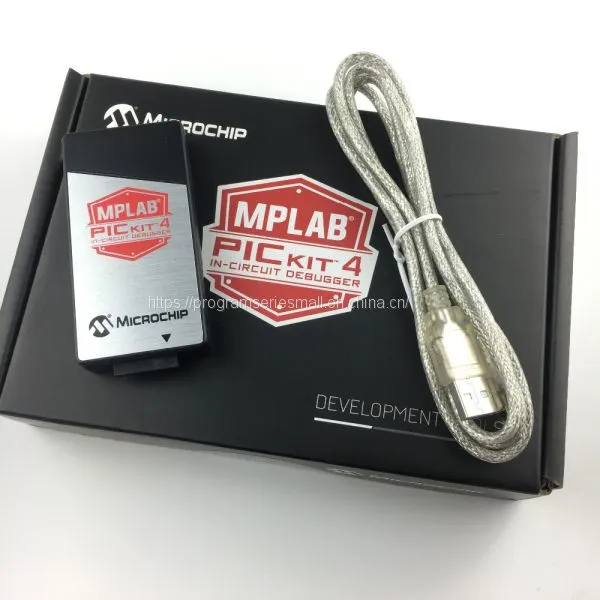

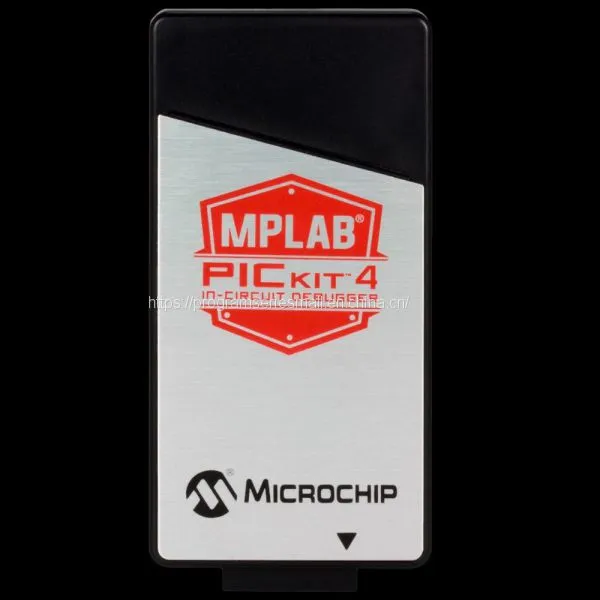

The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC®, dsPIC®, AVR, SAM and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version 4.15. The MPLAB PICkit 4 is connected to the design engineer's computer using a high-speed 2.0 USB interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). An additional micro SD card slot and the ability to be self-powered from the target means you can take your code with you and program on the go.*
The MPLAB PICkit 4 programs faster than its predecessor with a powerful 32,bit 300MHz SAME70 MCU and comes ready to support PIC® and dsPIC® MCU devices. Along with a wider target voltage, the PICkit 4 supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming Data Gateway, while being backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP. The PICkit 4 also has a unique programmer-to-go function with the addition of a micro SD card slot to hold project code and the ability to be powered by the target board.*
* This functionality is coming soon with firmware update of the product through MPLAB X IDE.
Matches silicon clocking speed
Programs as fast as the device will allow
Target voltage of 1.20V to 5.5V
Wide target voltage supports a variety of devices
Can supply up to 50mA of power to the target
Can be powered from the target to program in the field*
Minimal current consumption at
Portable USB-powered and RoHS-compliant
Powered by a high-speed USB 2.0, no external power required
CE and RoHS-compliant
8-pin single in-line header
Supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming Data Gateway
Compatibility
Backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP
Option to be self-powered from the target (2.7V to 5.5V)
Programmer-to-Go (PTG) support*
SD card slot to holds program data
Press on the logo to program the target
Cost effective
Features and performance at a fraction of the cost of comparable debugger/programmers
-
Ease of maintenance and feature upgrade
* This functionality is coming soon with firmware update of the product through MPLAB X IDE.
Add new device support and features by installing the latest version of MPLAB X IDE, which is available as a free download at http://www.microchip.com/mplab/mplab-x-ide
-
Related Tools
Please see below for related development tools.
AC164110
DM160228
DM240001-3
AC102015
