ALL-200G Gang Device Programmer is designed to provide high quality programming platform for new released IC products on the market especially for high density FLASH units. ALL-200Gworks with multiple Socket Boards to perform multi-site programming for limited / mass production. Through USB port, 4/8 sets of ALL-200G can be connected to one PC for either synchronous or asynchronous multi-site programming to maximize production capacity.
ALL-200G extremely high freq. core circuit design significantly cut down programming time of high density memory products.
ALL-200G Device Programmer has 56 x 8 sets of Precise Universal Pin Driver to provide high speed, low noise, accurate and reliable programming signals for various IC products including high speed low power devices recently released to market. Each site owns individual Pin Driver so sites are totally independent without interfering each other during multi-site programming.
ALL-200G can be setup for multi-site operation when production required. Up to 8 sites x 8 sets = 64 sites can be programmed simultaneously to maximize production. For more to go, the ALL-200G based Automated Programming System, AT3-300 Series, can serve the requirement.
Excellent performance
ALL-200G extremely high freq. core circuit design significantly cut down programming time of high density memory products. Precise Universal Pin Drivers provide high speed, low noise, accurate and reliable programming signals for various IC products including high-speed low power devices recently released to market.Wide range of IC coverage
ALL-200G supports wide range of IC products including EEPROM, Serial EE, SPI memory, NOR/NAND FLASH, MPU/MCU product types and DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA package types.Easy to setup & operate

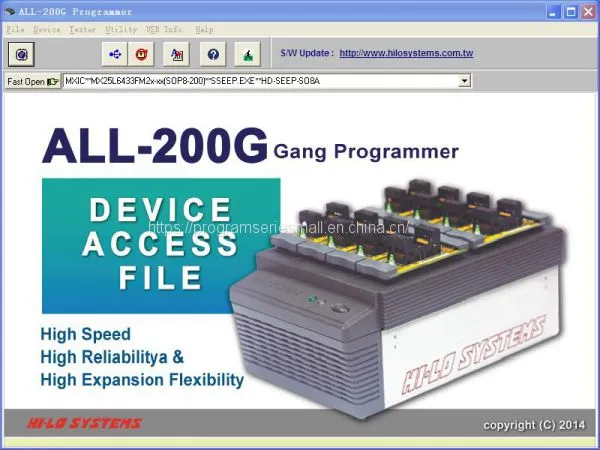

ALL-200G setup and operation can be done easily by connecting Device Programmer to PC with Windows 2000/XP/Server 2003/Vista/Windows 7/Windows 8 O.S. through USB port, load data file or read Master IC, then select functional options (Program,Verify,Auto…etc.) to start programming.Site independent parallel programming
ALL-200G Device Programmer has 56 x 8 sets of Precise Universal Pin Driver, each site owns individual Pin Driver so sites are totally independent without interfering each other during multi-site programming. ALL-200G can be setup for multi-site operation when production required. Up to 8 sites x 8 sets = 64 sites can be programmed simultaneously to maximize production.High expansion flexibility
Easy to expand programming types for various ICs by simply replacing appropriate Socket Boards on top of Programmer.Timely software support
The supporting software is updated weekly on HI-LO web site for checking / retrieving through Internet easily. Programming of new products will not be neglected after purchasing.World wide service
Distribution channel covers 35 countries worldwide, all inquiries / problems can be served easily and timely.
Standard accessories︰Include ALL-200G Base Unit, USB cable, driver S/W and user manual in CD-ROM
Optional accessories︰HD-xxx-xxx : Dedicated Socket Board per IC package type
Core controller
16 bits high freq. core control circuit with high performance FPGA & CPLDKey functions
Load File, Read Master, Program, Verify, Auto, ID Check, Checksum, Blank Check, Erase, Secure, Protect / Unprotect, Edit, Function Configuration, Self Test.Support devices
IC types : EEPROM, Serial EE, SPI memory, NOR/NAND FLASH, MPU/MCU…etc.
IC packages : DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, QFN, SON, BGA…etc.
IC leads : 8 pins ~ 300 pinsDevice contact
Dedicated Socket Board ( HD-xxx-xxx ) per IC package typeI/O channels
56 x 8 sets Precise Universal Pin Driver
Provide high quality programming signals for high speed low power (1.8V) devicesLoad / expansion capacity
Up to 8 sites parallel programming per set. Up to 8 sites x 8 sets = 64 sites per PC setup.Data transfer interface
Transfer port : USB x 1
Transfer speed : USB1.1 : 12 Mb/sec. USB2.0 : 480 Mb/sec.Host computer requirement
An Intel or compatible processor with 512MB of RAM
At least one USB port is available
50MB free hard disk space
Windows 2000 / XP / Server 2003 / Vista/ Windows 7/ Windows 8/ Windows 10 operation system
CD ROM / DVD ROM DrivePower
Power source : AC 100 V ～ 240 V 50 Hz ～ 60 Hz
Power consumption : 50 WOperation temperature
0 ℃ ~ 40 ℃ (32 ℉~ 105 ℉)Dimension
W x D x H 162mm x 257mm x 100mmWeight
~ 2.24 kg (Base Unit) ~ 2.56 kg (with socket boards on top)Certification
CE certified
