Feature

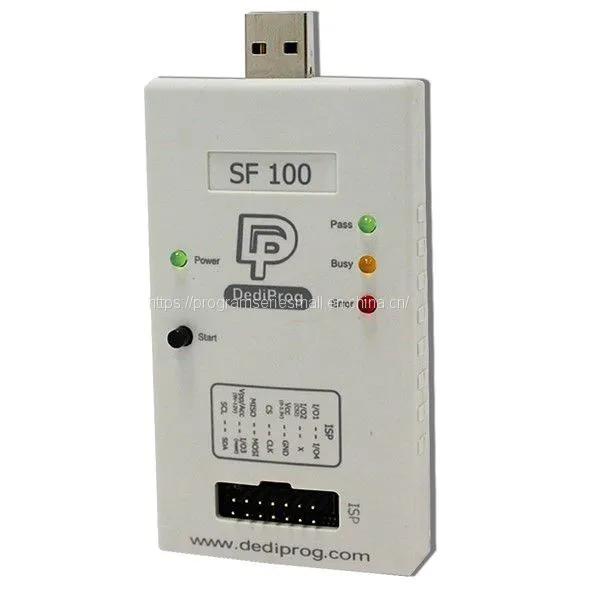

The SF100 is a high speed "In System Programming" programmer to update the SPI Flash soldered on board or Freescale MCU using Ezport. The programmer is easily controlled by the computer DediProg Software through the USB bus offering a friendly interface and powerful features to users.
Highlights
USB Interface
Start button feature
Signal conflict protections
Update Serial Flash soldered on board with application powered or not
Control Application, controller reset and MOSFET isolation status
Update the internal Flash of Freescale MCU using the Ezport (MCF5223, MCF5221, MCF5213) or the external SPI Flash of Freescale MCU using the SBF interface (MCF5445, MCF5227)
Capable of handling two serial flash memories (new feature; provided in SF100 with serial number DP001325, firmware 2.0.4, software 2.0.37 and after)
Multi-Programmers Capability
Support Windows 2003 and above
Support both 32 bit or 64 bit OS
Support 1 CS pin
High performance
USB Mode Reference IC Density (Program + Verify)
Memory size W25X80VSSIG 8Mb 11s
W25Q16VSSIG 16Mb 15s
W25Q32VSSIG 32Mb 20.5s
W25Q64FVSSIG 64Mb 48.5s
W25Q128BVFIG 128Mb 94s
W25Q256FVFIG 256Mb 157s
S25FL512SAGMFI011 512Mb 297s
*Please note the programming and verify time will depend on different IC type; please refer to the IC specification before programming.
Hardware
SF100 is designed with ISP header, through an appropriate connector; users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF100 2x7 header pin out. DediProg also provides the SF100 ISP Cable which is used to connect the SF100 programmer to the 2X4 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF100 ISP Cable 2x4 pin out.
Backup Boot Flash Module-8N
Backup Boot Flash Module-8W
Backup Boot Flash Module-D8W
Backup Boot Flash Module-DIP
Backup Boot Flash Module-16W
Backup Boot Flash Module QUAD-8W
