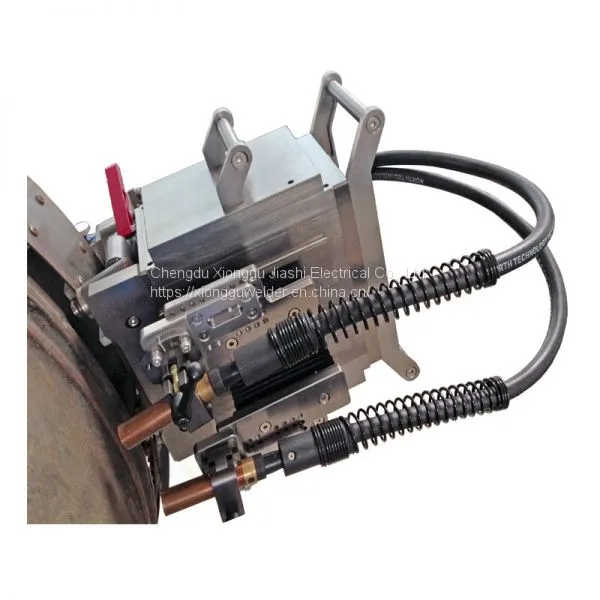

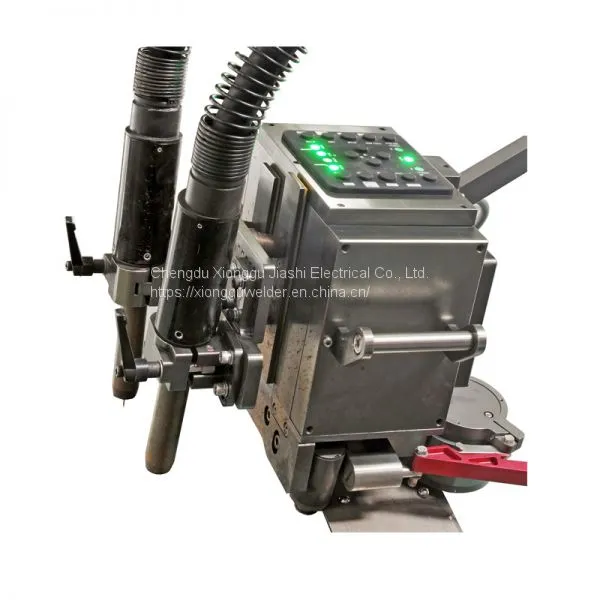

Help CenterXionggu A-610 Dual Torch Automatic All Position Pipeline Welding Machine
Related Products
-
Xionggu A-806 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set -
A-808 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
A-810 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
Xionggu A-230 Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set
-
Xionggu A-305 Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set
Function: It is suitable for root pass, hot pass, filling and capping of pipeline welding joint by GMAW-S/GMAW-P/FCAW-GS welding processes in the field.

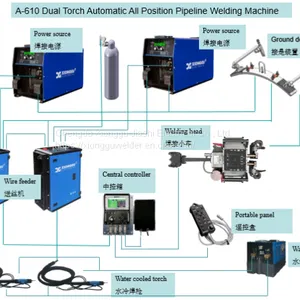

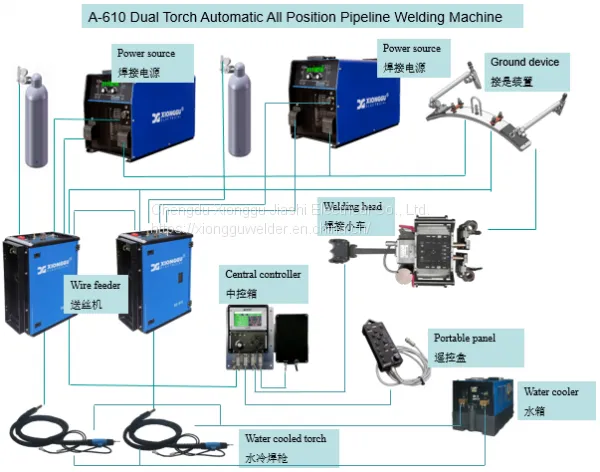

Configuration: Welding head, wire feeder, central controller, portable panel, welding power source, water cooler, water cooled torch, control cables
Features:
Chinese/English/Russian language interface.
It’s designed with automatic vertical and horizontal tracking to reduce welder’s operation difficulties and labor strength.
It’s designed with embedded system and built-in welding expert database, available to call corresponding welding parameters according to access level.
The system is able to call corresponding parameters automatically according to position of welding head to realize smooth transition of welding parameters and precise all position welding.
Interfaces of WIFI and QR code scanning gun are reserved, it is capable of providing remote technical services and data transmission in the cloud to realize convenient real time quality control.
Main Technical Parameters:
Model |
A-610 |
Product ID |
4307000000 |
Applicable pipe diameters |
＞Φ500mm |
Travelling speed |
0.1~1.55 m/min |
Wire feeding speed |
2.5~25 m/min |
Oscillation Mode |
Double torches separate oscillation |
Torch angle adjustment |
± 10° |
Vertical adjustment |
50.8mm |
Horizontal adjustment |
50.8mm |
Ambient temperature |
-40~70℃ |
Altitude |
4000m |
IP Rating |
IP54 |
Weight of welding head |
15.8kg |
Dimensions (W×L×H) |
345mm×400mm×390mm |
