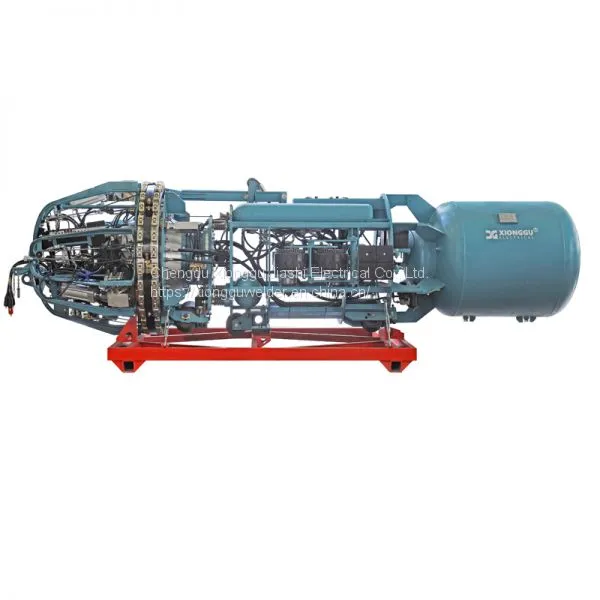

Help CenterA-810 Automatic Pipeline Internal Welding Machine
Related Products
-
Xionggu A-230 Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set -
Xionggu A-305 Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set
-
Xionggu A-610 Dual Torch Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set
-
Xionggu A-806 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
A-808 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
Function: suitable for automatic pipeline internal circumferential seam welding by GMAW welding process.
Configuration: Machine host, central controller, reach rod assembly, welding power source adapter and dedicated welding power source
Features:
Meet requirement of precise internal root pass circumferential seam welding, one click operation.
Multiple torches conduct welding simultaneously,high welding speed, good weld quality.
It is designed with embedded system platform and built-in welding expert database.
Interfaces of WIFI and QR code scanning gun are reserved to provide remote technical services and data transmission in the cloud to realize convenient real time quality control.
Model |
A-810 |
Product ID |
4309000000 |
Applicable pipe outer diameter |
56" (Φ1422mm) |
Quantity of torch |
8 |
Travelling speed |
0~900(mm/s) |
Wire diameter |
Φ0.8mm~Φ1.0mm |
Compressed gas pressure |
1.4 MPa |
System working pressure |
1.0~1.4 MPa |
IP Rating |
IP54 |
Ambient temperature |
-40~70℃（It is necessary to make customized machine for temperature below -20℃） |
Altitude |
4000m |
L×W×H (mm) |
5160×1300×1300 |
Weight |
3250kg |
