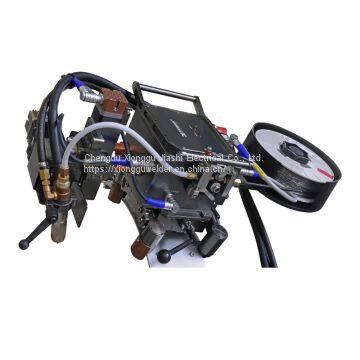

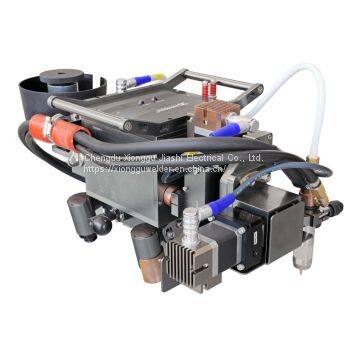

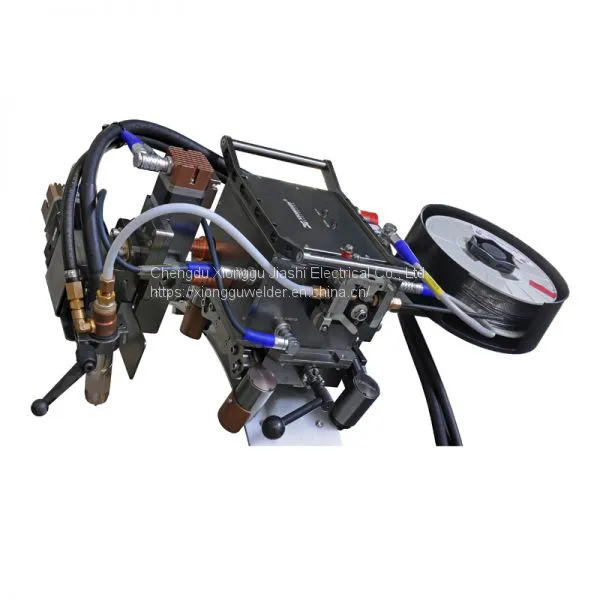

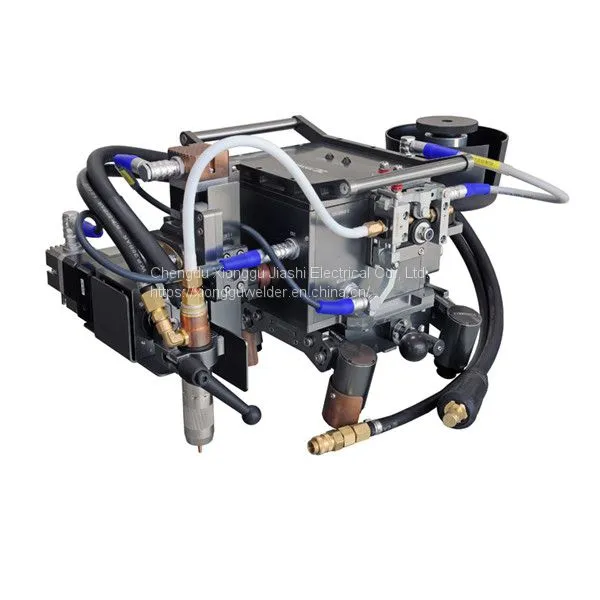

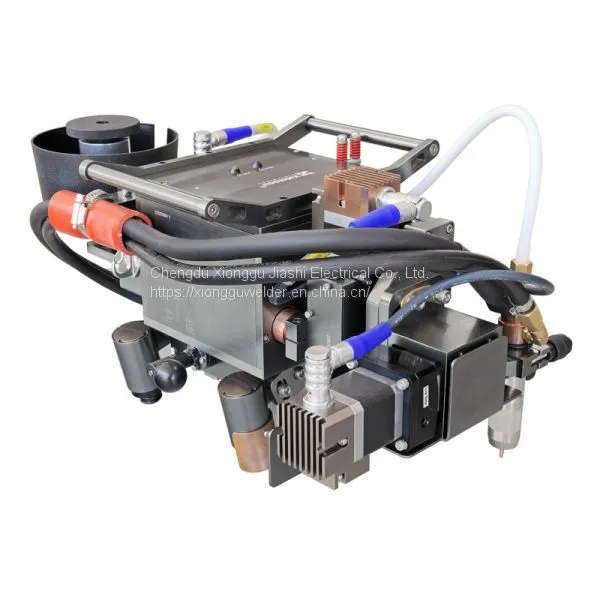

Help CenterXionggu A-305 Automatic All Position Pipeline Welding Machine
Related Products
-
Xionggu A-610 Dual Torch Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set -
Xionggu A-806 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
A-808 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
A-810 Automatic Pipeline Internal Welding MachineNegotiableMOQ: 1 Set
-
Xionggu A-230 Automatic All Position Pipeline Welding MachineNegotiableMOQ: 1 Set
Function: It is suitable for root pass, hot pass, filling and capping of pipeline welding by GMAW/FCAW-GS/GTAW welding processes. It can also conduct all position welding of various workpiece if various bands/tracks are installed.
Configuration：Welding head, adapter, portable panel, control cables, welding power source (to be selected according to specific welding process)
Features：
Chinese/English/Russian language interface.
Height of welding head is lower, it is more suitable for pipe prefabrication and pipeline construction in urban area where there is a limit to operation space.
The machine is operated via portable panel to reduce the welder's labor intensity.
It is designed with built-in welding expert database, available to call corresponding welding parameters according to access level.
The system realize smooth transition of welding parameters of each pass and precise all position welding.
Interface of WIFI and QR code scanning gun are reserved, it is capable of providing remote technical services and data transmission in the cloud to realize convenient real time quality control.
Automatic arc tracking (optional) function is reserved.
One welding head is able to complete welding of the whole pipe joint when welding small diameter pipe.
The system is capable of conducting all position welding of pipe of diameter larger than 168mm and all position welding of workpiece with cambered surface and flat surface if various bands/tracks are installed.
Main Technical Parameters:
Model |
A-305 |
Product ID |
4354000000 |
Applicable pipe diameter |
>Φ168 mm |
Travelling speed |
0.1~1.5 m/min |
Wire feeding speed |
2.5~25 m/min |
Number of section in one group |
1~180 Sections |
Oscillation width |
0~20 mm |
Oscillation mode |
Linear oscillation/pendulum oscillation |
Weight of wire spool |
2.7kg/5kg |
Ambient temperature |
-40~70℃ |
Altitude |
4000m |
IP Rating |
IP54 |
Weight |
13.5kg |
Dimensions (L×W×H) |
600mm×350mm×250mm |
