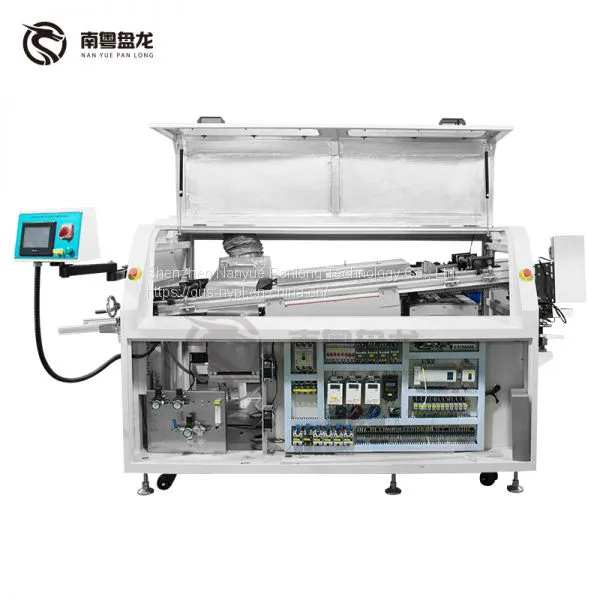

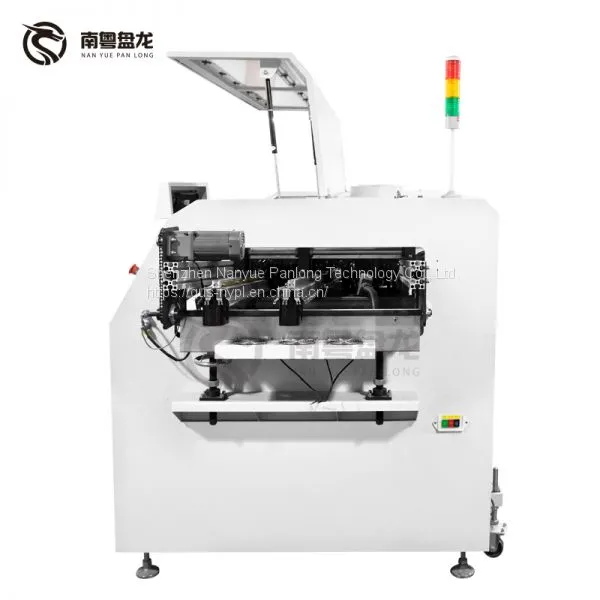

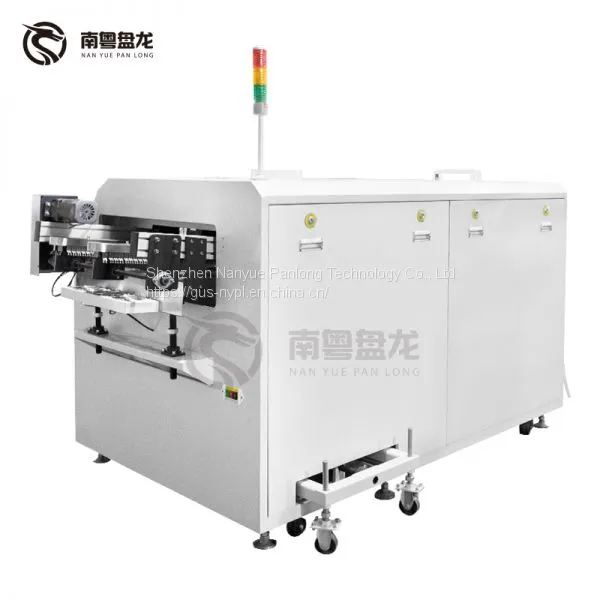

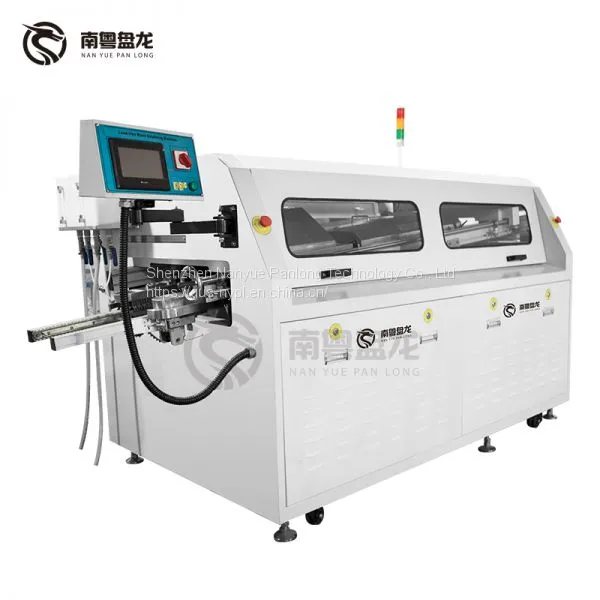

Help CenterGUS Cost-effective SMT Automatic Wave Soldering Machine Made in China
Related Products
-
GUS SMT PCB Assembly Line With Fan Conveyor Wave Soldering and Unloading MachineNegotiableMOQ: 1 Piece -
GUS High Quality Wave Soldering Feeder for LED PCB Assembly LineNegotiableMOQ: 1 Piece
-
GUS Fully Automatic Magazine Box PCB Loader for SMT Assembly Line, Mini PCB LoaderNegotiableMOQ: 1 Piece
-
GUS Automated Systems SMT Inspection Machine AOI Optical Inspection MachineNegotiableMOQ: 1 Piece
-
GUS Automatic SMT Assembly Line PCB Cassette Loader for SMT Line LoadersNegotiableMOQ: 1 Piece
| Board width | 30-400MM |
| Tin furnace capacity | 200KG |
| Normal power / total power | 2-5KW/10KW |
| Starting power | 7KW |
| Machine size | 3050*1160*1360 |
| net weight | 400KG |
| Transport motor | 3Ph 380V 60W |
| Transportation speed | 200MM-1800MM/Min |
| PCB transportation method | From left to right |
| power supply | 3Ph 380V 50HZ |
PRODUCT PERFORMANCE
1, Chinese and English man-machine interface, can be switched at any time
2, Full touch screen plus PLC control, all parameters are set, saved and recalled in the touch screen
3, With two temperature measurement interfaces, the tem-
perature curve can be tested with the temperature measure-
ment line.
4, Brand controling system like Mitsubishi, SchneiderOmron etc will warrant the stability of the machine
5, CE certificated
6, Entrance of machine, It can connect with inserting con veyor directly
7, Stainless steel long shaft pin chain conveyor, never abra-
sion
8, Stepper motor for sprayer driving, sider/rail for sprayer guiding Sprayer moving speed can be setin touch screen.
9, Moving speed will not be influent by air pressure.
10, Compare with air cylinder driving, it's moving quietly, stably, less maintenance, longer lifetime.
11, Any parts contact with solder they are made of Ti(not plated TI, not cast iron pot). Just like solder pot impeller, wave tunnel, wave nozzle, bolts and nuts etc.
So to grantee the lead free solder's pureness and kep the pot no eroded.
12, Cavesr apeathat at eftef mexdire
MACHINE COMMENTARY The touch screen and PLC controller form a complete and stable control system, which can set and save about 50 sets of parameters on the touch screen.
Special aluminum alloy guide rail, high hardness and high strength, no deformation at high temperature and high load, aluminum with wear-resistant copper strip to ensure that the titanium claw does not damage during the friction pro-
cess; The stepping motor drives the spray mechanism to move on the linear guide rail with precise speed, low noise, suitable and cumbersome action, and long working life.
The nozzle is made of Japanese imported products, with high manufacturing precision and super atomization effect.
Independent hot air preheating, independent PID tempera-
ture control, stable and uniform heating, suitable for batch board; The tin furnace adopts external heating type heating mode, the temperature control adopts PID mode, the analog quan-
tity automatically adjusts the voltage phase angle, and the temperature control precision is connected to ±2℃.
The two-wave furnace of the tin furnace adopts stepless speed regulation to independently control the peak height; the two peaks are designed close to each other; With a small furnace design, the tin furnace capacity value is
200KG.
Tin furnace electric in and out, manual lifting.
The tin furnace liner, the nozzle and all the screws in the tin furnace are made of titanium alloy, which effectively pre-
vents the corrosion of lead-free solder.
Automatic claw cleaning device, high quality micro water pump; Powerful fan cooling system.
