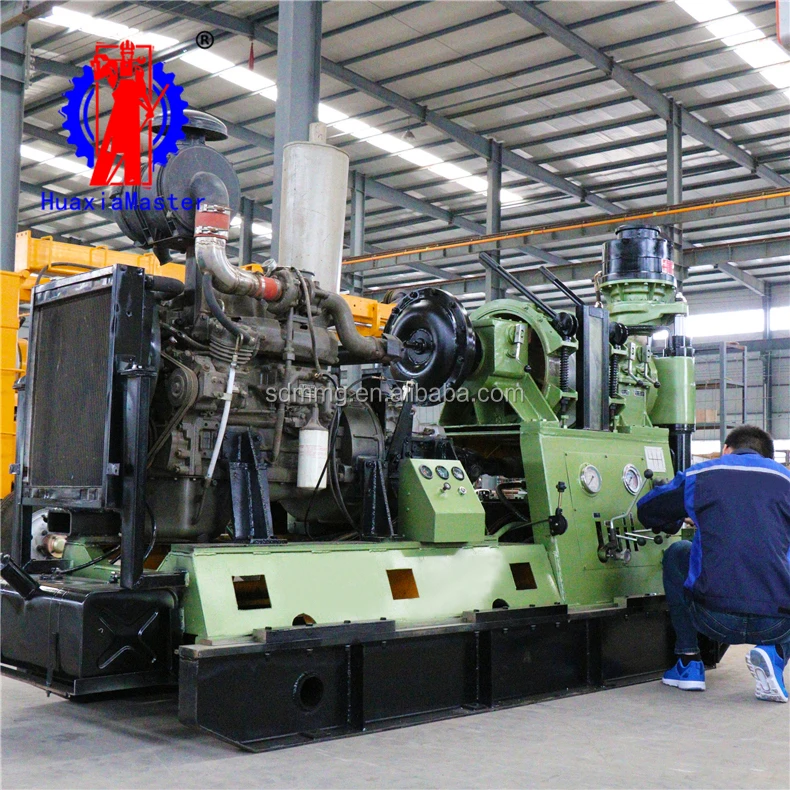

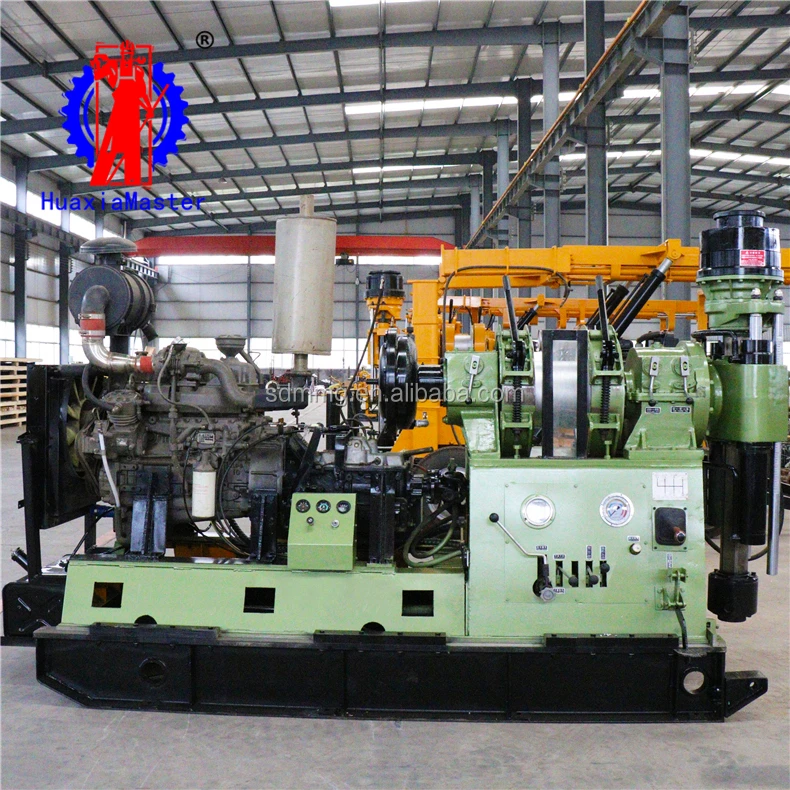

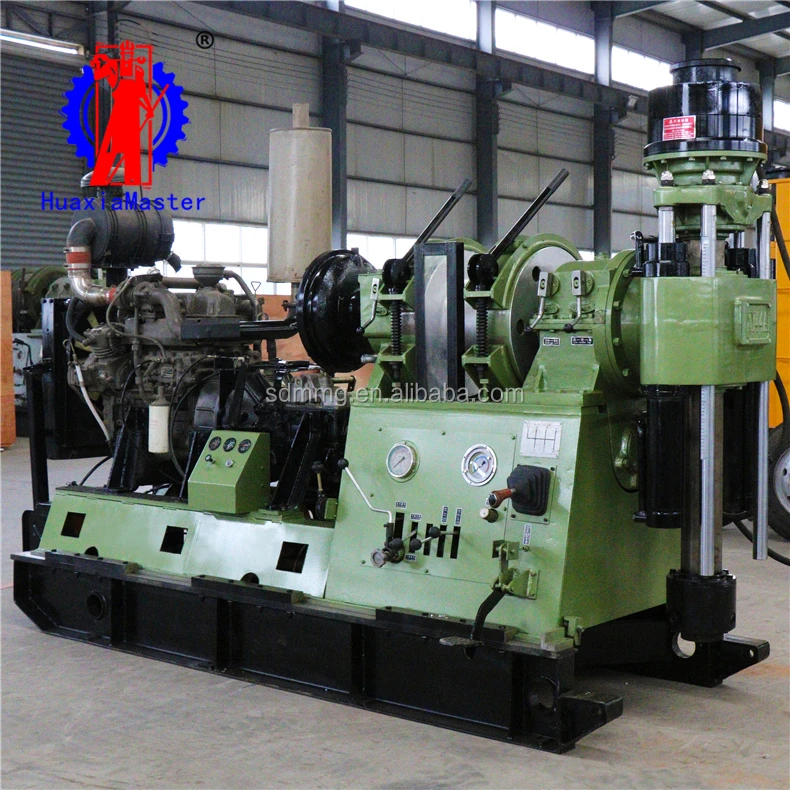

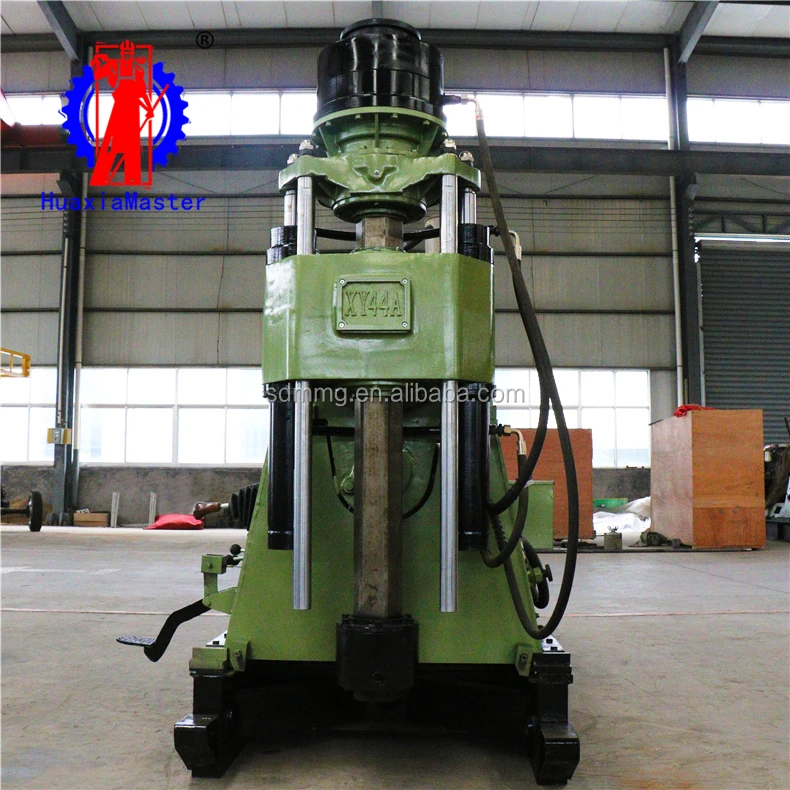

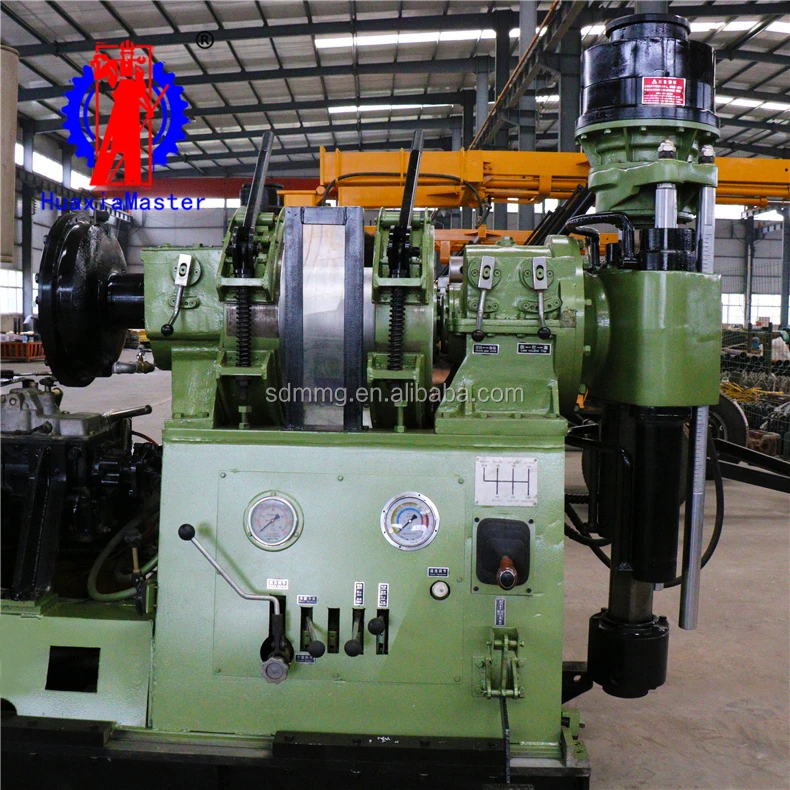

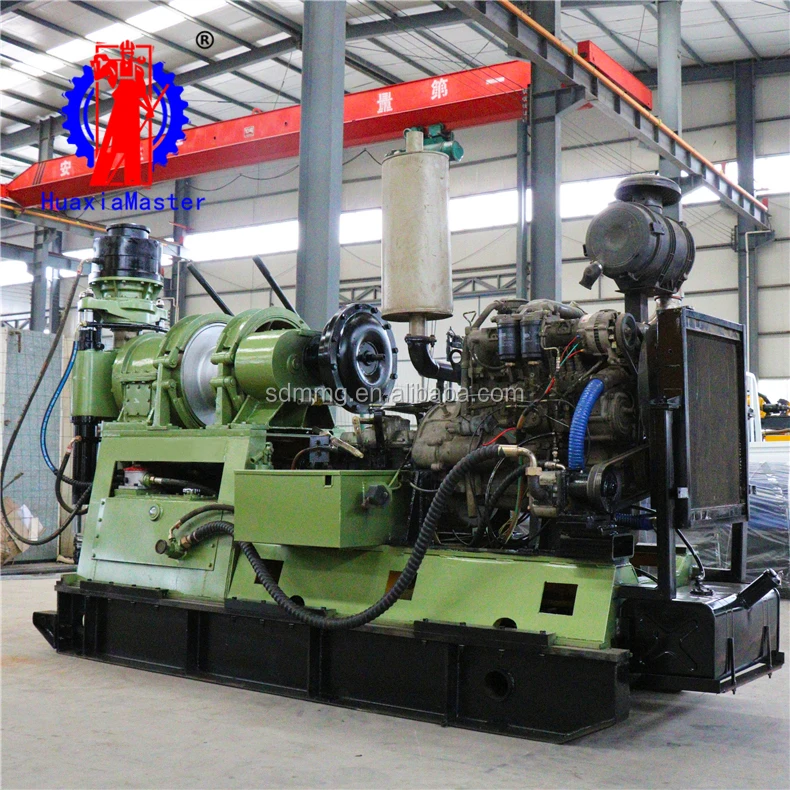

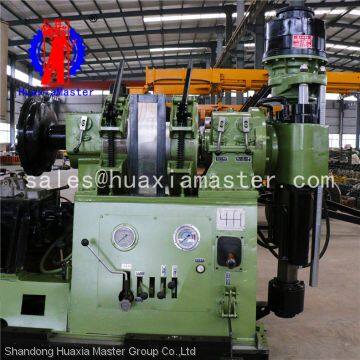

XY-44A hydraulic core drilling rig
1. Characteristics of XY-44A hydraulic core drilling rig
XY-44A is a hydraulic core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. HuaxiaMaster core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XY-44A hydraulic core drilling rig
Core drilling rig
Engineering geology exploration,
hydrology and core drilling
large diameter foundation piles construction
3. Parameters of XY-44A hydraulic core drilling rig
XY-44A hydraulic core drilling rig | |
Drilling depth |
600-1400m |
|
Max open hole caliber
|
300mm |
End hole caliber |
75mm |
Drilling rod diameter |
60mm |
Drilling angle |
90-65 |
Drill rig moving stroke |
450mm |
Spindle | |
|
Spindle speed ( Diesel Engine)
|
Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
Reverse 65 201r/min | |
|
Spindle speed ( Electric Motor) |
Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
Reverse 54 167r/min | |
|
Spindle stroke
|
600mm |
Spindle max. pressure force |
90kn |
Spindle inner diameter |
96mm |
Lifting capacity |
120kn |
Main hoist | |
|
Max.single line lifting capacity
|
45kn |
Max.single line lifting speed |
0-45m/s |
Wire rope caliber |
17.5-18.5mm |
Hoist capacity of wire line |
90-110m |
Roller diameter |
140mm |
|
Wirerope diameter
|
6mm |
Wire rope length |
450m |
Mud pump | |
Type |
BW-250 |
Displacement |
250 l/min |
Work pressure |
80kg/cm² |
Water inlet pipe diameter |
75 mm |
|
Water outlet pipe diameter
|
50 mm |
Power | |
Diesel engine |
YC4E135-1 81KW |
Electric motor |
Y225S-4 37KW |
