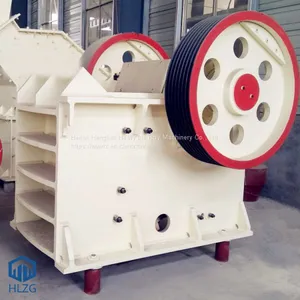

Jaw Crusher thumbnail-1
Jaw Crusher thumbnail-2
Jaw Crusher thumbnail-3
Jaw Crusher thumbnail-4
Jaw Crusher thumbnail-5
Jaw Crusher photo-1

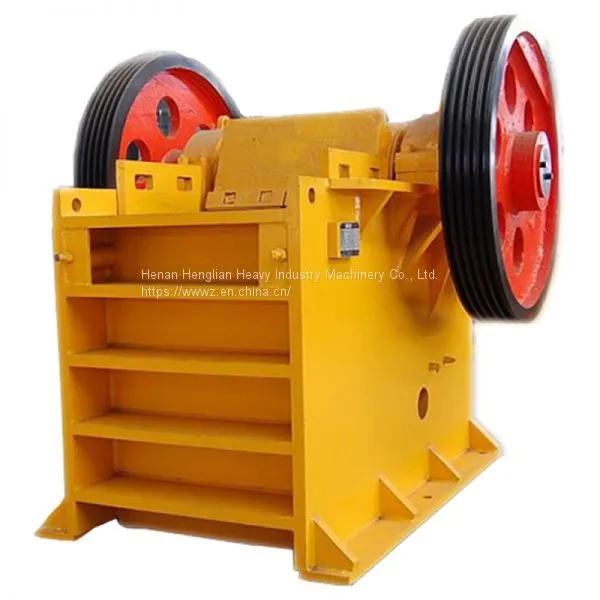

Jaw Crusher photo-2

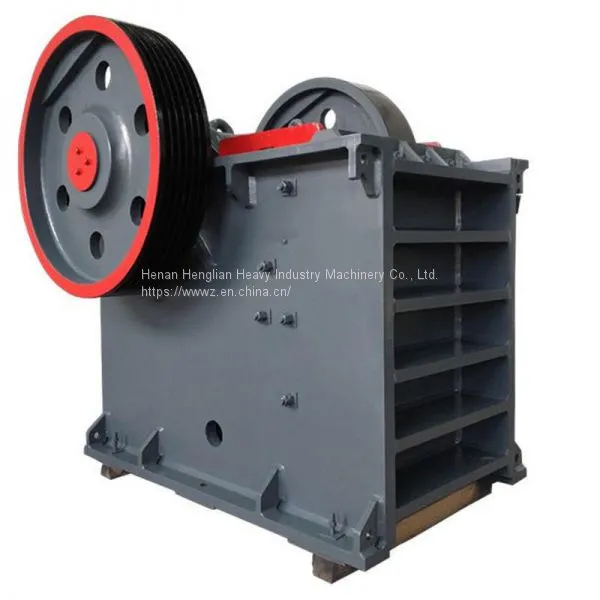

Jaw Crusher photo-3

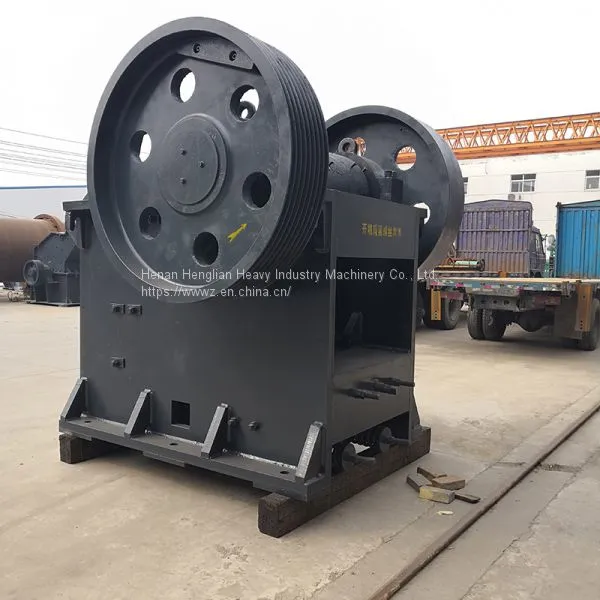

Jaw Crusher photo-4

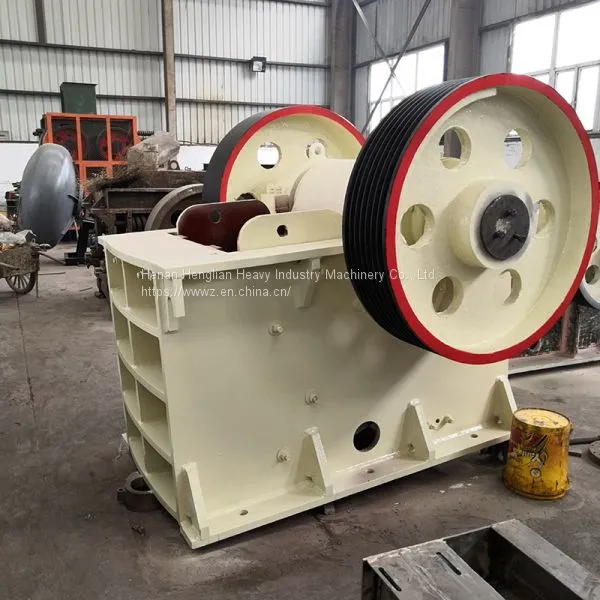

Jaw Crusher photo-5
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Henan Henglian Heavy Industry Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

ntroduction and Benefits

Jaw Crusher is the traditional product in crushing and beneficiation plants, it is suitable for crushing a variety of soft and hard ores and rocks. PEF series are for primary crushing, while PEX series are for secondary crushing.

  1. Excellence in casting engineering

  2. Excellent material intake capacity

  3. Easy installation & maintenance

  4. High production and reduction

  5. Reliability, high availability

Working Principle

A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw, called a swing jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker. The volume or cavity between the two jaws is called the crushing chamber. The movement of the swing jaw can be quite small, since complete crushing is not performed in one stroke. The inertia required to crush the material is provided by a weighted flywheel that moves a shaft creating an eccentric motion that causes the closing of the gap.

Primary Jaw Crusher

Model
(mm)		 Feed size
(mm)		 Discharge size
(mm)		 Capacity
(t/h)		 Rotation
(r/m)		 Motor
(KW)		 Weight
(ton)
PE-150×250 0-125 10-40 1-3 250 5.5 0.8
PE-200×300 0-180 15-50 2-6 260 11 1.4
PE-250×400 0-210 20-80 5-20 300 15 3.0
PE-400×600 0-350 40-100 15-60 275 30 6.5
PE-500×750 0-425 50-100 40-110 275 55 11.3
PE-600×900 0-480 65-160 90-150 250 75 17.6
PE-750×1060 0-630 80-160 100-250 250 90-110 27.5
PE-900×1200 0-750 95-165 120-300 200 110-160 52
PE-1000×1200 0-850 110-260 180-350 200 110-160 57
PE-1200×1500 0-1020 150-300 300-500 180 180-220 100


Secondary Jaw Crusher

Model Feed size
(mm)		 Discharge size
(mm)		 Capacity
(t/h)		 Motor
(KM)		 Weight
(ton)
PEX-150×750 120 8-25 10-40 15 3.5
PEX-250×750 210 12-25 15-50 30 5.5
PEX-250×1000 210 12-50 30-95 37 6.37
PEX-250×1200 210 12-65 40-100 37 8.75
PEX-350×750 300 15-50 20-50 30 6.5
PEX-300×1300 250 20-90 45-130 75 11


Product Tags: jaw crusher , crusher
