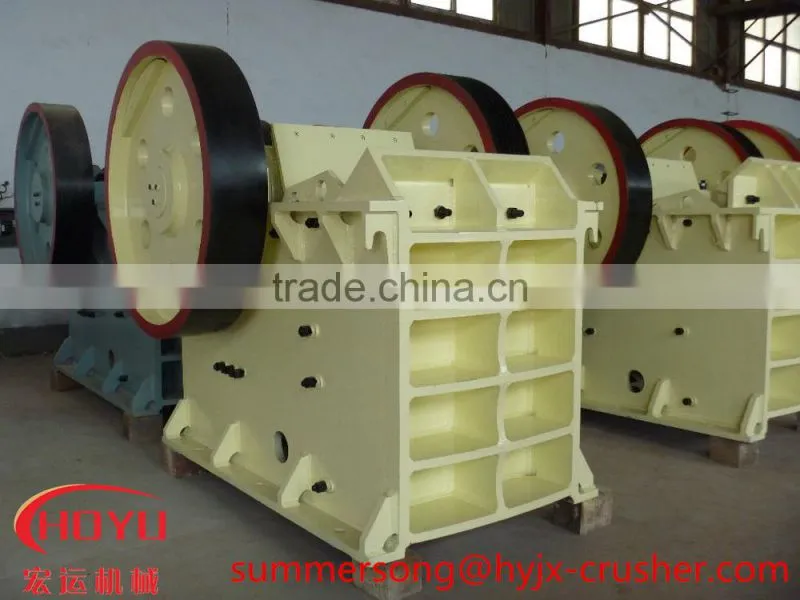

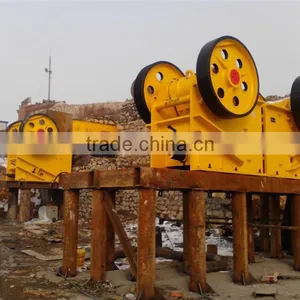

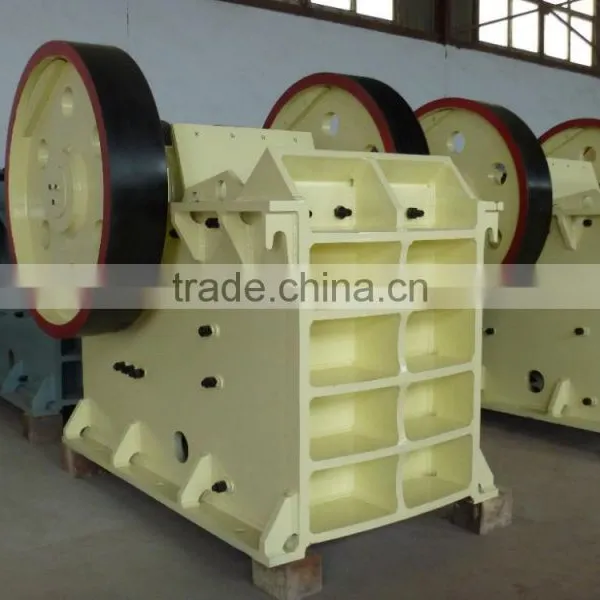

Mini jaw crusher and jaw breaker
Application:

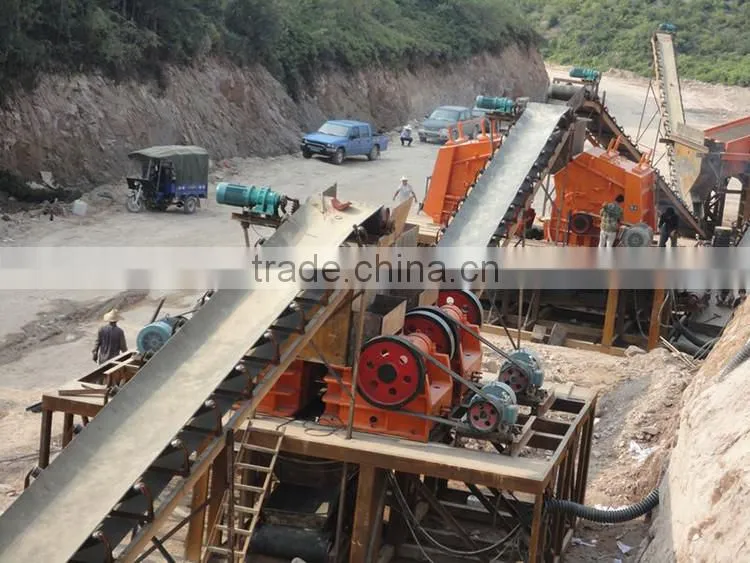

It is widely used in sand making, mineral processing, ore milling, coal milling, metallurgical engineering, chemical engineering, etc.
structures:

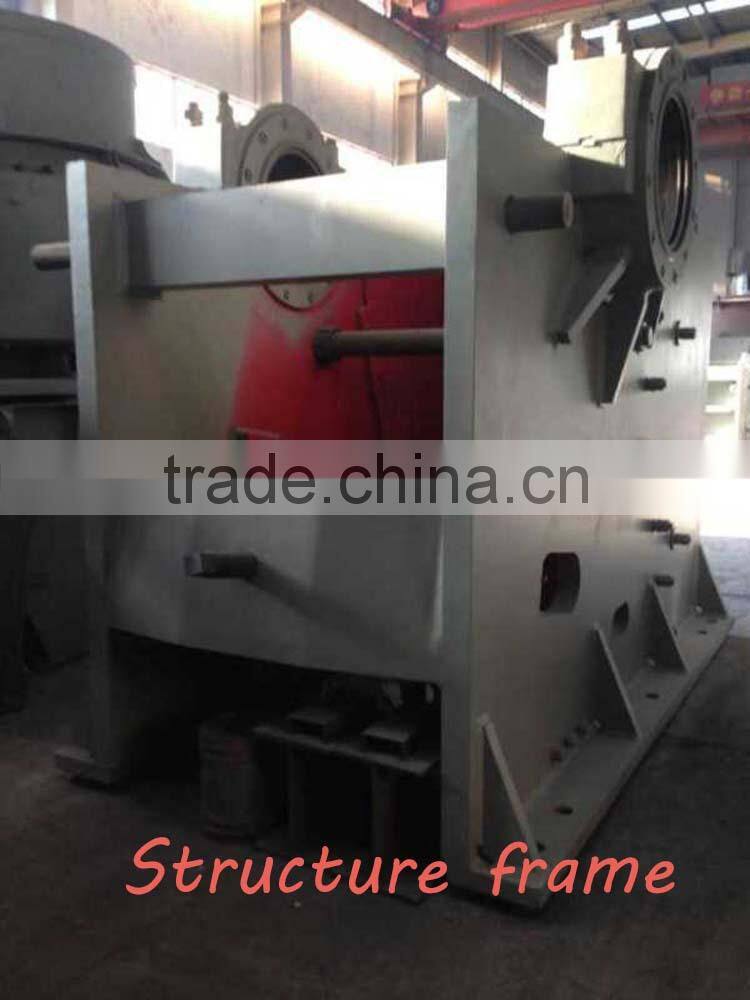

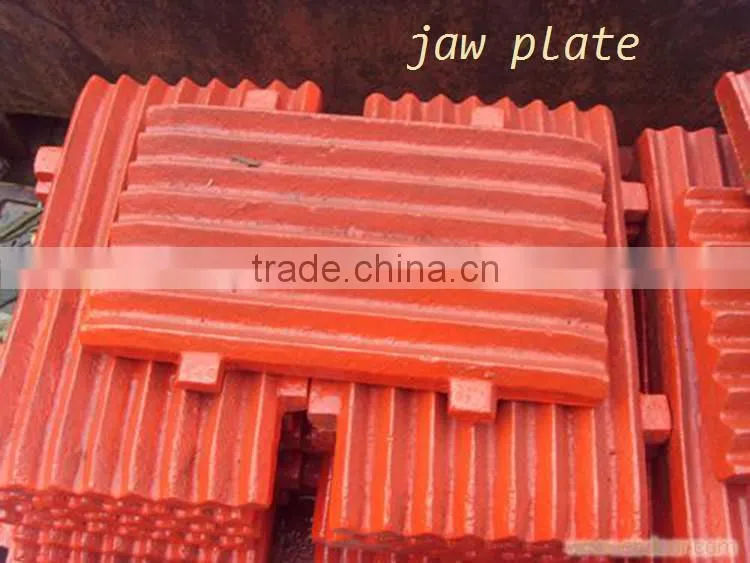

Jaw crusher is mainly by the composition of fixed jaw plate, active jaw plate, body frame, top and bottom plate, adjusting seat, movable jaw rod, etc.

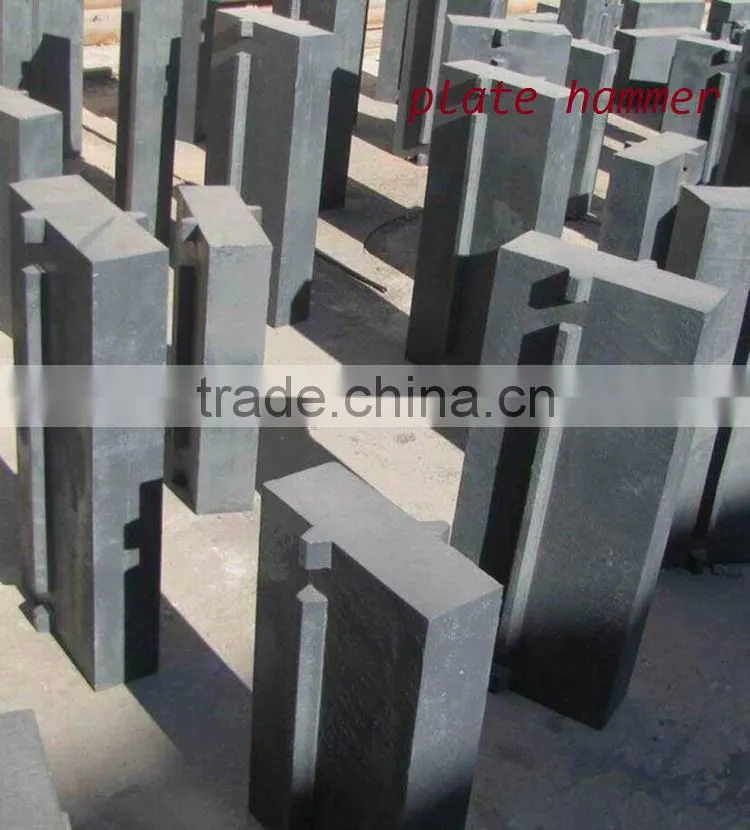

Note: Plate hammer: It can crush 30,000-40,000 m3 cobbles all its service life.
Lining plate: It can crush 100,000 m3 cobbles all its service life.
Working principle:
It adopts the crushing principle of extruding, striking, split folding to crush the material during using.
Advantages:
1, Unique design concept, crushing more thoroughly, average crushing is outstanding than similar devices
2, Applicability is wide, being used in a variety of industries which require more strict products in granular size
3, Feed port can crush larger granularity material, the range of size is 1000 * 1200, easy to work
4, Discharge port is adjustable, changing range of granularity is larger
5, The crushing chamber’s volume is large and no broken corner.
6, High efficiency and energy saving
7, Simple structure, easy operation and light
8, Good sealing reduces dust emissions and green working environment.
9, Advanced lubrication system device, can oil at any time, and achieve a multiple effect when oiled once, improves the use of safety
10, Running smoothly, safe and reliable
Technical parameters:
Model |
Feed opening (mm) |
Max feeding (mm) |
Discharge port adjusting range (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension(mm) |
PE-250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
3 |
1430*1310*1340 |
PE-400×600 |
400×600 |
350 |
40-100 |
10-60 |
30 |
7 |
1700*1732*1653 |
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
55 |
12 |
2035*1921*2000 |
PE-600×900 |
600×900 |
480 |
65-160 |
90-180 |
75 |
17 |
2290*2206*2370 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
110-320 |
110 |
29 |
2655*2302*3110 |
PE-900×1200 |
900×1200 |
750 |
95-160 |
220-450 |
132 |
58 |
3800*3166*3045 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
160 |
100.9 |
6380*5310*3710 |
PEX-150×750 |
150×750 |
125 |
18-48 |
5-16 |
15 |
3.8 |
1200*1500*1200 |
PEX-250×750 |
250×750 |
210 |
25-60 |
15-30 |
30 |
5 |
1667*1545*1020 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
15-30 |
37 |
7 |
1550*1964*1380 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
45 |
8.5 |
2192*1900*1950 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
30-90 |
75 |
11.5 |
1750*2320*1724 |
