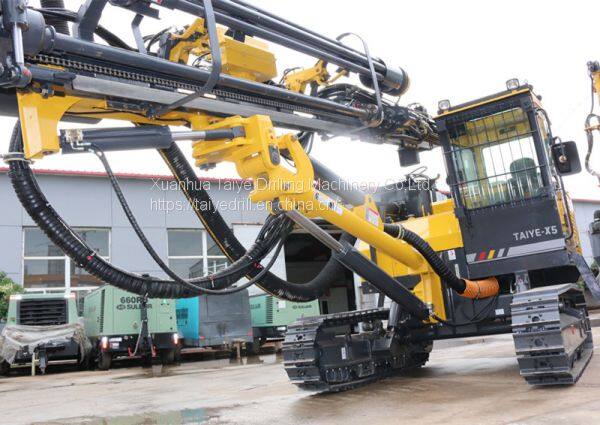

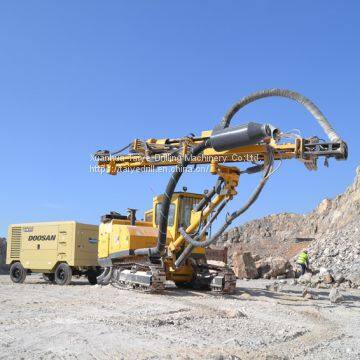

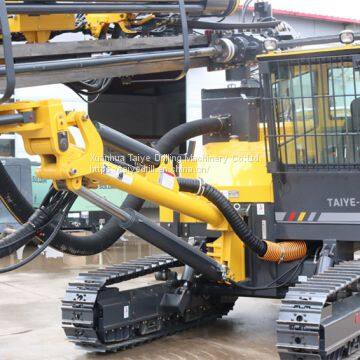

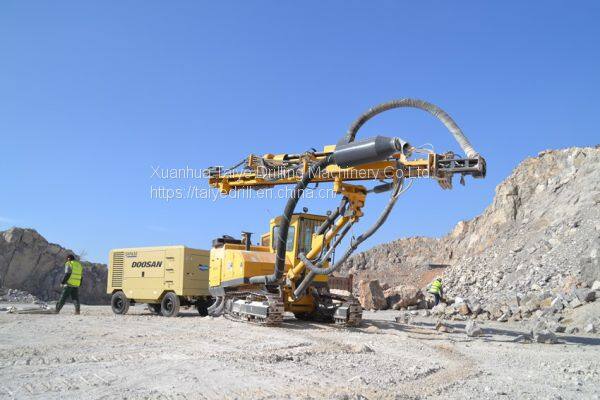

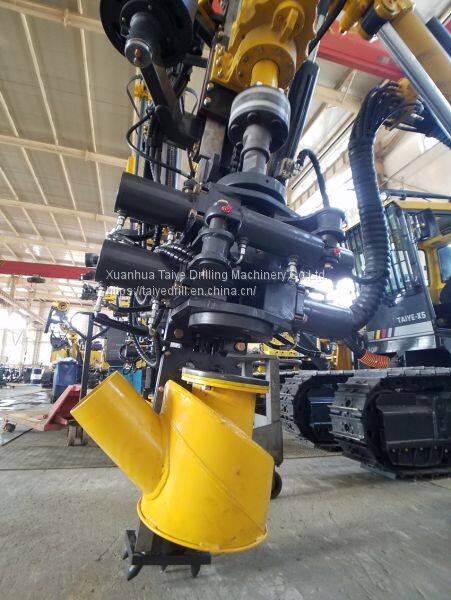

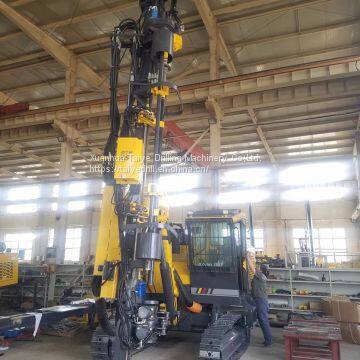

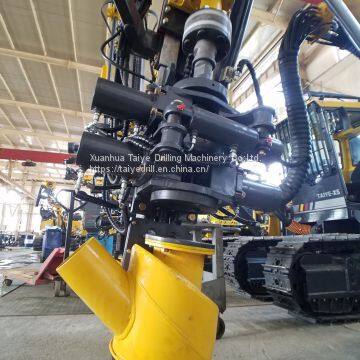

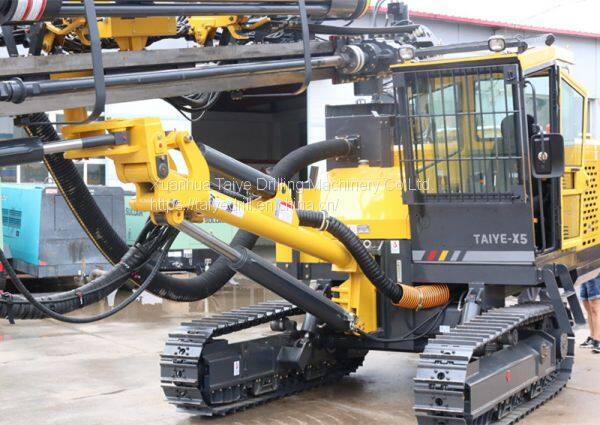

Taiye-X5-DTH Semi-Hydraulic Automatic Rod Changer Drilling Rig
US$ 71600 - 86600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYE
Place of Origin:
China
Model Number:
X5
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
10 days
Related Products
-
Taiye-370-DTH Fifth Generation Crawler Semi-Hydraulic Down the Hole Surface Drilling RigsUS$ 41800 - 53200MOQ: 1 Piece -
TAIYE-360-DTH Semi-hydraulic Down the Hole Drilling RigsUS$ 38800 - 49300MOQ: 1 Piece
-
Taiye-D8/D6 Down-the-hole Rotary Blast Hole Hydraulic Drilling RigsUS$ 298000 - 323000MOQ: 1 Piece
-
Taiye-T45 Crawler Hydraulic Top Hammer Open-pit Drilling MachineUS$ 203000 - 238000MOQ: 1 Piece
-
BH35 Fully Hydraulic Drill RigNegotiableMOQ: 1 Set
Brand Name
TAIYE
Place of Origin
China
Model Number
X5
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
9000kg
Dimension(L*W*H)
7595*2190*3253mm
Power Type
Diesel
Usage
Ore
Condition
New
Power(W)
92KW

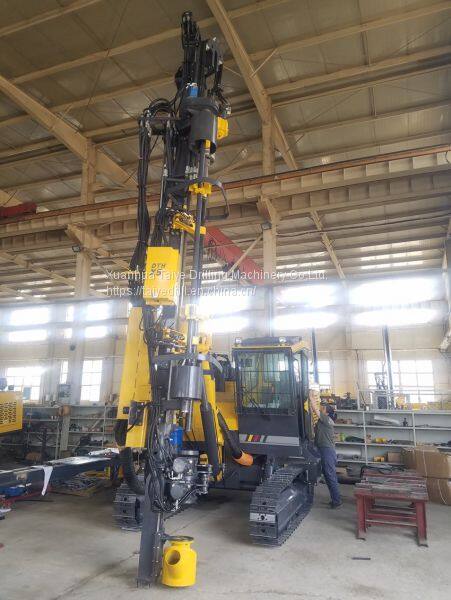

Taiye-X5-DTH Semi-Hydraulic automatic rod changer drilling rig
Taiye-X5 DTH drilling rig calculation optimization design,development and application of power system from power to pump load adaptation system,realizes the power matching of power system from power to pump to load,effectively reduces the energy cosumption of the whole machine,and ensures the performance and high reliability of the whole machine.It is suitable for large and medium open pit mines such ascement,metallurgy,coal mines andquarries.
| Dril hole | 115-165mm |
| Working pressure | 1.38-2.46Mpa |
| Turning torque | 3300N.m |
| Turning speed | 0-80Rpm |
| Lifting force | 18KN |
| Sliding frame swing | Left 33°/Right 44° |
| Slding frame pitching | 106.5° |
| Drill boom swing | Left/Right 35° |
| Drill boom pitching | Horizontal 20°/51° |
| Engine Manufacturer | YuChai Diesel etc |
| Rated Power | 92kw |
| Dimensions | 7595*2190*3253 |
| Weight | 9000kg |
