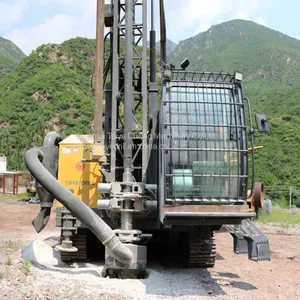

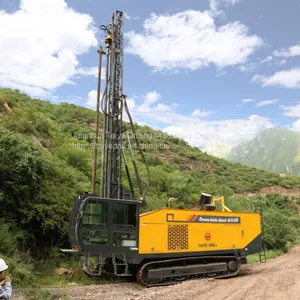

Taiye-D8/D6 Down-the-hole Rotary Blast Hole Hydraulic Drilling Rigs
US$ 298000 - 323000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TAIYE
Place of Origin:
China
Model Number:
D8/D6TH
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
10 days
Related Products
-
Taiye-X5-DTH Semi-Hydraulic Automatic Rod Changer Drilling RigUS$ 71600 - 86600MOQ: 1 Piece -
Taiye-370-DTH Fifth Generation Crawler Semi-Hydraulic Down the Hole Surface Drilling RigsUS$ 41800 - 53200MOQ: 1 Piece
-
TAIYE-360-DTH Semi-hydraulic Down the Hole Drilling RigsUS$ 38800 - 49300MOQ: 1 Piece
-
Taiye-T45 Crawler Hydraulic Top Hammer Open-pit Drilling MachineUS$ 203000 - 238000MOQ: 1 Piece
-
Sany Rotary Drilling Rig Solenoid Valve E12N-20 152301000162A001 for Rotary Head for Drill Rig Solenoid ValvesUS$ 581.24 - 686.28MOQ: 2 Pieces
Brand Name
TAIYE
Place of Origin
China
Model Number
D8/D6TH
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
30000
Dimension(L*W*H)
13900*2950*3500mm
Power Type
Diesel
Usage
Ore
Condition
New
Power(W)
97KW

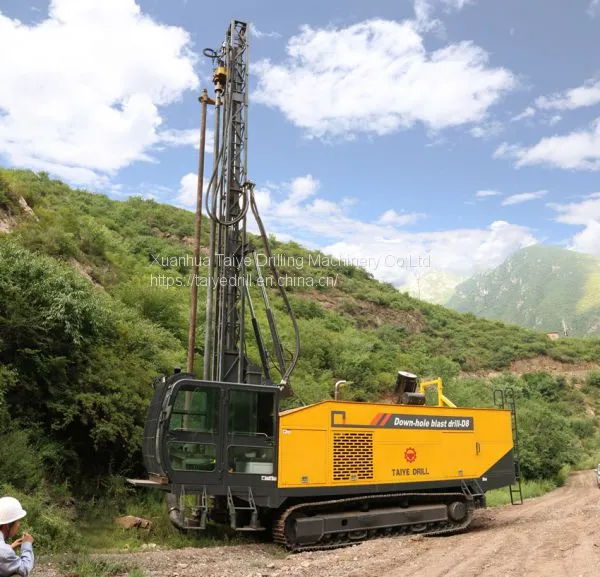

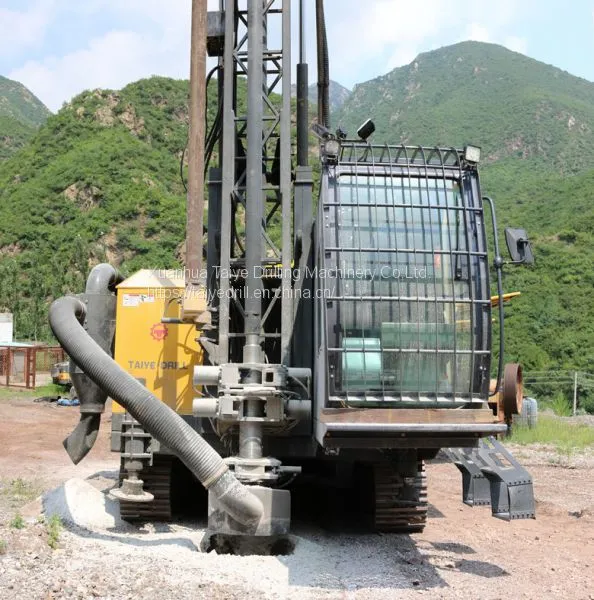

Taiye-D8/D6 Down-the-hole Rotary Blast hole hydraulic drilling rigs
Taiye-D8/D6 open-pit DTH drilling rig is an efficient hydraulic drilling rig,which is suitable for large-bore blasting operation in open-pit mines withi variousrock hardness. Diesel,electric and diesel-electric dual power are suitable for different mine chioces,and the power consumption is reduced to the greatest extent.Submerged hole and cutting are integrated to realize full coverage of hard and soft rock.It has a high drilling frame structure and four-point hydraulic expansion leg suitable for large-scale mining,which has excellent groud adaptability.
| Technical Parameter | D8 | D6 |
| Drilling hole | 203-254mm | 165-203mm |
| Drill rods | 133*8500/133*9000mm | 114*6000/114*7000mm |
| Maximum hole depth | 25000mm | 21000mm |

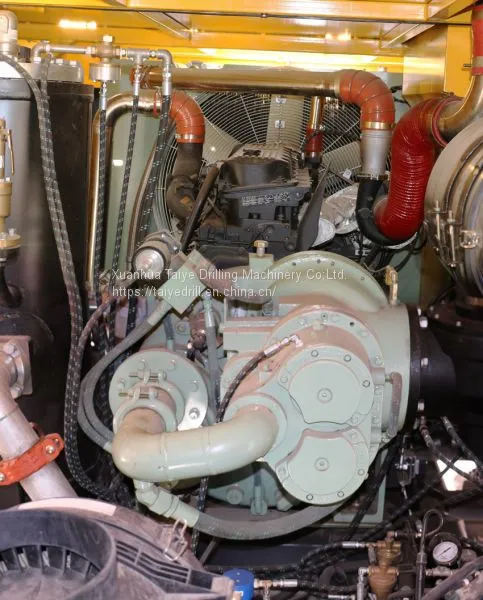

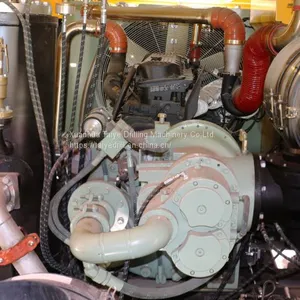

| Compressor manufacturer | Sulliar | Sulliar |
| Volume&Pressure | 31m³/2.4Mpa | 24m³/2.1Mpa |
| Compressor power | 354Kw/1900Rpm | 264Kw/2100Rpm |
| Engine Power | 97Kw | 97Kw |
| Turning speed | 0-90Rpm | 0-110Rpm |
| Turning torque | 6500N.m | 5000N.m |
| Lifting force | 125KN | 40KN |
| Dimensions | 13900*2950*3500mm | 12000*2950*3500mm |
| Weight | 30000kg | 23000kg |

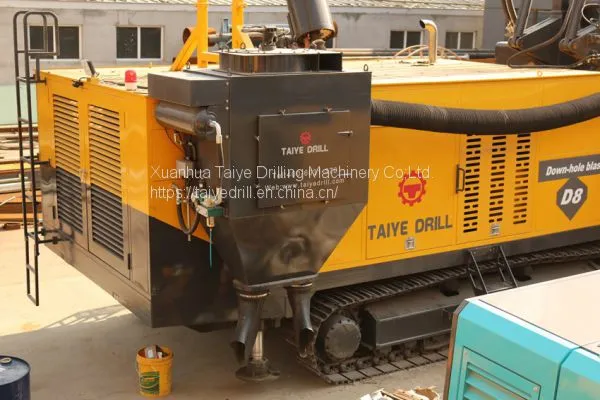

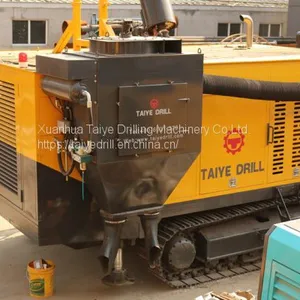

| Dust removal system | Two dust removal schemes(Dry or Wet)for users to selection |
