XYC-200 vehicle-mounted hydraulic core drilling rig
1. Characteristics of XYC-200 vehicle-mounted hydraulic core drilling rig
· XYC-200 is a multi-function vehicle-mounted hydraulic core drilling rig.Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
· It is equipped with high pressure,big flow BW160 mud pump,which can ensure drilling depth and diameter.
· the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
· the hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 vehicle-mounted hydraulic core drilling rig
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil water well
· ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted hydraulic core drilling rig
XYC-200 vehicle-mounted hydraulic core drilling rig | ||
Drilling depth(m) |
30-200 |
|
Drilling diameter(mm) |
300-75 |
|
Drilling angel(mm) |
90-75 |
|
Spindle rotating speed(r/min) |
64/128/287/557 |
|
Spindle stroke(mm) |
450 |
|
|
Main hoisting capacity (single line)(Kg) |
1600 |
|
|
Main hoisting line capacity (m) |
35 |
|
Hoisting speed(r/s) |
17/35/75/151 |
|
Wireline diameter(mm) |
12.5 |
|
Mast height(mm) |
7000 |
|
Mast effective height(mm) |
6500 |
|
Kelly/active pipe(mm) |
59*53 |
|
Drill rod(mm) |
42/50/60 |
|
Drill rig weight(kg) |
1150 |
|
Power unit |
Model |
ZS1115 diesel engine |
Rated power |
14.7kw/2200rpm |
|
|
BW-160 mud pump |
Rated flow(l/min) |
160 |
Rated pressure(mpa) |
1.3 |
|
Driving power(kw) |
5.15 |
|
|
Main machine weight (kg) |
190 |
|
Dimension(mm) |
1110*725*965 |
|
Chassis |

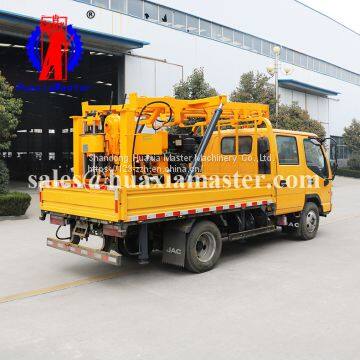

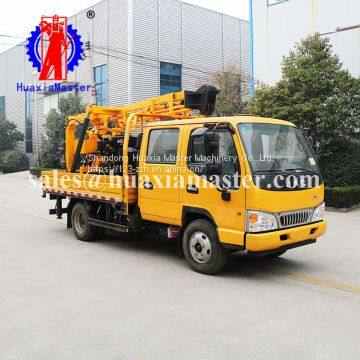

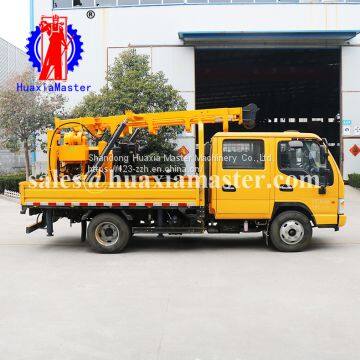

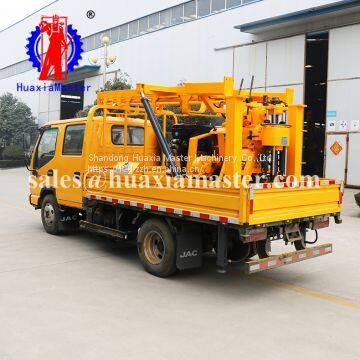

light truck(Pictures of vehicle-mounted drilling rigs for reference only) |
|
