Product Details
Brand Name: | Huaxia master | Place of Origin: | China | Model Number: | XY-150 |
Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Overseas service center available |
Warranty: | 6 months | Weight: | 610kg | Power Type: | Electric |
Usage: | Water Well | Condition: | New | Power(W): | 11KW |
Product Description

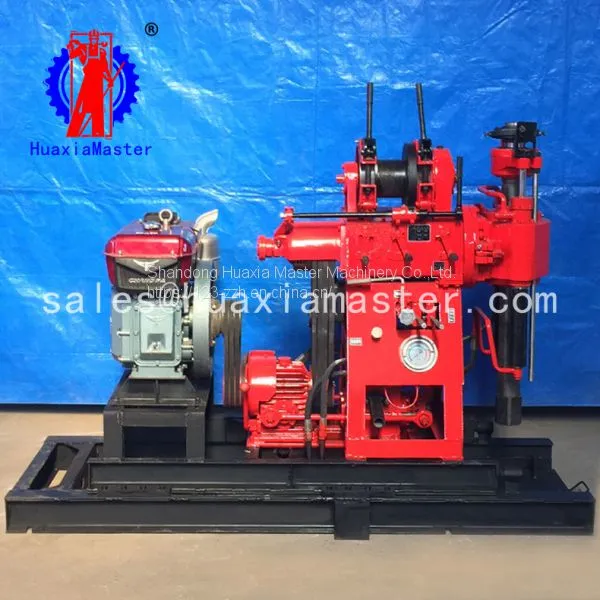

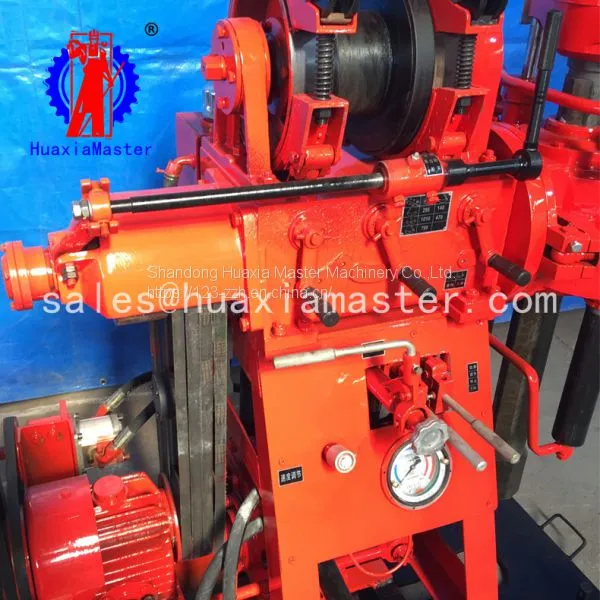

XY-150 hydraulic core drilling rig
1. Applications of XY-150 hydraulic core drilling rig
· geological survey
· geophysical exploration
· road and high-rise building foundation exploration
· water wells
· blasting holes and other drilling projects
2. Parameters of XY-150 hydraulic core drilling rig
Drilling depth(m) | 150 |
Maximum opening diameter(mm) | 219 |
The final hole diameter(mm) | 73 |
Rod diameter(mm) | 42/50 |
Spindle speed (r/min) | 140/295/470/790/1010 |
Spindle stroke(mm) | 450 |
Hoisting capacity (kn) | 14 |
Steel wire diameter(mm) | 9.3 |
Maximum pressure (mpa) | 1.2 |
Working pressure (mpa) | 0.7 |
displacement(l/min) | 150 |
Hydraulic pump pressure (mpa) | 1.2 |
Hydraulic pump rotation speed (r/min) | 1800 |
Matched driving power (diesel engine and motor) | S1105 diesel engine and 11kw motor |
